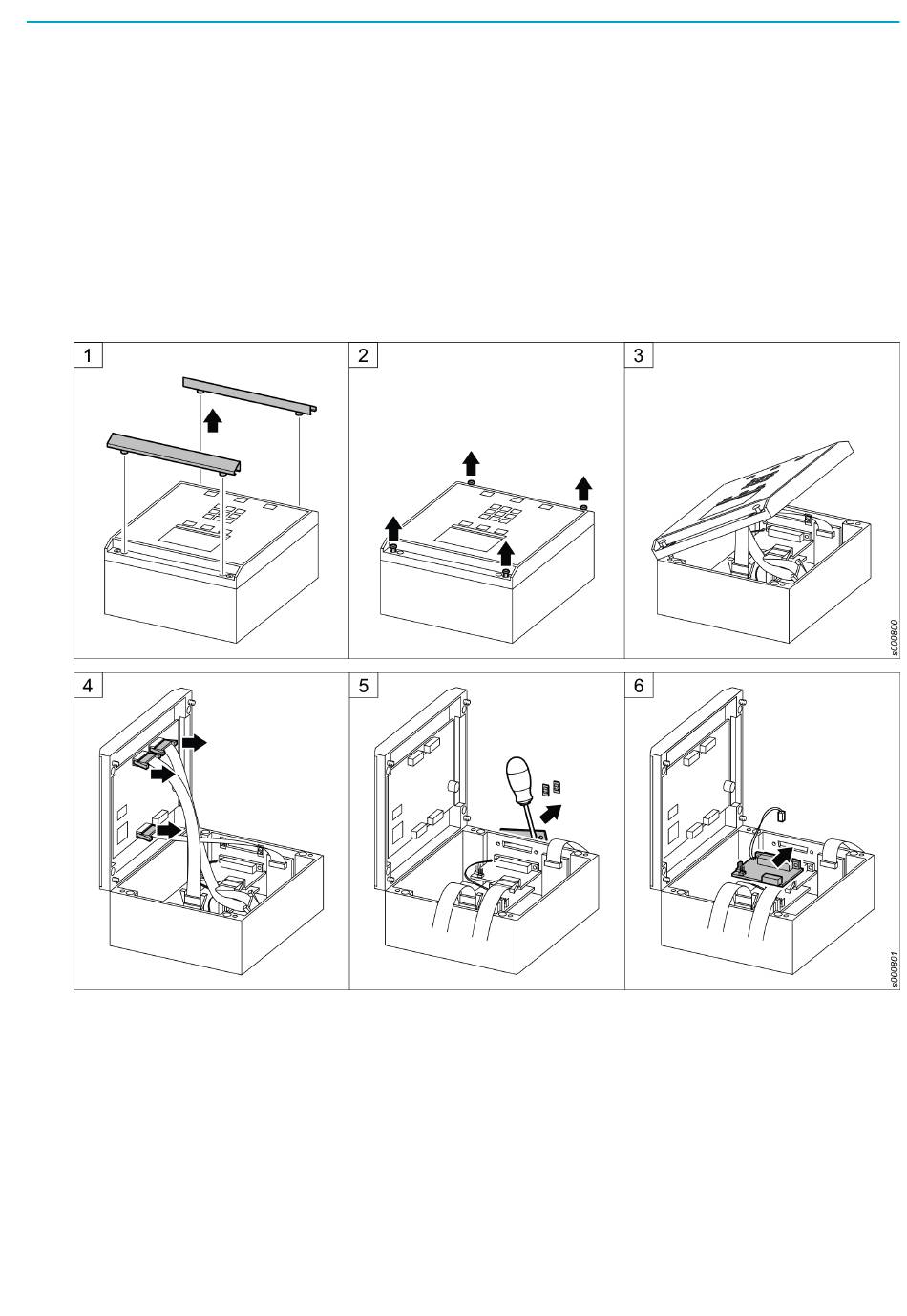

TPS Control
9.
Connect the paired cable from the additional I/O board into the available slots on the connector on the
lower board.
10.
Connect the flat band cable between the two I/O boards.
11.
Connect the flat band cable from the side-mounted encoder board to the connector on top of the main
board.
12.
Connect the flat band cable from the lower board to the rightmost connector on the main board.
13.
Connect the flat band cable from the I/O boards to the leftmost connector on the main board.
14.
Put the front panel back in the controller casing.
15.
Tighten the front panel with the screws.
16.
Put the protective strips back on the front panel.
