1.

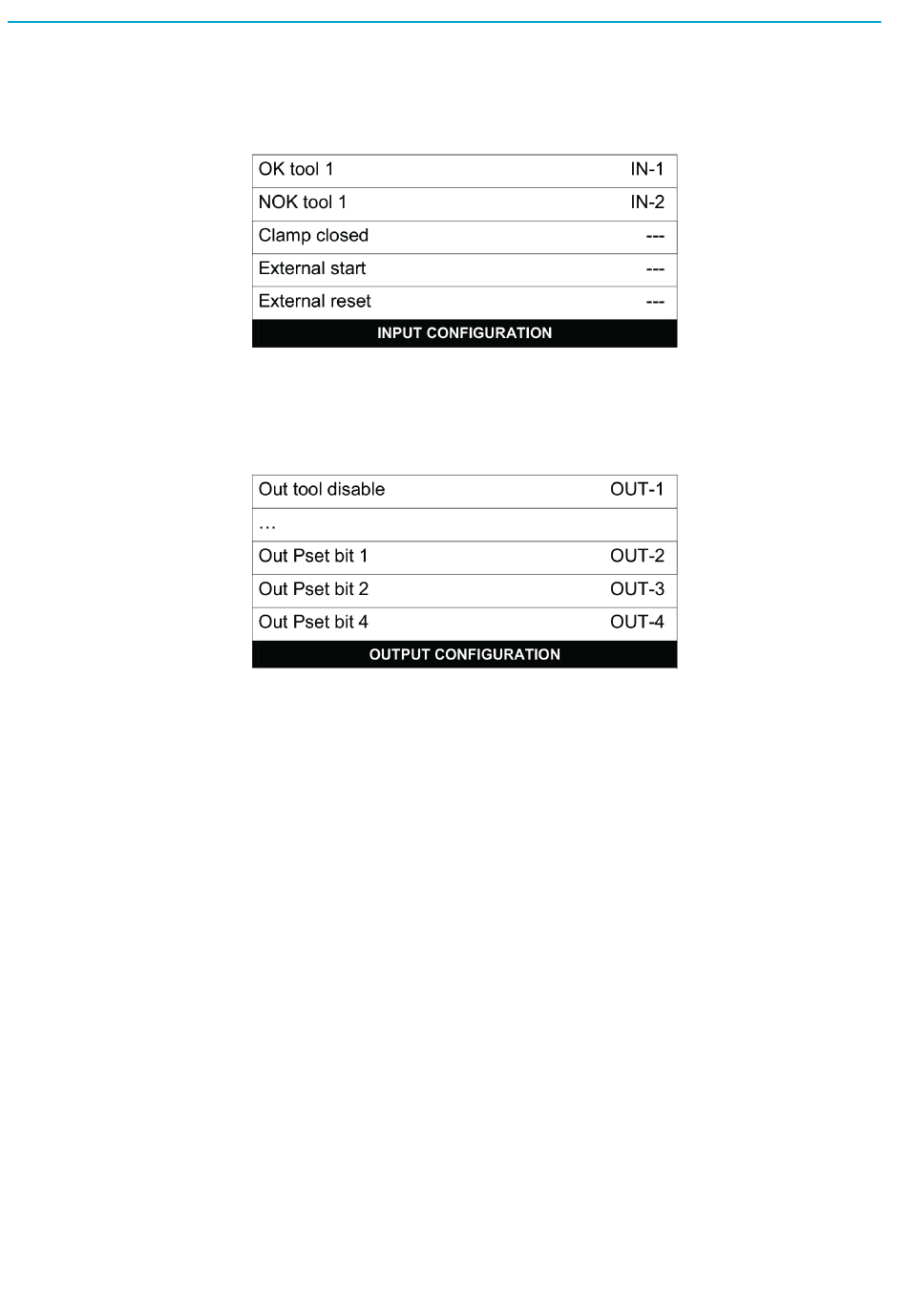

Go to Menu>Setup>Input Configuration and set the signals and inputs matching the output signals
set up in PF.
2.
Press VAL to confirm the selection.
3.
Press ESC to leave the menu.
4.
Go to Output Configuration and set the signals matching the input signals set up in PF.
5.
Press VAL to confirm the selection.
6.
Press ESC to leave the menu.
Connecting to Tensor DS Drive D312 or DL Drive D313
This section describes how to configure Tensor DS/DL Drive D312/D313 and TPS Control to set up com-
munication between the controllers. Tensor DS/DL Drive D312/D313 has four relay contacts (outputs) and
four inputs that can be used for communication with TPS. All inputs and outputs can be configured using
the ToolsTalk software. For a complete instruction of ToolsTalk DSDL, see the applicable Tensor DS/DL
Drive D312/D313 user guide.
Note! This section describes an example of how to configure the tool controller and TPS. Depending on
the type of operation you may need to set the inputs and outputs to other values.
1.
Check that the digital I/O cable is connected to the TPS and Tensor.
2.
Check that a PC with the ToolsTalk software installed is connected to Tensor.
In ToolsTalk DSDL
1.
Select Configuration in the menu Window. A new window appears.
2.
Select I/O Setup.
3.
Set Select Source to Digital Inputs.
4.
Set input and output signals as seen in the figure below.
