User guide
2.
Press VAL to confirm the selection.
3.
Press ESC to leave the menu.
4.

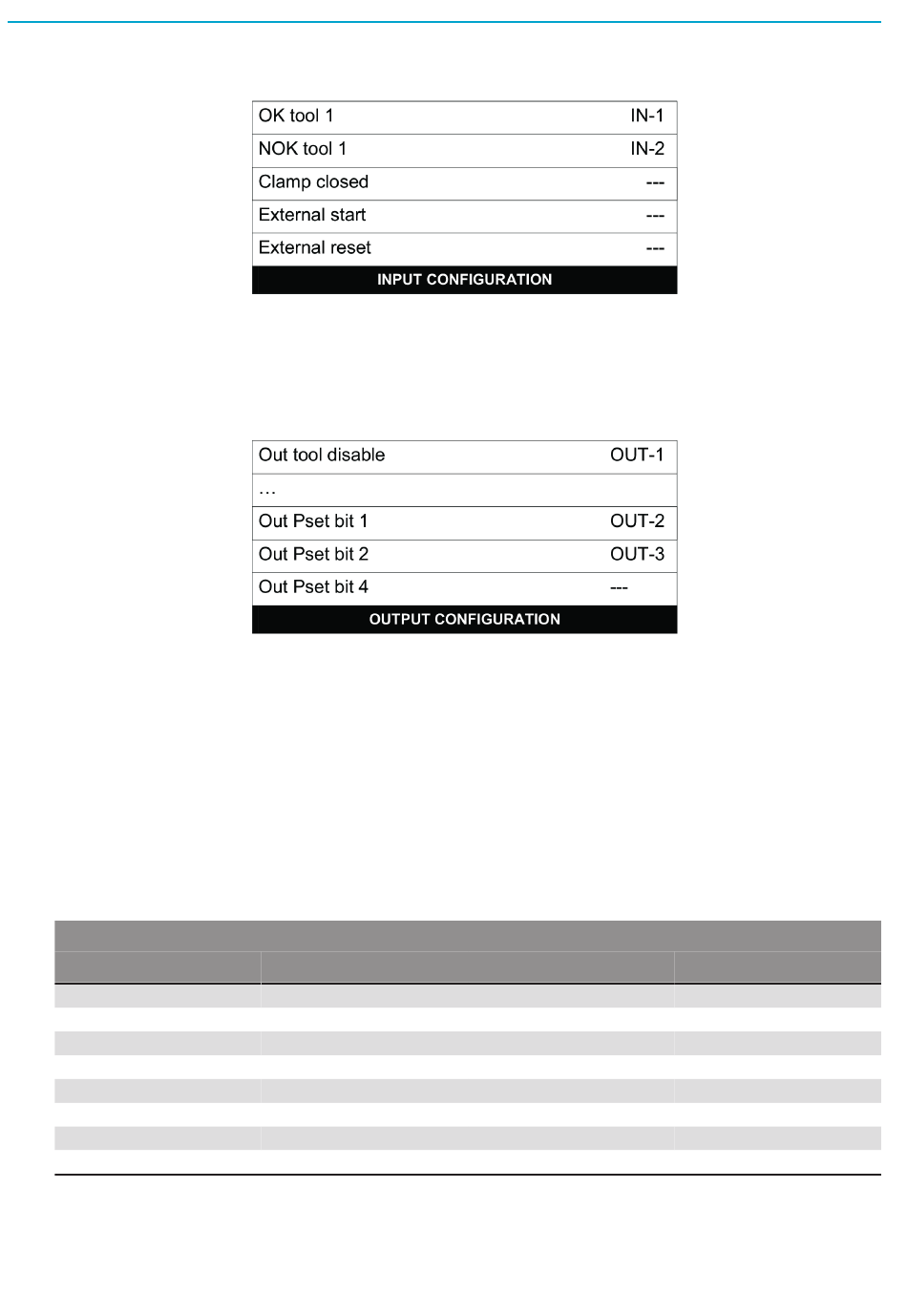

Go to Output Configuration and set the output signals matching the input signals in the tool con-
troller.
5.
Press VAL to confirm the selection.
6.
Press ESC to leave the menu.
Connecting to EBL RE-Drive
This section describes how to configure EBL RE-Drive and TPS Control to set up communication between
the controllers. All digital inputs and outputs can be configured in the EBL RE-Drive controller. For a com-
plete instruction of EBL RE-Drive, see the applicable EBL user guide.
Note! To ensure that the TPS works properly with EBL RE-Drive, the F3 button in EBL must be pro-
grammed with Screwdriver operation set to OFF.
1.
Check that the digital I/O cable is connected to TPS and EBL RE-Drive as described in the table be-
low.
TPS Controller
Pin
2
3
5
6
13
14
17
18
For more information about EBL RE-Drive connections, see the applicable EBL RE-Drive User Guide.
In EBL RE-Drive controller
1.
Hold the F1 button depressed.
22
EN
Signal
Out-1
Out-2
IN-2
IN-4
GND 24 V
+24 V
IN-1
IN-3
© Atlas Copco Industrial Technique AB - 9836 5819 01
EBL RE-Drive
Cable color
Yellow
Brown
White
Purple
Black
Red
Blue
Gray
TPS Control
Connector
SET
RESET
Not used
Not used
GND
+DC24V
COMP
Not used
