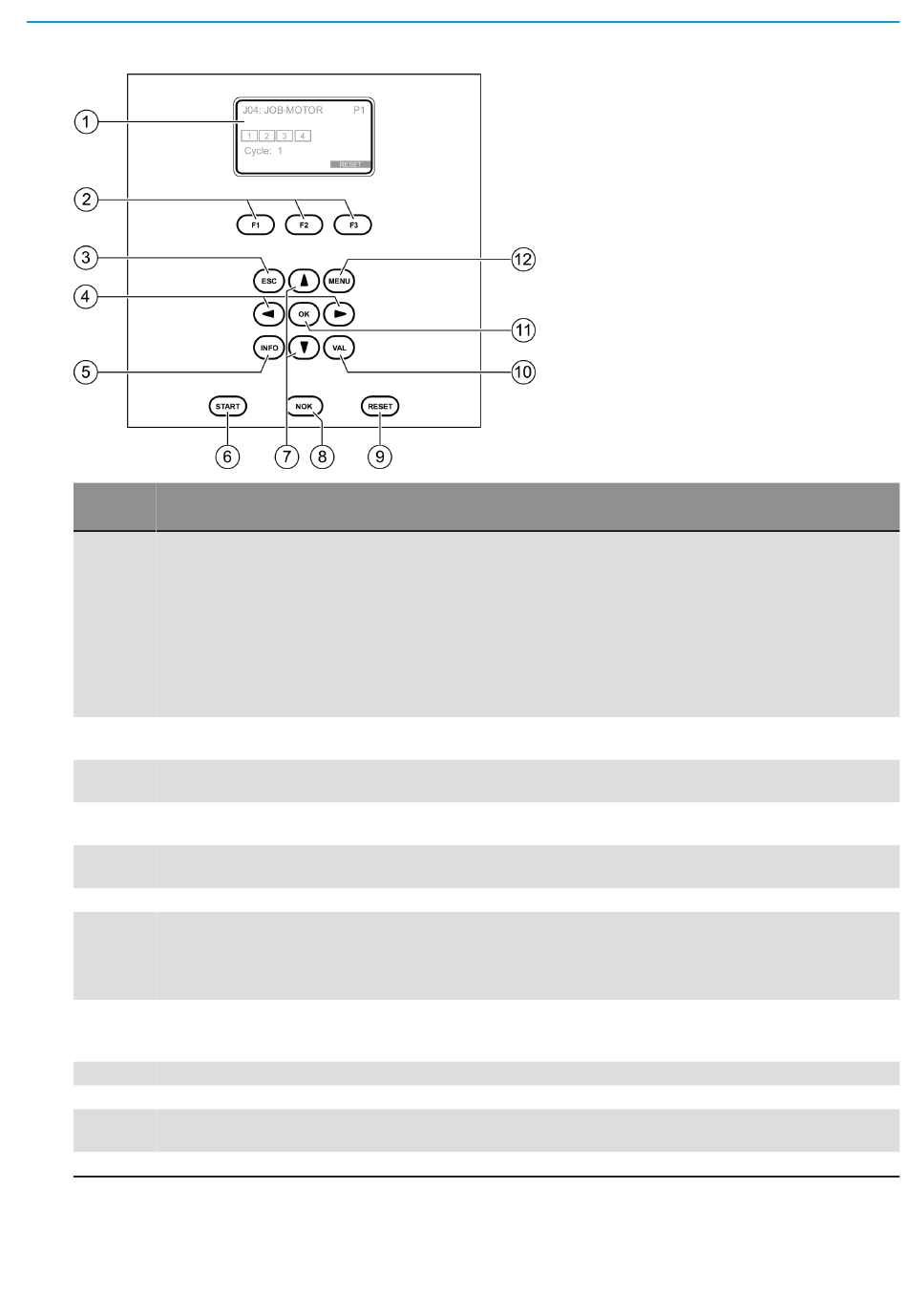

TPS Control
Number Part
1 Display
2 Function keys
3 ESC
4 Left/Right arrow key
5 INFO
6 START
7 Up/Down Arrow keys
8 NOK
9 RESET
10 VAL
11 OK
12 MENU
EN
Description
The front panel has a configurable display. A power-save function de-
activates the backlight on the display if it is not used for a user-defined
period of time (in minutes).
The display is divided into three segments:
■
Upper part shows the last selected job/current job.
■
Middle part shows status information about ongoing operations.
■
Lower part shows the menu alternatives that can be accessed us-
ing the function keys.
Soft keys which function according to what is displayed on the display
screen.
Use this key to cancel any ongoing jobs or parameter settings. When
cancelling parameter settings, no changes are stored in memory.
Use these keys to display parameter options or to create/remove posi-
tions when programming new jobs.
Press this key to get information about the TPS Control device ID,
firmware version and activated licensed functions.
Use this key to start selected job.
When in parameter list, use these keys to go up or down in the list to
select a desired parameter.
For selected parameter, use the up/down arrow keys to change the op-
tions of the parameter.
Use this key to release the tool after a position has resulted in NOK
state and the tool is disabled. This is only used if parameter NOK ac-
knowledge has been set to ON.
Use this key to stop the ongoing job during any time of the procedure
Use this key to validate and store all changed parameters in memory
Use this key to open the list with possible options for a selected param-
eter or confirm the selected option for the parameter.
Use this key to enter the setup menu parameters
