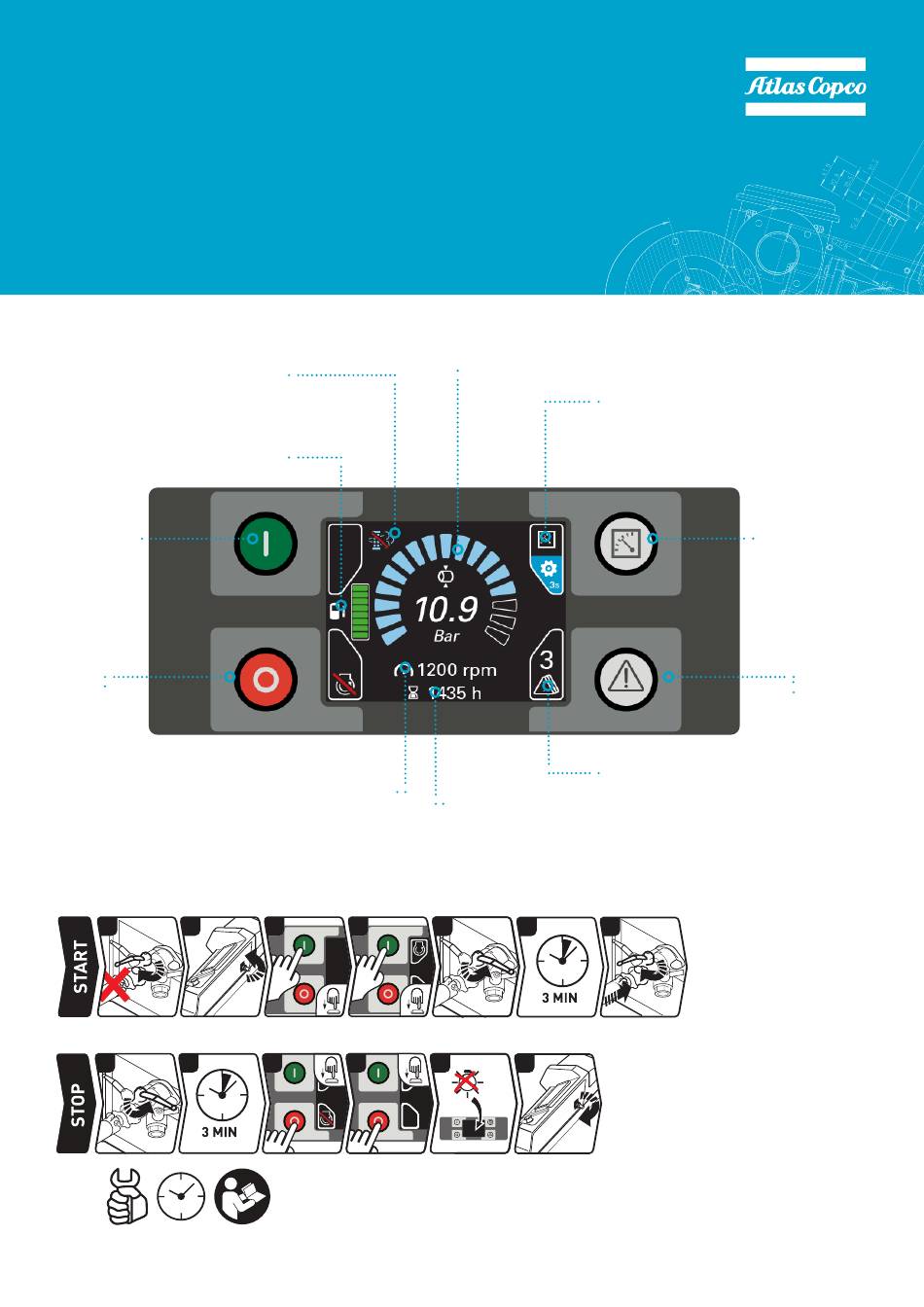

Introducing your
Xc1004 controller
The Xc1004 has a self-explanatory interface, with buttons that change
function as you browse through the menus. The icons in the four corners
explain the active function of every button. To access advanced
settings, press and hold the measurements button for 3 seconds.
Status icons
show depending on your
compressor's features
Fuel level indicator,
only available with fuel
level sensor
Start button
Stop button
One additional measurement
is always visible. This changes depending
on machine features. Actual RPM, requested
RPM, vessel pressure, regulating pressure,

Starting your compressor with the Xc1004

2
1
1 2
24 h
Pressure gauge
is always visible in the main view.
temperatures, etc
3
4
ON
1
3 4
1
This Quick Start Guide helps you to get up and running in no time. However, this document does not
replace the Instruction Manual delivered with the machine. Always read the instruction manual for the
correct use, safety precautions and guidelines on preventive maintenance of your equipment.
Keep the manual with the compressor, so any operator has quick access to the document.
Running hours
are always visible
5 5 6
2
5
6
2
OFF
Icons in the corners
indicate the current function of
a button. Press the button for 3
seconds to access the settings menu
Measurement
Alarm button
Alarm icons
indicates number of active alarms.
Press the button to cycle
through them.
7
button
