User guide
3.

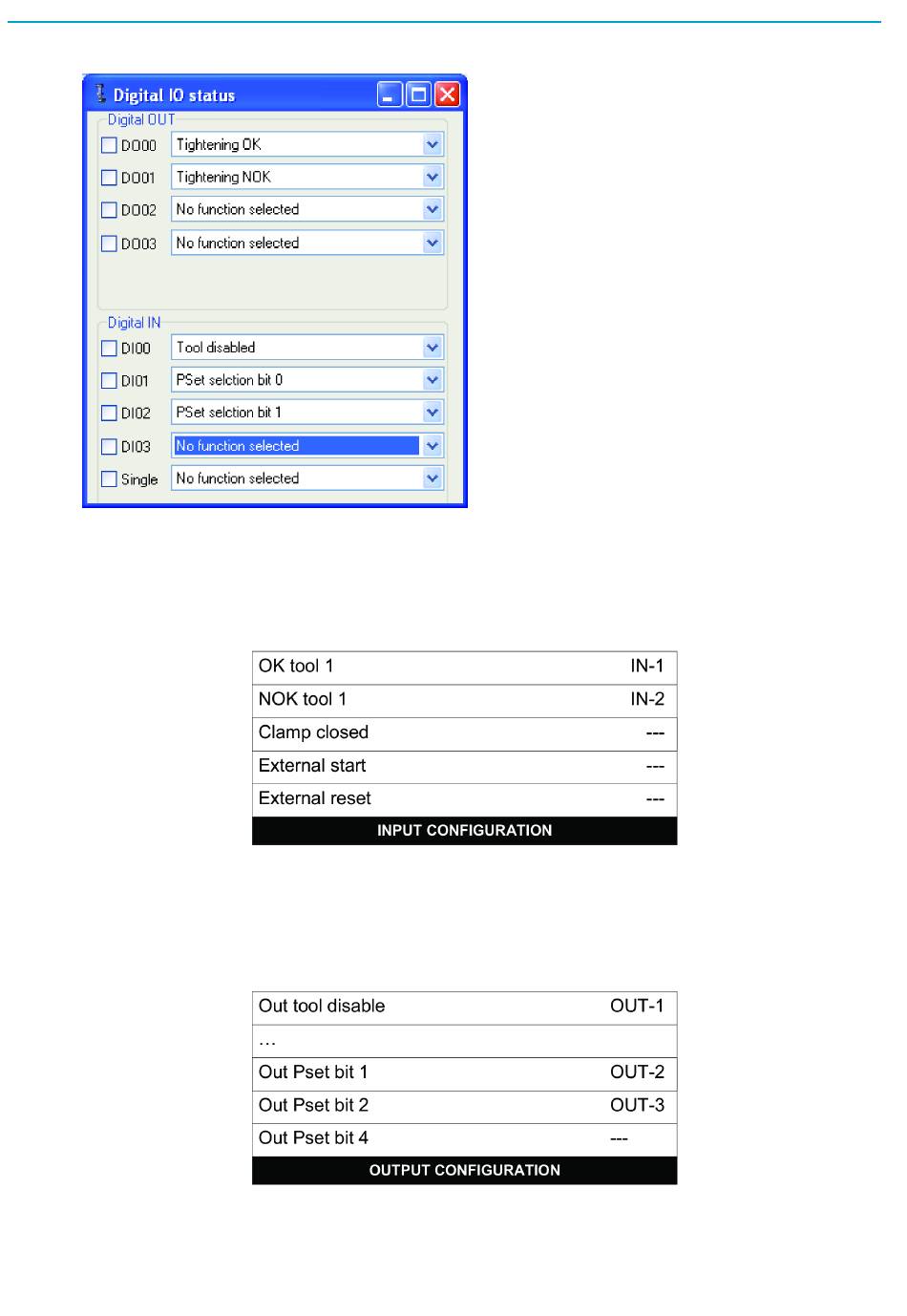

Click Save to controller to store all selected values in the controller.
In TPS Control
1.
Go to Menu>Setup>Input Configuration and set the input signals matching the output signals set up
in ToolsTalk MT.
2.
Press VAL to confirm the selection.
3.
Press ESC to leave the menu.
4.
Go to Output Configuration and set the output signals matching the input signals in the tool con-
troller.
5.
Press VAL to confirm the selection.
6.
Press ESC to leave the menu.
