User guide
6.

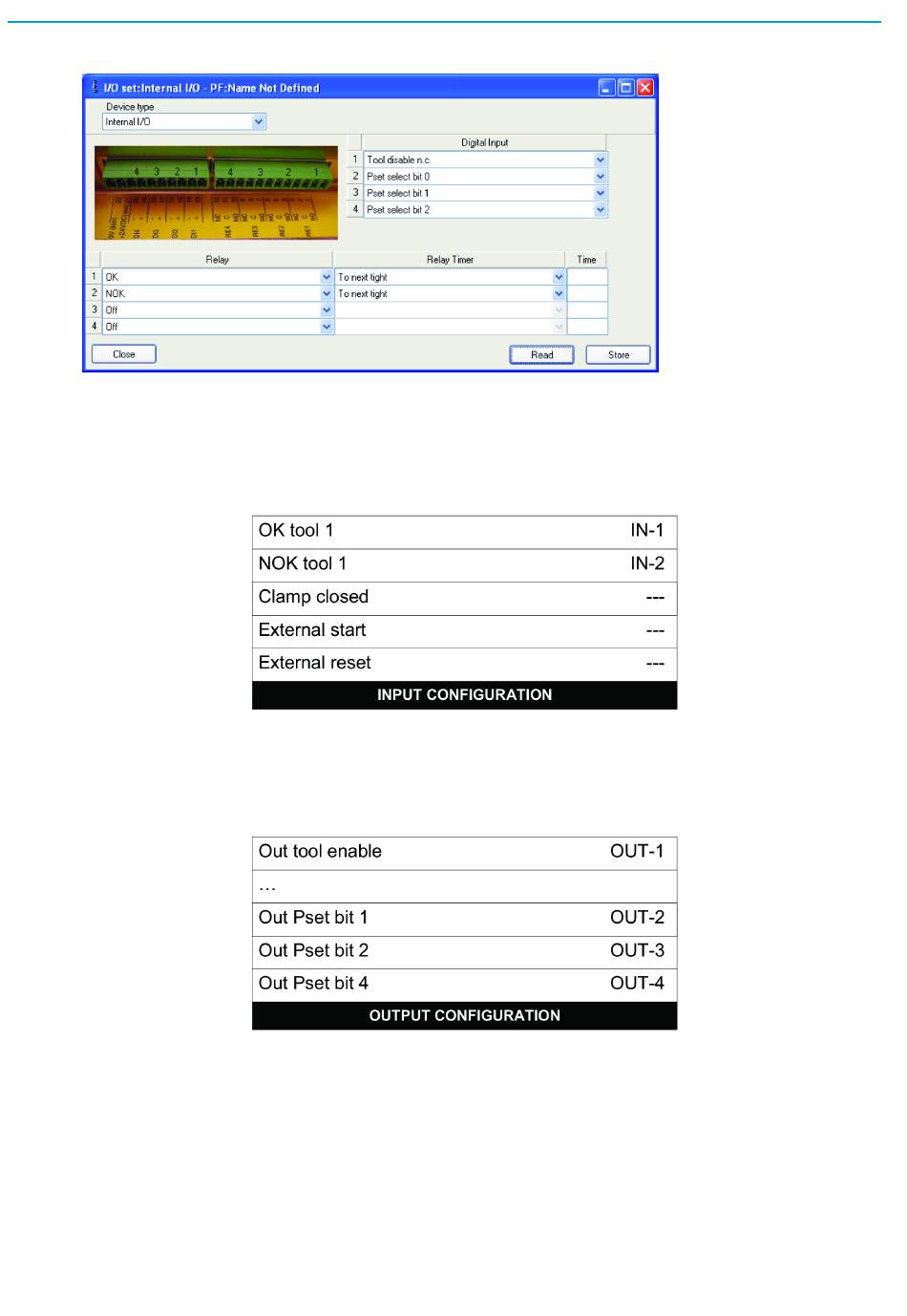

Click Store to store all selected values in memory.
In TPS Control
1.
Go to Menu>Setup>Input Configuration and set the signals and inputs matching the relay signals
set up in ToolsTalk PF.
2.
Press VAL to confirm the selection.
3.
Press ESC to leave the menu.
4.
Go to Output Configuration and set the signals matching the input signals in the ToolsTalk PF.
5.
Press VAL to confirm the selection.
6.
Press ESC to leave the menu.
Connecting to Power Focus 600/Power Focus 6000
This section describes how to configure Power Focus 600/Power Focus 6000 and TPS Control to set up
communication between the controllers. Power Focus has four relay contacts (outputs) and four inputs
that can be used for communication with TPS. The Power Focus 600/Power Focus 6000 controller soft-
ware is configured trough a web interface or the keypad. For a complete instruction of the Power Focus
600/Power Focus 6000 controller software, see the applicable Power Focus user guide.
