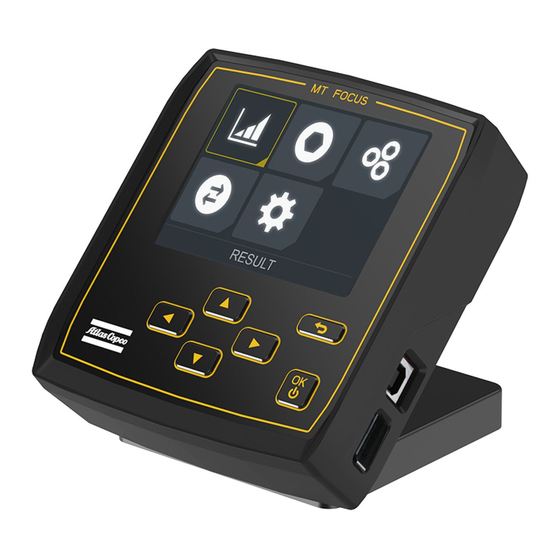

Control and drive unit
Configuration Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT Focus 6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlas Copco MT Focus 6000

  • Page 1 MT Focus 6000 Printed Matter No. 9839 0527 01 Control and drive unit Publication Date 2022-02-04 Valid for Version No. 2.0.2 Configuration Manual MT Focus 6000 8432085100 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 2: Table Of Contents

    Measurement view ................ 9 Multiple result view ................ 9 Tightening ....................... 10 Batch sequence .................... 10 Import/Export via USB .................. 11 Configuration .................... 11 Logging in and out of the controller .............. 12 Login/Reboot menu .................. 12 Shortcuts...................... 13 Icons ....................... 13 © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 3: Liability

    Ensure that the joint conditions have not changed due to events of influence. ■ Be done after initial installation, maintenance or repair of the equipment. ■ Occur at least once per shift or at another suitable frequency. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 4: Configuration Overview

    In some cases you can use the back button to cancel a selection. OK button Press the OK button to confirm a selection. Hold the OK button to open the lo- gin/reboot menu. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 5: User Interface

    MT Focus 6000 Configuration overview User interface Results Tightening Batch sequence Import/Export via USB Configuration © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 6: Connectors

    Vacuum pump: A vacuum can be connected through VP port. ■ Single USB flash drive: A USB flash drive can be inserted into the USB Host port. ■ USB hub: © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 7 Do not connect more than one USB flash drive, because only one USB flash drive can be detected by the MTF 6000. The total maximum current of the connected devices is 900 mA. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 8: Settings

    Red - failed. ■ Peak torque for each step. ■ Angle for each step. ■ Time for each step. ■ Max. peak torque of the tightening. ■ Total angle. ■ Total time. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 9: Torque/Angle Graph

    Verification progress count: x/y to display current progress. if no verification size is set the controller will display an infinity symbol. ■ Live reference torque. Multiple result view The multiple result view is a summary of all the results in the verification. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 10: Tightening

    Batch sequences are used to perform a specified number of tightening, event and information steps in a specific order. Description Select Batch sequence Select a Batch sequence. Reset Batch Resets the current batch. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 11: Import/Export Via Usb

    Show detailed information on the connected tool. Connection information Show detailed information on connected devices, such as ToolsNet, USB, Open protocol and Fieldbus. IP configuration Settings to view and edit the IP configurations. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 12: Logging In And Out Of The Controller

    Log in user by entering a PIN code. Select source Change active select source: ■ Controller ■ Protocol/TTMT ■ Digital I/O ■ Scanner ■ Fieldbus Standby Set controller in standby mode. Reboot Reboot controller. © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 13: Shortcuts

    Controller is connected to ToolsTalk MT Controller is connected to ToolsNet 8 Controller is not connected to ToolsNet 8 USB Sync connection is active Controller is connected to QA Supervisor © Atlas Copco Industrial Technique AB - 9839 0527 01...
  • Page 14 An information/event popup is active but minimized Ongoing active measurement Battery power 90 - 100 % Battery power 50 - 89 % Battery power 21-49 % Battery power <=20 % Success/Complete/Done Information Warning Error © Atlas Copco Industrial Technique AB - 9839 0527 01...
