User guide

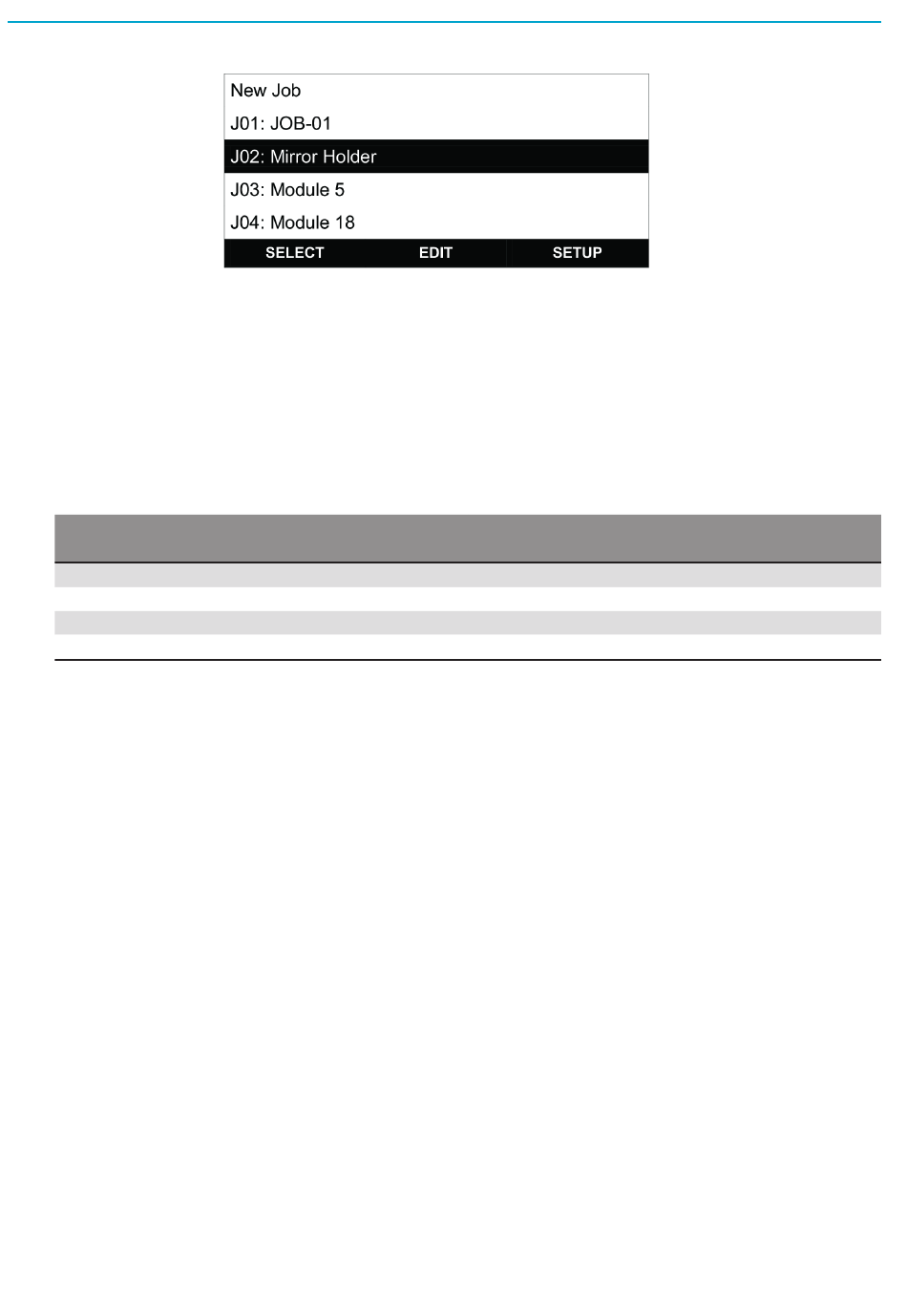

The following options are available from this menu:
■
Existing jobs can be selected with the up/down arrow keys.
■
OK or SELECT (F1) activates the job.
■
The New Job option lets you program a new job.
■
EDIT (F2) lets you edit the selected job.
■
SETUP (F3) displays the Setup menu
■
ESC can be used to exit the menu without making a selection.
The following colour codes are used in the graphical display to indicate the results of the operation:
Colour
Blue
Red
Green (blinking)
Green (steady)
Creating new job
This section describes how to program a new job.
1.
Select New Job to program a new job. The position programming window will appear. Position 1 is
automatically enabled.
2.
Position the tool on the work piece where you want to program position 1. Press POSITION (F1) to
store the position in memory. The inverted box indicates that the position is stored.
3.
By default, Pset 1 is always suggested for the first position.
If Output Pset Selection setup parameters have already been set, you can change the Pset with the
Pset keys.
Use Pset to enter the Pset number that should be transmitted to the screwdriver controller for this po-
sition.
4.
Press the Right Arrow key to program the next position. The value for Pset is always copied from the
previous position but can be changed when necessary.
5.
Repeat steps 2-4 for all positions you want to program. When finished, press VAL to confirm the pro-
grammed positions.
If you want to delete a position during the programming procedure, press the Left Arrow key. The box with
the position will be removed.
Starting existing job
This section describes how to start an already selected job or select and start an existing job from the job
menu.
The display shows the previously selected job or, if a job is activated by an external device, the job cur-
rently selected through the relevant inputs.
1.
To select this job, press START (F1). The job can also be started after an external start signal if the
controller is connected to any external devices. See section Parameters for more details.
28
EN
© Atlas Copco Industrial Technique AB - 9836 5819 01
Description
Position found
Position lost
One sequence element processed correctly
Complete job procedure performed correctly
