- Page 1 POWER FOCUS 6000 POCKET GUIDE Release 2.3 Overview of the Power Focus 6000 and Tensor STR System...
-
Page 2: Table Of Contents
Target Torque Limits ..................26 Settings Menu....................13 Target Angle Limits ..................27 Basic Programming ..................14 Stop Stage ..................... 28 Open Protocol ....................15 Soft Stop ......................29 POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... - Page 3 Gears and Angle head ................34 TOOLSNET 8 ....................... 48 ETT front part .................... 34 Simple setup in combination with Atlas Copco controllers ...... 48 Accessories (attached to the tool (ETV/ETD)) ..........35 Simple Data Analysis ................48 Certifications ....................36 Production Alarms ..................
-
Page 4: System Overview

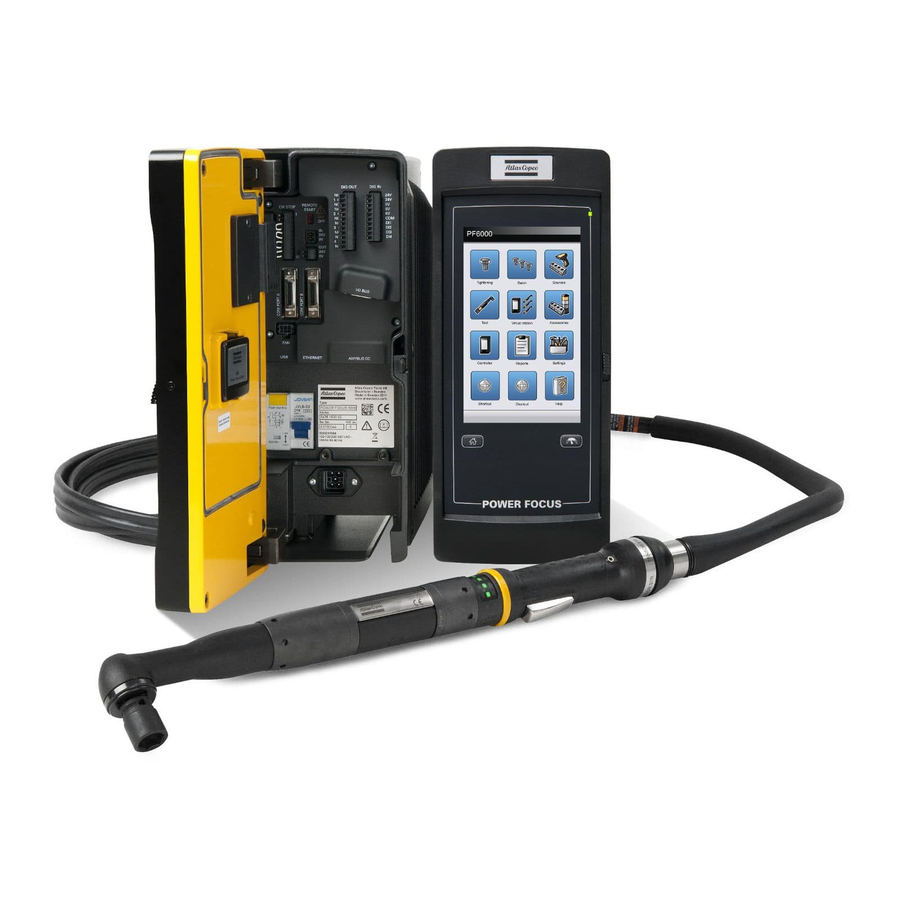

IAM Process+ control For a complete overview of the included functionality please see respective chapter. The Atlas Copco Tensor STR tool is a complete tool designed to work with optimal performance together with the Power Focus 6000 controller. Tensor STR This Tensor power tool is a result of years of research and development to improve productivity and quality without compromising ergonomics. -
Page 5: Accessories And Communication Interfaces
The system connects perfectly to accessories and communication interfaces. Power Focus operates on a single-phase 115 or 230 VAC line voltage. Most handheld tools are supported and the Power Focus 6000 system Power rating 1500 W has full connectivity with our QIF offerings and software products such as ToolsNet 8 or ToolsNet 4000 and ToolsTalk 2. -
Page 6: Communication
Firmware and service logs. • Bluetooth 2.1 (3.0 ready) + EDR (Enhanced Data Rate) wireless technology If needed, this data is easily transferred to other Power Focus 6000 by simply removing and inserting the IAM. • 10/100 Mb/s Ethernet (RJ-45 connector) Firmware updates are secure, as old firmware is kept available. -
Page 7: Power Focus 6000 Software
The Tool menu gives you access to information about the connected tool, perform tool calibration, motor tuning, and set up tool maintenance. POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 8: Basic Programming
For a full overview of what information, or MIDs (Message IDs) and information on each menu item and the revisions, are supported with the Power Focus 6000 please see the Open configuration. Protocol Appendix (picture above) provided in the Marketing and Support Web Portal. -
Page 9: Functionality Management System
CC system and the features functionality available on Power Focus 6000 controllers. FMS is meant as is automatically linked to the customer account in the customer portal. The... -
Page 10: Fms Server Based
FMS Server based FMS USB device/non network based The Atlas Copco FMS functionality is built into ToolsTalk from start making The FMS USB license device is a great option for customers that do not it the best way to distribute virtual stations and features to the individual have the controllers networked and do not have any need for ToolsTalk controllers. -
Page 11: Tightening Strategies
Turbo Tight Tightening Strategy ® discussed in the following chapters. In such cases please contact your local Atlas Copco Tools representative for support. The results are: Turbo Tight ® is the default tightening strategy, designed to perform a very fast and ergonomic tightening based on the tool’s maximum speed (Tool •... -
Page 12: Sustainability
Rundown Complete How does Turbo Tight provide energy savings? ® TIME Pause Time Atlas Copco has been ISO 14001 certified since 2010, ensuring the planning, execution, control and optimization of continuous improvement processes Start Rundown Tightening Stop for all Atlas Copco Industrial Technique products. If we compare the energy... -
Page 13: Quick Step Tightening Strategy
Target speed for the first step Conditioning speed Target speed during the conditioning step Conditioning angle Angle to turn the socket during the conditioning step 180° POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 14: Rotate Strategy
Torque value from where angle limits are set Target speed TIME Angle min Angle value for lower angle limit 90° Start Rundown Tightening Stop Angle max Angle value for upper angle limit 720° POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 15: Stop Stage
Off: No compensation made. On: Manually sets the Torque compensation point. Stop Stage The Stop stage terminates the tightening so that the socket can be released. POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 16: Virtual Stations
• VIN handling • Digital I/O • Excellent graphical concept and very easy to configure • Fieldbus • Batch sequence • Less wiring complexity control • Customer Protocols POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 17: Str Tool
The standard HMI and EHMI is available with or without a button on the reverse ring. POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 18: Motor
The ETT front part differs from other tools in how the transducer is placed after the angle gear and attached to the output shaft. This gives the ETT tools an accuracy of 2,5% over 3s. POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 19: Certifications
E.g. Information concerning Restriction of Hazardous Substances (RoHS) - This product and its information, meets the requirements of the RoHS Directive (2011/65/EU). POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 20: Str Tool Accessories
The tools can easily be fine-tuned to fit the operator preferences or the application by adding tools accessories. The standardized sizes, fits a wide range of Atlas Copco tools. POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 21: Cable Management
CABLE MANAGEMENT Cables are used in conjunction with all Atlas Copco tools and assembly equipment, including: hand held tools, fixtured hand tools or when spindle ”motors only” are provided for incorporation into various types of machine automation. As with many industrial systems, cables are a main failure point – especially in applications where the cables are subject to repetitive motion. -
Page 22: Smaller Bending Radius For Greater Accessibility
Types of cables available Flat cable for greater durability Various types of cables are available from Atlas Copco to suit all kinds of Atlas Copco has been producing assembly Round applications, as illustrated below. tool cables since 1987 and has unrivaled experience in the field. -
Page 23: Centralized Strain Relief To Prevent Lead Damage
Please note that there are a couple of fieldbus types available in the Power Focus 4000 that are not yet implemented on the Power Focus 6000 platform. POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... -
Page 24: Tool Talk 2
Tool Talk 2 is developed from the ground up, to support the new multi- once just by one click. When doing an upgrade ToolsTalk 2 loads the new controller concept delivered in the Power Focus 6000. When the old version controller firmware into the Power Focus 6000 controller but it does not of ToolsTalk was a software tool to configure a single controller activate the new software until you are ready. -
Page 25: Toolsnet 8
PowerMACS controller can be setup as events in the notification software from Atlas Copco. In order to achieve the highest value in the center of ToolsNet 8. After it has been setup, an email will go out to the... -
Page 26: Tool Service Information
• Locate to which controller a tool is currently connected by serial number • Manage custom tool serial numbers in the plant POCKET GUIDE TO POWER FOCUS 6000 SYSTEM POCKET GUIDE TO POWER FOCUS 6000 SYSTEM... - Page 27 COMMITTED TO SUSTAINABLE PRODUCTIVITY www.atlascopco.com...
