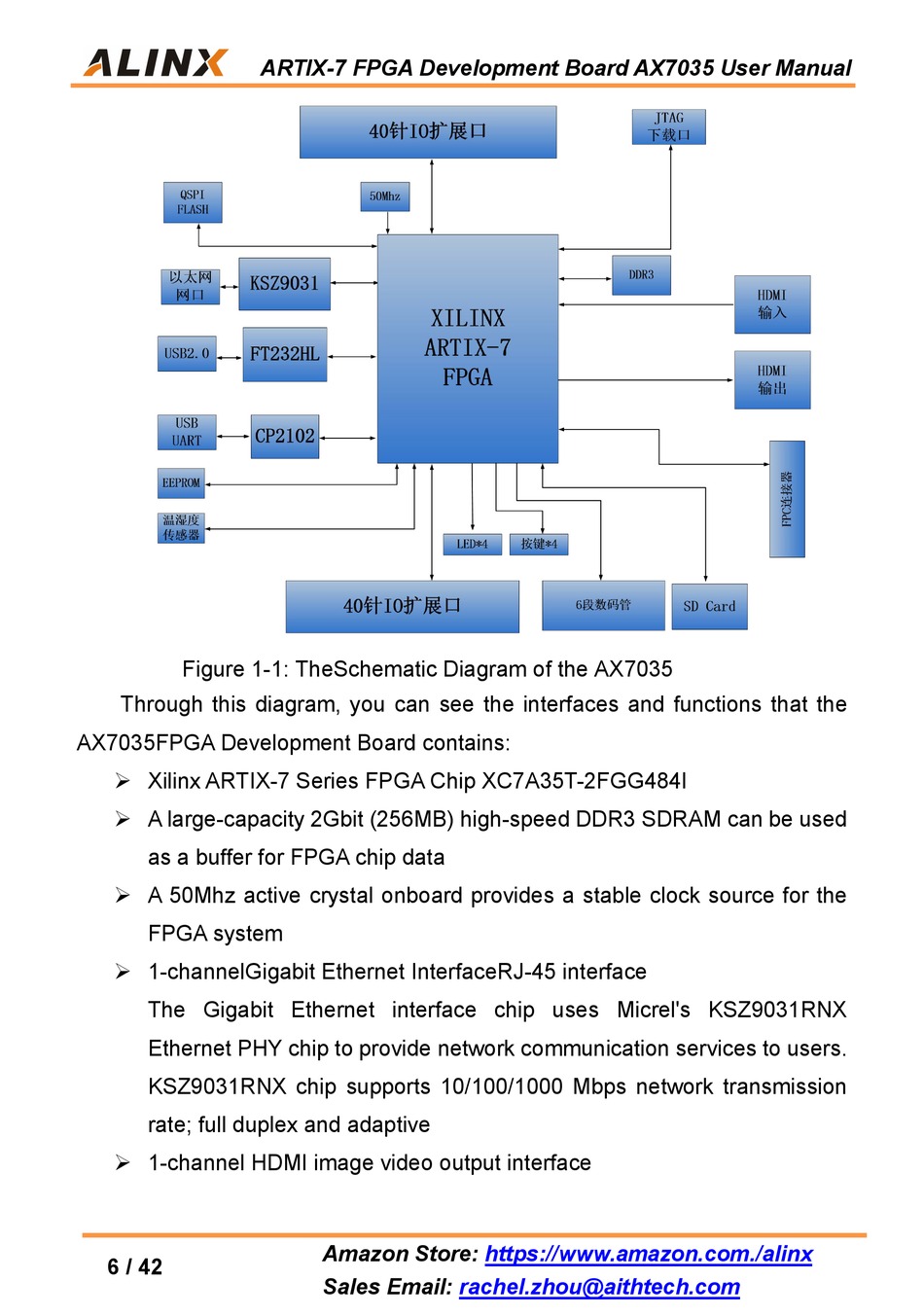

Figure 1-1: TheSchematic Diagram of the AX7035
Through this diagram, you can see the interfaces and functions that the
AX7035FPGA Development Board contains:
 Xilinx ARTIX-7 Series FPGA Chip XC7A35T-2FGG484I
 A large-capacity 2Gbit (256MB) high-speed DDR3 SDRAM can be used
as a buffer for FPGA chip data
 A 50Mhz active crystal onboard provides a stable clock source for the
FPGA system
 1-channelGigabit Ethernet InterfaceRJ-45 interface
The Gigabit Ethernet interface chip uses Micrel's KSZ9031RNX
Ethernet PHY chip to provide network communication services to users.
KSZ9031RNX chip supports 10/100/1000 Mbps network transmission
rate; full duplex and adaptive
 1-channel HDMI image video output interface
