The key is active low. When the key is pressed, the IO input voltage of the
FPGA is low. When no key is pressed, The IO input voltage of the FPGA is high.
The circuit of the key part is shown in Figure 20-1.
Figure 20-2: Reset Key and User Keys on the FPGA Board
Keys Pin Assignment
41 / 42
ARTIX-7 FPGA Development Board AX7035 User Manual

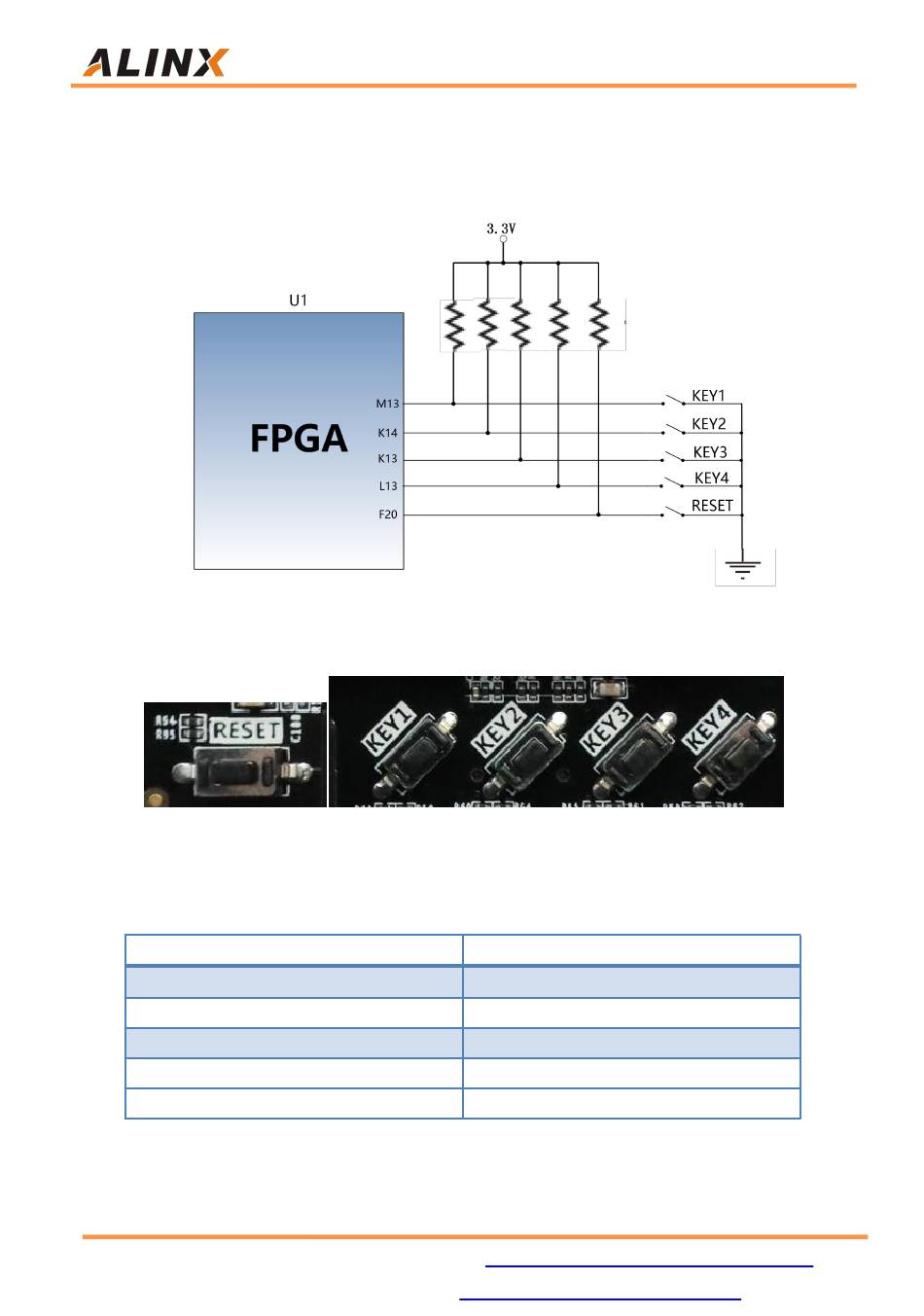

Figure 20-1: Key Schematic
Net Name
KEY1
KEY2
KEY3
KEY4
RESET
Amazon Store:
Sales Email:
FPGA PIN
M13
K14
K13
L13
F20
