ARTIX-7 FPGA Development Board AX7035 User Manual

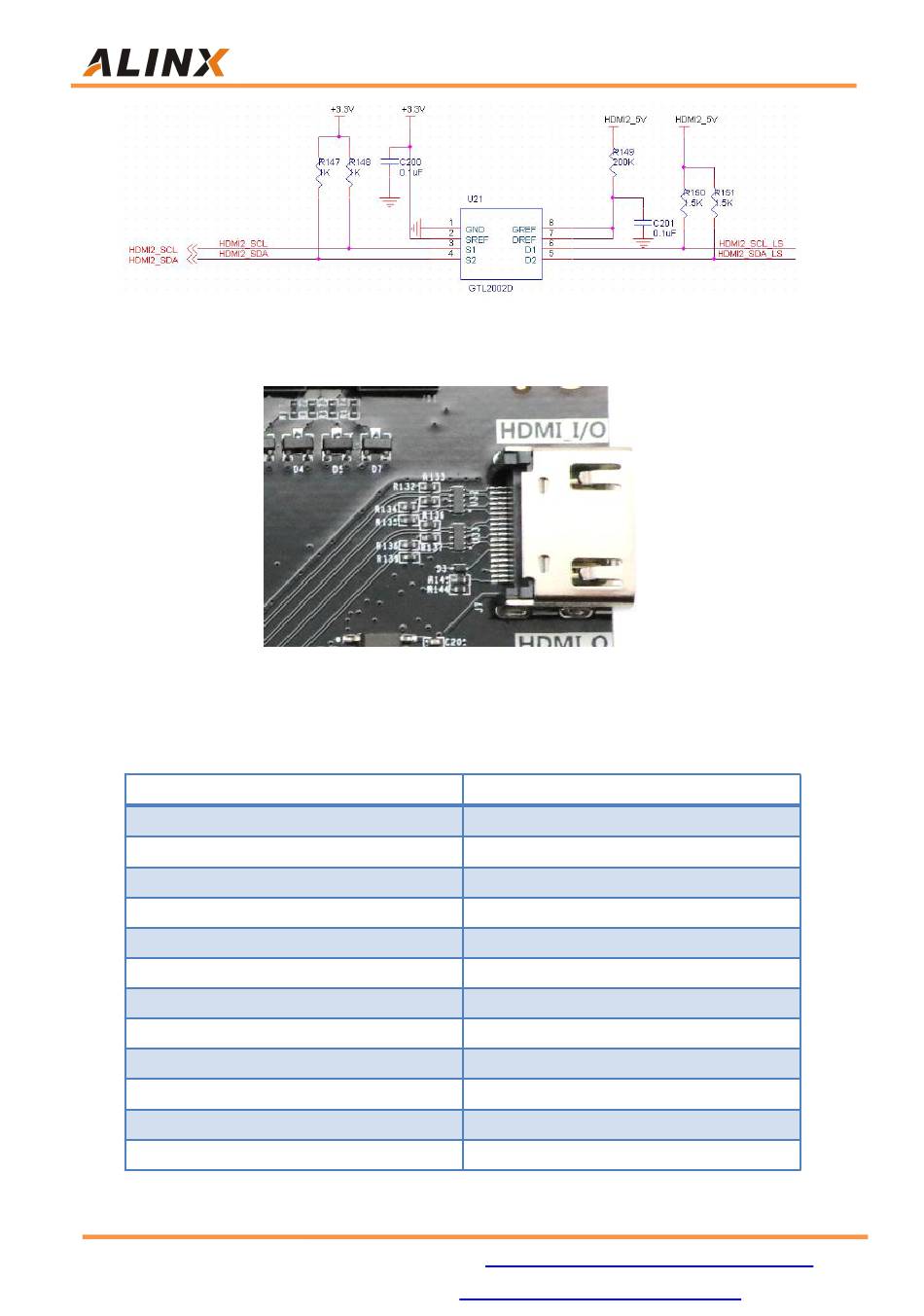

Figure 10-3: GTL2002D level conversion circuit
Figure 10-4: HDMI Input Interface on the board
HDMI Input Interface Pin Assignment
Pin Name
HDMI2_CLK_P
HDMI2_CLK_N
HDMI2_D0_P
HDMI2_D0_N
HDMI2_D1_P
HDMI2_D1_N
HDMI2_D2_P
HDMI2_D2_N
HDMI2_SCL
HDMI2_SDA
HDMI2_OUT_EN
HDMI2_HPD
24 / 42
Amazon Store: https://www.amazon.com./alinx
Sales Email: rachel.zhou@aithtech.com
FPGA Pin
K4
J4
M1
L1
P2
N2
R1
P1
N5
L6
P6
M5
