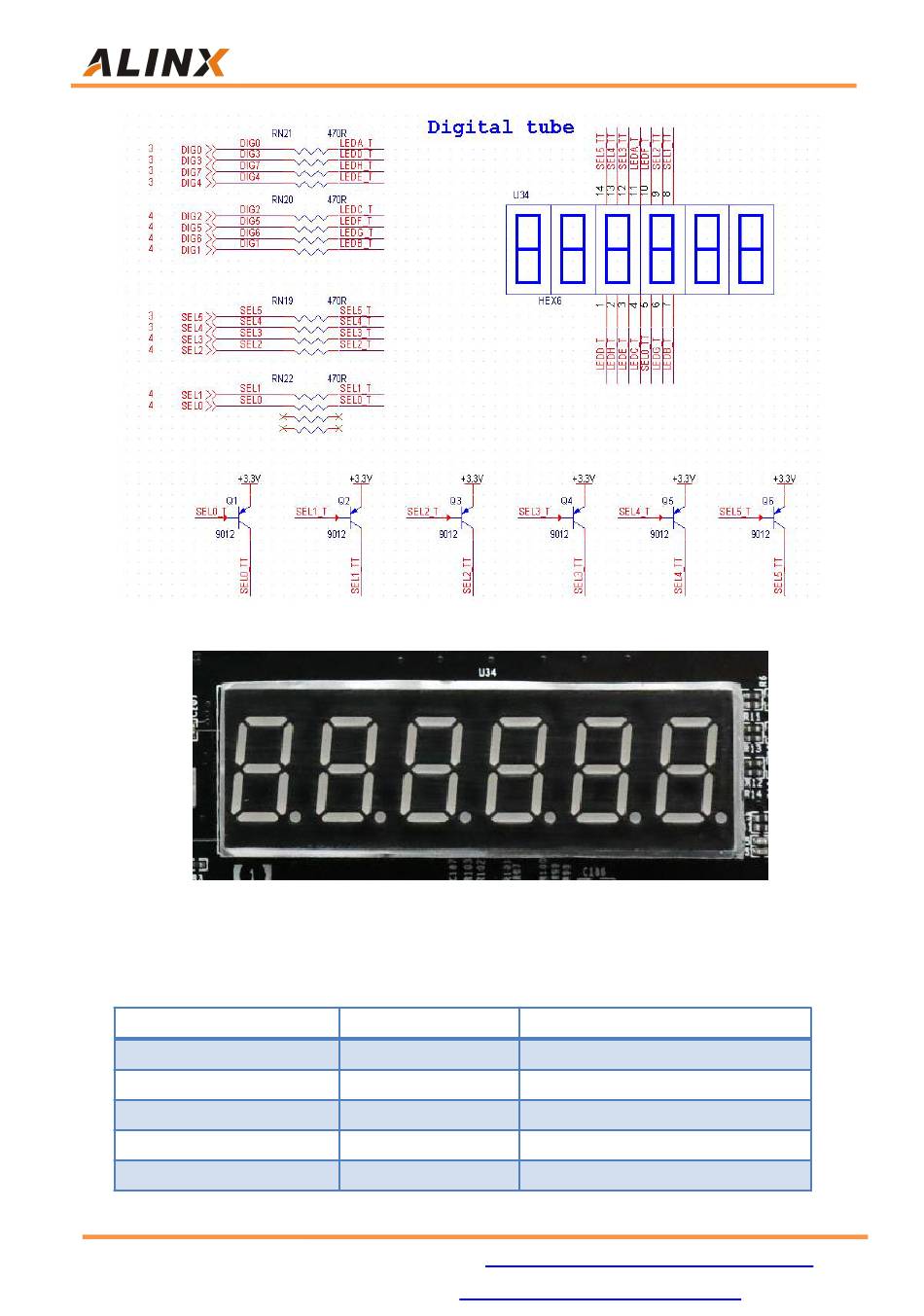

Alinx AX7035 User Manual page 32

Figure 15-3: Digital Tube on the FPGA Board
Digital tube pin assignment
Pin Name
DIG0
DIG1
DIG2
DIG3
DIG4
32 / 42
ARTIX-7 FPGA Development Board AX7035 User Manual
Figure 15-2: Digital Tube Schematic
FPGA Pin
J5
M3
J6
H5
G4
Amazon Store:
Sales Email:
Description
Corresponding segment A
Corresponding segment B
Corresponding segment C
Corresponding segment D
Corresponding segment E
