ARTIX-7 FPGA Development Board AX7035 User Manual

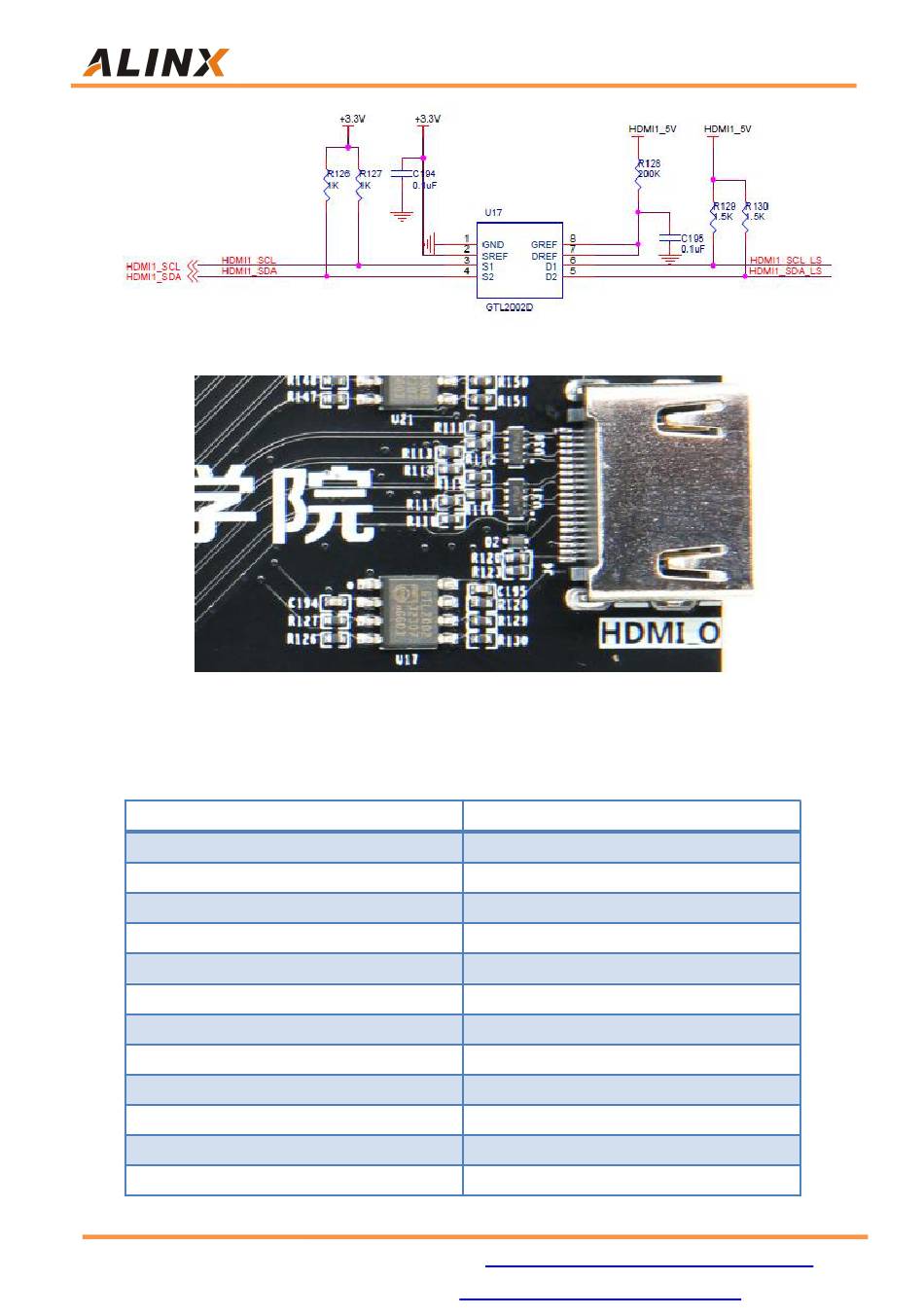

Figure 9-3: GTL2002D level conversion circuit
Figure 9-4: HDMI Output Interface on the FPGA Board
HDMI Output Pin Assignment
Pin Name
HDMI1_CLK_P
HDMI1_CLK_N
HDMI1_D0_P
HDMI1_D0_N
HDMI1_D1_P
HDMI1_D1_N
HDMI1_D2_P
HDMI1_D2_N
HDMI1_SCL
HDMI1_SDA
HDMI1_OUT_EN
HDMI1_HPD
21 / 42
Amazon Store: https://www.amazon.com./alinx
Sales Email: rachel.zhou@aithtech.com
FPGA Pin
E1
D1
G1
F1
H2
G2
K1
J1
P4
N3
M6
P5
