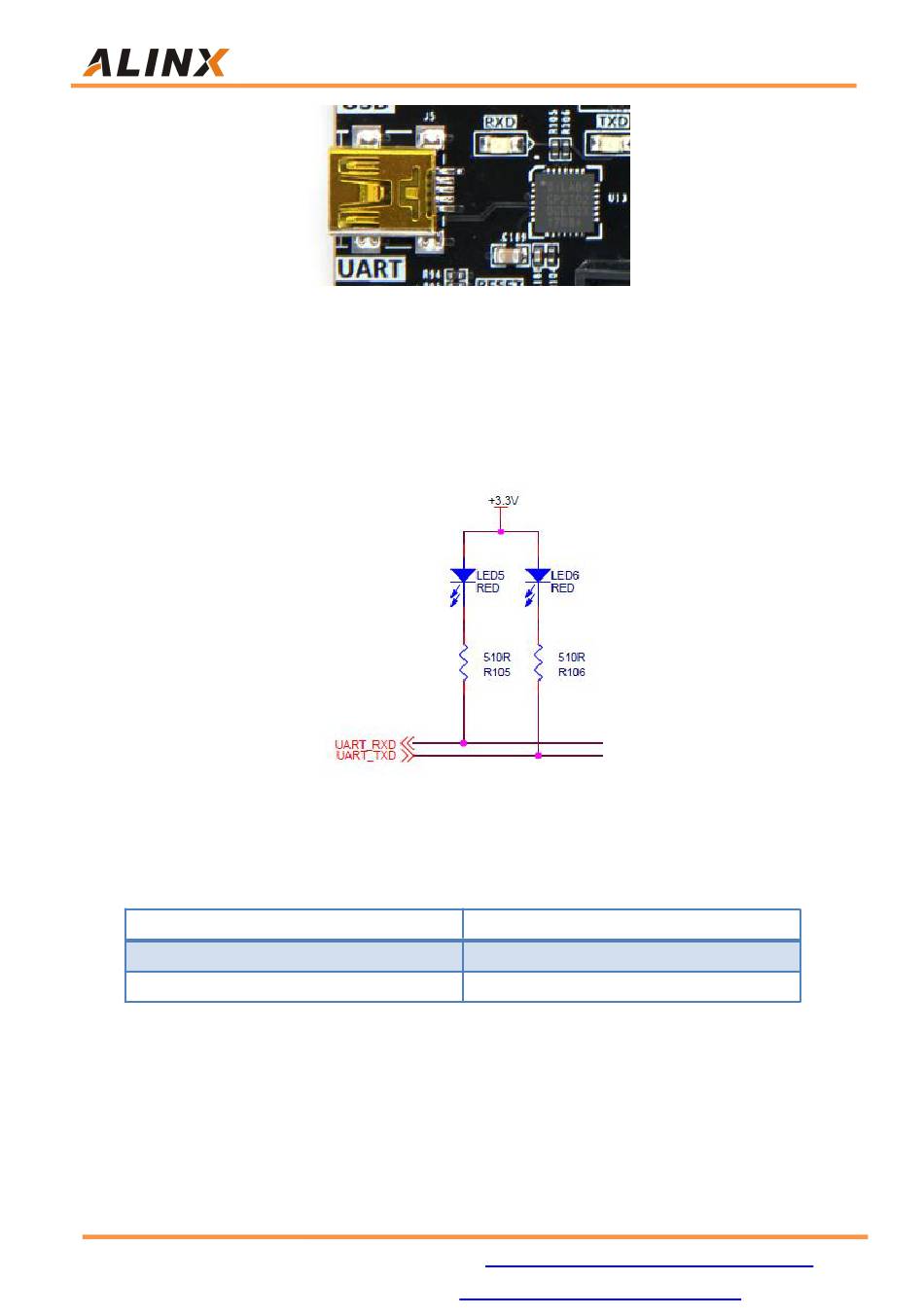

Figure 13-2: USB to serial port on the FPGA Board
Two LED indicators (LED5 and LED6) are set for the serial port signal, and
the silkscreen on the PCB is TX and RX, indicating that the serial port has data
transmission or reception, as shown in the following Figure 13-3
Figure 13-3: Serial Port communication LED Indicators Schematic
USB to serial port pin assignment:
Signal Name
UART_RXD
UART_TXD

Part 14: EEPROM 24LC04

The AX7035 development board contains an EEPROM, model 24LC04,
and has a capacity of 4Kbit (2*256*8bit). It consists of two 256-byte blocks and
communicates via the IIC bus. The onboard EEPROM is to learn the
