Part 6:Ddr3 Dram - Alinx AX7035 User Manual

within the FPGA. The user can configure the FPGA's internal PLL and MMCM
to achieve a higher clock.

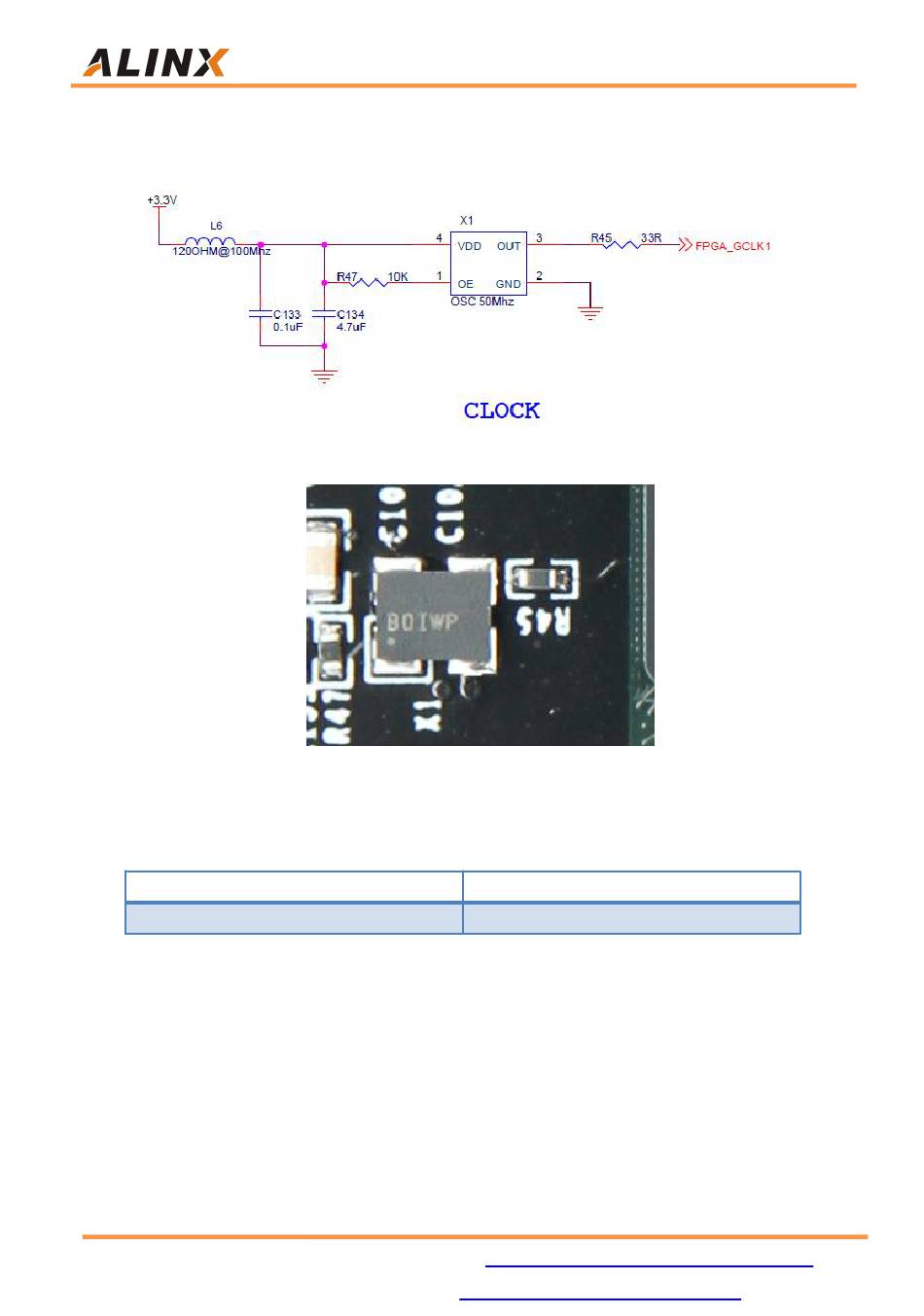

Figure 5-2: 50M active crystal oscillator on the FPGA Board
Clock Pin Assignment
FPGA_GCLK1

Part 6:DDR3 DRAM

TheAX7035 FPGA development board is equipped with one Micron 2Gbit
(256MB) DDR3 chips, model MT41J128M16HA-125. DDR bus width is 16bit.
The DDR3 SDRAM has a maximum operating speed of 400MHz (data rate
800Mbps). The DDR3 memory system is directly connected to the memory
12 / 42
ARTIX-7 FPGA Development Board AX7035 User Manual
Figure 5-1: 50M active crystal oscillator
Net Name
Amazon Store:
Sales Email:
FPGA PIN
V10
