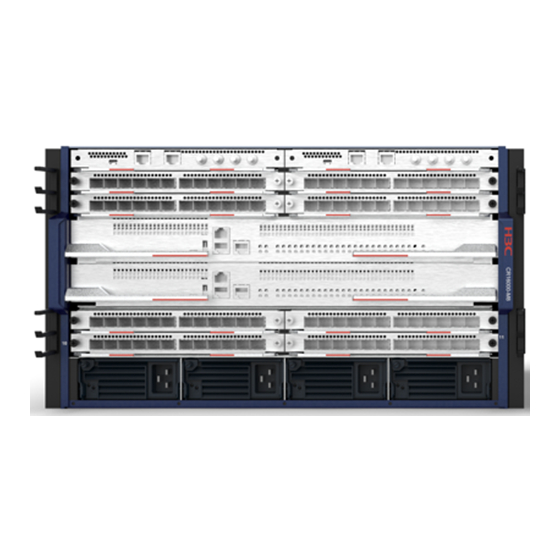

H3C CR16000-M Installation Manual
Hide thumbs
Also See for CR16000-M:
- Installation, quick start (4 pages) ,
- Quick start manual (21 pages)
Related Manuals for H3C CR16000-M
Summary of Contents for H3C CR16000-M
- Page 1 H3C CR16000-M Routers Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 5W101-20221206...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Preface This document describes the installation procedure for the CR16000-M routers. It includes safety precautions, preparing for installation, installing the router, installing modules, connecting cables, starting and configuring the router, replacing modules, troubleshooting, engineering labels, cable assembling and management, and repackaging procedures.
- Page 4 Convention Description Multi-level menus are separated by angle brackets. For example, File > Create > > Folder. Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software.
- Page 5 It is normal that the port numbers, sample output, screenshots, and other information in the examples differ from what you have on your device. Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Contents 1 Safety precautions ··················································································· 1-1 Safety labels···················································································································································· 1-1 Basic safety guidelines···································································································································· 1-2 Local laws and regulations ······················································································································ 1-3 Basic requirements ································································································································· 1-3 Grounding requirements ························································································································· 1-3 Personal safety ······································································································································· 1-3 Device safety ··········································································································································· 1-4 Installation site ················································································································································ 1-4 Basic requirements ································································································································· 1-4 Indoor installation ····································································································································... -
Page 7: Safety Precautions
Safety precautions To avoid possible bodily injury and device impairment, read the following safety recommendations carefully before installing your device. In actual installation, you need to take safety measures including but not limited to the safety recommendations listed in this section. •... -
Page 8: Basic Safety Guidelines
Label Name Description The device can operate correctly only in a Non-tropical climate non-tropical climate. Read instruction Read the instruction manual for how to operate the manual device. To lift a chassis with a weight higher than 100 kg Weight-supporting (220.46 lb), read the instruction manual and use handle tools. -
Page 9: Local Laws And Regulations
Comply with local laws and regulations. The safety precautions in this document are only supplements to the local laws and regulations. Basic requirements Only trained and qualified personnel are allowed to install and maintain H3C devices. Note the following guidelines during installation, operation, and maintenance of the device: •... -
Page 10: Device Safety
Device safety • Attach the device on the ground or other secure places. • Do not block the air vents when the device is operating. • Use tools rather your hands to fasten screws. • Remove all packing materials from the equipment room after the installation is complete. •... -
Page 11: Installation In A Rack
Installation in a rack • Check the earthing and stability of the rack, and make sure there is no obstacle inside or near the rack that might hamper the installation. • Reserve sufficient space around the rack. For a closed rack, make sure the rack has good ventilation. -
Page 12: Power Cables
• If there is any possibility that you might touch a live part on the device, you must disconnect power from the upper-level equipment of that live part. • Before connecting a power cable, verify that the input voltage is within the rated voltage range of the device. -
Page 13: Esd
• Wear anti-static clothes and shoes in work areas, and wear anti-static wristbands or anti-static gloves, and use anti-static tools when operating the device. • Clean up materials that can generate static electricity, including ordinary plastic bags, foam-like materials, plastic products, and adhesive tape to keep them at least 1 m (3.28 ft) away from the cabinet and devices. -
Page 14: Mechanical Safety
Mechanical safety Drilling holes CAUTION: Do not drill holes in the cabinet yourself. Incorrect drilling operations can affect EMI shielding performance of the cabinet and damage cables inside the cabinet. Metal shavings or debris from drilling can cause a short circuit on the circuit boards. •... -
Page 15: Hoisting Safety
• Never move suddenly or twist your body. Move the router at stable and consistent paces with your peer. Keep balance of your body. • Stack devices according to the sizes of and packing symbols on the packages. Table1-2 Packing symbols Symbol Description Stored with a maximum stack of n units. -
Page 16: Card Installation And Cable Connection
Figure1-1 Hoisting heavy objects Card installation and cable connection Installing and removing a card • To avoid damage to the components on a card, do not touch the surface of a card, including parts, circuits, and connectors. • To avoid short-circuit or scratching on cards, prevent the surface of a card from contacting the surface of another. -
Page 17: Cabling Under A Low Temperature
• Cut the extra parts of the ties neatly after bundling the cables, leaving no sharp or angular tips. Cabling under a low temperature When the temperature is very low, a violent impact or vibration might damage the cable sheathing. To ensure safety, comply with the following requirements: •... - Page 18 Contents 2 Preparing for installation ·········································································· 2-1 Preparing the installation site ·························································································································· 2-1 Weight support ········································································································································ 2-1 Temperature and humidity ······················································································································ 2-1 Cleanliness ·············································································································································· 2-2 Harmful gas limit ····································································································································· 2-2 EMI ·························································································································································· 2-2 Grounding ··············································································································································· 2-3 Power supply ··········································································································································· 2-3 Cooling ····················································································································································...
-
Page 19: Preparing For Installation
The total weight of the router includes the chassis and its components (for example, modules and power supplies) and accessories. For information about the weights of the router and its components, see H3C CR16000-M Routers Hardware Information and Specifications. TIP: To assess the load-bearing requirements for the floor, take potential system expansion (for example, adding more modules) also in consideration. -
Page 20: Cleanliness
Cleanliness Dust buildup on the chassis might result in electrostatic adsorption, which causes poor contact of metal components and contact points. In the worst case, electrostatic adsorption can cause communication failure. Table2-2 Dust concentration limits in the equipment room Substance Particle diameter Concentration limit ≥... -
Page 21: Grounding
The device supports multiple types of interfaces modules. The system power consumption varies by module type. For information about power consumptions of the system and its components, see H3C CR16000-M Routers Hardware Information and Specifications. • Determine the number and type of power supplies based on the total power consumption of the router. -
Page 22: Space
• Make sure the rack has enough space to accommodate the router. See Table2-4 for rack requirements. For more information about chassis dimensions, see CR16000-M Routers Hardware Information and Specifications. Table2-4 Router depth and rack requirements Model Chassis depth Rack requirements •... -
Page 23: Unpacking And Inspecting The Router
Figure2-2 demonstrates the depth of the CR16000-M router chassis. Figure2-2 Chassis depth (CR16000-M8) (1) Fan tray handle (2) Cable management bracket NOTE: • If the rack does not meet the requirements described in Table2-4, the rack door might fail to be closed after you install the router of standard configurations in the rack. -
Page 24: Unpacking And Inspecting The Chassis
• The engineer on site fills in the cargo issue table within one working day and reports it to the H3C supply chain contact. Unpacking and inspecting the chassis Place the carton flat on the ground. -
Page 25: Inspecting Modules
• A module is vulnerable to ESD damages. To prevent ESD damages, see Generic Operating Environment Requirements of H3C Devices Installed Indoors. • Before installing a module, make sure the cabinet and chassis is clean and tidy. To inspect a module: Wear an ESD wrist strap and make sure the wrist strap is reliably grounded. -
Page 26: Tools And Equipment
NOTE: A switching fabric module is provided with a protection box. To install the switching fabric module, first remove the protection box. • For a protection box that encloses the entire switching fabric module, loosen the captive screws on the box, open the ejector levers of switching fabric module, and then pull the module out. •... -
Page 27: Fitter Tools
Figure2-7 Fastening tools Fitter tools Figure2-8 lists the fitter tools that you might use during installation. Figure2-8 Fitter tools Auxiliary tools Figure2-9 lists the auxiliary tools that you might use during installation. -
Page 28: Fiber-Optic Cleaning Tools
Figure2-9 Auxiliary tools Fiber-optic cleaning tools Figure2-10 lists the fiber-optic cleaning tools that you might use during installation. Figure2-10 Fiber-optic cleaning tools Equipment Figure2-11 lists the equipment that you might use during installation. Figure2-11 Equipment 2-10... - Page 29 Contents 3 Installing the router ·················································································· 3-1 Confirming installation preparations ················································································································ 3-1 Attaching slide rails and cage nuts to the rack ································································································ 3-1 Installing slide rails ·································································································································· 3-1 Installing cage nuts ································································································································· 3-2 Mounting the router in the rack ······················································································································· 3-2 Grounding the router ·······································································································································...
-
Page 30: Installing The Router
Attaching slide rails and cage nuts to the rack Installing slide rails Before you mount the router in a rack, install slide rails on the rack. As a best practice, purchase slide rails from H3C. Table3-1 describes the slide rails recommended for the router. For information about installing the slide rails, see the installation guide shipped with the slide rails. -
Page 31: Installing Cage Nuts
Table3-1 Slide rails available for the router Available slide rails Chassis Router Max. Occupied weight (fully Slide rail model load-bearing Adjustment range rack configured) model capacity space CR16000 66 kg (145.50 lb) 380 to 630 mm (14.96 RL-1U-A 200 kg (440.92 lb) 1 RU to 24.80 in) CR16000... - Page 32 Figure3-2 Mounting the chassis on the slide rails Attach the chassis to the rack with mounting screws.
-
Page 33: Grounding The Router
Figure3-3 Mounting the chassis in the rack If the mounting holes in the mounting brackets cannot align with the cage nuts on the rack, verify that the bottom edge of the slide rail aligns with the middle of the narrower metal area between holes and that the cage nuts are installed in the correct holes. -
Page 34: Grounding The Router Through The Pe Wire Of Ac Power Supplies
The grounding cable provided with the router is compliant with the NEBS standards, with a dual-hole grounding lug at one end for connecting to the chassis and a ring terminal at the other end for connecting the grounding strip. As shown by callouts 1 and 2 in Figure3-4, remove the grounding screws from the grounding holes at the rear of the chassis. -
Page 35: Grounding The Router Through The Rtn Wire Of Dc Power Supplies
Figure3-5 Grounding the router through the PE wire of AC power supplies Grounding the router through the RTN wire of DC power supplies CAUTION: Make sure the RTN wire is grounded reliably when it is routed out from the DC power cabinet. If the router is powered by a –48 VDC power supply and no grounding strip is available at the installation site, you can ground the router through the return (RTN) wire of the DC power supplies, as shown in Figure3-6. - Page 36 Contents 4 Installing removable components ····························································· 4-1 Attaching an ESD wrist strap ·························································································································· 4-1 Installing MPUs/interface modules ·················································································································· 4-2 Installing switching fabric modules ·················································································································· 4-3 Installing the cable management brackets ······································································································ 4-4 Installing a power supply ································································································································· 4-5 Installing a power supply ························································································································· 4-5 Connecting an AC power cord ················································································································...
-
Page 37: Installing Removable Components
Installing removable components There is no required order for installing removable components. NOTE: Keep the packaging, including packaging cartons and bags of the chassis and components secure for future use. Attaching an ESD wrist strap CAUTION: • Use a multimeter to measure the resistance of the ESD wrist strap. Be sure that the resistance reading between your body and the ground is 1 to 10 megohms. -
Page 38: Installing Mpus/Interface Modules
Installing MPUs/interface modules CAUTION: • To avoid damages to the backplane, make sure the module connector is not broken or blocked before inserting the module into the chassis. • When installing a module, make sure its PCB side faces upward. •... -
Page 39: Installing Switching Fabric Modules
Figure4-3 Installing an MPU Installing switching fabric modules Wear an ESD wrist strap, and make sure it makes good skin contact and is reliably grounded. For more information, see "Attaching an ESD wrist strap." Remove the filler panel (if any) from the target switching fabric module slot. Keep the filler panel secure for future use. -
Page 40: Installing The Cable Management Brackets
As shown by callout 2 in Figure4-5, orient the switching fabric module with the side that has the "TOP " sign facing upward, align the module with the target switching fabric module slot, and then insert it into the slot along the guide rails until the ejector levers engages the slot edges. As shown by callout 3 in Figure4-5, close the ejector levers until the front panel of the switching fabric module is flush with the slot. -
Page 41: Installing A Power Supply
Figure4-6 Installing cable management brackets Installing a power supply CAUTION: Provide a circuit breaker for each power supply and make sure the circuit breaker is off before installing the power supply. The router supports N+1 or N+N power supply redundancy. You can select AC or DC power supplies for the router. -
Page 42: Connecting An Ac Power Cord
The router is shipped without filler panels in some power supply slots. The figures in this section are for illustration only. To install a power supply: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. For more information, see "Attaching an ESD wrist strap."... -
Page 43: Connecting A Dc Power Cord
Figure4-9 Connecting an AC power cord Connecting a DC power cord WARNING! • Make sure each DC power cord has a separate circuit breaker. • When connecting a DC power cord to the power input terminal, make sure the circuit breaker for the input terminal has been turned off. - Page 44 IMPORTANT: To meet the current requirements and match the terminals on the PSR2400-D power supplies, use the power cords or lug terminals provided by H3C. To connect a DC power cord to a PSR2400-D power supply: As shown by callout 1 in Figure4-11, use a Phillips screwdriver to loosen the screw on the terminal protection cover and then remove the protection cover from the power supply.
-
Page 45: Connecting An Ac Or Hvdc Power Cord For A Psr2500B-12Ahd-F Power Supply
Figure4-12 Covering the joint with a heat-shrink tubing Connecting an AC or HVDC power cord for a PSR2500B-12AHD-F power supply CAUTION: • Do not use different types of power cords for the same router. • To use an AC power cord for the router, make sure the AC power cord has a straight connector. To connect an AC or HVDC power cord for a PSR2500B-12AHD-F power supply: Insert the connector of the power cord to the power receptacle on the power supply, and use a cable tie to secure the power cord to the nearby cable management bracket. - Page 46 Contents 5 Connecting cables ··················································································· 5-1 Connecting a twisted pair cable ······················································································································ 5-1 Connecting your router to the network through optical fibers·········································································· 5-1 About transceiver modules and optical fibers ························································································· 5-1 Installing a transceiver module and connecting optical fibers ································································· 5-1 Connecting an E1 cable ··························································································································...
- Page 47 They allow the removable connection between optical channels, which makes the optical system debugging and maintenance more convenient and the transit dispatching of the system more flexible. For more information, see H3C CR16000-M Routers Hardware Information and Specifications. Installing a transceiver module and connecting optical fibers WARNING! Do not stare into any open apertures of operating transceiver modules or optical fiber connectors.
- Page 48 To connect your router to the network through an optical fiber: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. For more information, see "Attaching an ESD wrist strap" in "Installing removable components." Remove the dust plug from the target fiber port.
- Page 49 Figure5-2 Connecting an MPO optical fiber connector to a transceiver module NOTE: The triangular pin on a transceiver module and the hole in a fiber port function together to prevent the module from disengaging from the port. Connecting an E1 cable Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
- Page 50 Contents 6 Verifying the installation ··········································································· 6-1 About installation verification··························································································································· 6-1 Checking the installation site··························································································································· 6-1 Verifying the installation ·································································································································· 6-1 Cabling ···························································································································································· 6-2 Electrical safety ··············································································································································· 6-2...
- Page 51 Verifying the installation About installation verification WARNING! To avoid component damage or bodily injury, make sure all power sources are in OFF state before you check the installation. Installation verification is extremely important, because correct operation of the router highly depends on its stability, well grounding, proper power supply and correct implementation of the overall installation procedure.
- Page 52 Cabling Table6-3 Cabling Item All the communication cables, power cables, and grounding cables have been correctly connected. All power cables and grounding cables are copper wire cables with no joints and are connected reliably. The ring terminal has been attached securely to the power cable or grounding cable. The heat-shrink tubing has been slided onto the cable and the bare metal part has been inserted into the end of the ring terminal.
- Page 53 Contents 7 Starting and configuring the router ··························································· 7-1 Connecting the router to a configuration terminal ··························································································· 7-1 Preparing the console cable and configuration terminal ········································································· 7-1 Setting up the configuration environment································································································ 7-1 Setting terminal parameters ···················································································································· 7-2 Starting the router for the first time ················································································································· 7-2 Flowchart ·················································································································································...
-
Page 54: Starting And Configuring The Router
Preparing the console cable and configuration terminal A console cable connects the console port on the router to a serial port on a configuration terminal to transmit configuration data. For more information about the console cable, see H3C CR16000-M Routers Hardware Information and Specifications. -
Page 55: Setting Terminal Parameters
Setting terminal parameters To configure and manage the router through the console port, you must run a terminal emulator program, TeraTermPro or PuTTY, on your configuration terminal. You can use the emulator program to connect a network device, a Telnet site, or an SSH site. For more information about the terminal emulator programs, see the user guides for these programs. -
Page 56: Pre-Power On Check
• Before powering on the router, make sure all its switches are in the OFF position. Be sure that the input voltage is in the required range and then turn on the switches to the ON position. For the required input voltage range, see H3C CR16000-M Routers Hardware Information and Specifications. -
Page 57: Starting The Router For The First Time
Close the protective cover. Observe the power input status LEDs on the power supplies. If the LEDs are on, the power cords are connected correctly. For more information about the power supply LEDs, see H3C CR16000-M Routers Hardware Information and Specifications. -
Page 58: Post-Power On Check
LEDs are not in status as described in Table7-2, the router might be operating incorrectly. For more information about the LEDs, see H3C CR16000-M Routers Hardware Information and Specifications. To resolve the issues based on the LEDs, see "Troubleshooting". -
Page 59: Configuring The Router
Fan tray Steady green Configuring the router At the first startup of the router, you are required to configure basic parameters for the router. For more information, see H3C CR16000-M Routers Fundamentals Configuration Guide and H3C CR16000-M Routers Fundamentals Command Reference. - Page 60 Contents 8 Replacement procedures ········································································· 8-1 Replacing a power supply ······························································································································· 8-1 Precautions ············································································································································· 8-1 Procedure ················································································································································ 8-1 Replacing an MPU/interface module ·············································································································· 8-2 Replacing a switching fabric module ··············································································································· 8-3 Replacing a fan tray ········································································································································ 8-5 Replacing a transceiver module ······················································································································ 8-5 Replacing a transceiver module ··············································································································...
-
Page 61: Replacement Procedures
Replacement procedures WARNING! • Ensure electricity safety when you replace a removable component on an operating router. • To avoid device damage and bodily injury, strictly follow the replacement procedures to replace removable components on the router. The router uses a modular architecture. You can replace removable components on an operating router. -
Page 62: Replacing An Mpu/Interface Module
DC power cord from a PSR2400-12D power supply—Remove the cable tie from the power cord, loosen the fastening screw on the power cord, and then remove the power cord connector from the power supply. DC power cord from a PSR2400-D power supply—Remove the cable tie from the power ... -
Page 63: Replacing A Switching Fabric Module
Figure8-4 Removing an MPU Figure8-5 Installing a filler panel in an unused MPU slot Replacing a switching fabric module Prepare an antistatic mat to place the removed switching fabric module. Put on an ESD wrist strap, and make sure the wrist strap makes good skin contact and is reliably grounded. - Page 64 As shown by callout 3 in Figure8-6, rotate outward the ejector levers of the module to separate the module connector from the backplane. As shown by callout 4 in Figure8-6, use one hand to slowly move the module outwards. Supporting the bottom of the module with the other hand, pull the module out of the slot along slide rails.
-
Page 65: Replacing A Fan Tray
Replacing a fan tray WARNING! To avoid bodily injury, do not touch the rotating fans when replacing a fan tray. If a fan tray fails, replace it immediately to ensure adequate heat dissipation of the router. To replace a fan tray: Prepare an antistatic mat to place the fan tray to be removed. - Page 66 CAUTION: • Do not touch the golden plating on a transceiver module during the replacement process. • Make sure the new transceiver module is the same model as the peer transceiver module at the other end of the optical fiber. •...
-
Page 67: Replacing An E1 Cable
Figure8-9 Removing a transceiver module (LC interface) Figure8-10 Removing a transceiver module (MPO interface) Replacing an E1 cable Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. For more information, see "Attaching an ESD wrist strap." Use a screwdriver to loosen the screws on the connector of the E1 cable. - Page 68 Figure8-11 Removing an E1 cable Install a new E1 cable. For the installation procedure, see "Connecting an E1 cable."...
- Page 69 Contents 9 Troubleshooting ······················································································· 9-1 Troubleshooting methods································································································································ 9-1 Configuration terminal display issues at startup······························································································ 9-1 No display on the configuration terminal ································································································· 9-1 Garbled display on the configuration terminal ························································································· 9-2 System failures during operation ···················································································································· 9-2 Power supply failure ········································································································································ 9-2 Fan tray failure ················································································································································...
-
Page 70: Troubleshooting
• The MPU provides LEDs for the fan trays and MPUs. You can locate failures according to the LED status on the MPU. For more information about the LEDs on the MPU, see H3C CR16000-M Routers Hardware Information and Specifications. -
Page 71: Garbled Display On The Configuration Terminal
If the issue persists, contact H3C Support. Power supply failure When a power supply is operating correctly, its status LEDs are green. For more information about the status LEDs on power supplies, see H3C CR16000-M Routers Hardware Information and Specifications. Symptom A status LED on a power supply is off or not green. -
Page 72: Fan Tray Failure
Verify that the unused interface module slots and power supply slots are installed with filler panels. If the issue persists, contact H3C Support. MPU failure When an MPU is operating correctly, the RUN LED on it flashes at 0.5 Hz and the ALM LED is off. -
Page 73: Interface Module Failure
Calculate the total power consumption, and make sure a sufficient number of power supplies are installed. For more information, see H3C CR16000-M Routers Hardware Information and Specifications. Ensure that the interface module is installed securely. Remove the interface module, reinsert it into the slot, and then rotate inward the ejector levels until ends of the ejector levers touch the front panel of the interface module tightly. -
Page 74: Switching Fabric Module Failure
Calculate the total power consumption, and make sure your power supplies can provide enough power. For more information, see H3C CR16000-M Routers Hardware Information and Specifications. Ensure that the switching fabric module is installed securely. Remove the switching fabric module, reinsert it into the slot, and then rotate inward the ejector levels until the ejector levers touch the front panel of the switching fabric module tightly. - Page 75 • Brief issue description. • Brief introduction of the troubleshooting procedures that have been taken.
- Page 76 Contents Appendix A Engineering labels ···································································· 1 Labels for cables ················································································································································ 1 Labels for signal cables ······························································································································ 1 Labels for power cords ······························································································································· 1 Generic labels ············································································································································ 2 Labels for devices ·············································································································································· 3 Filling in labels···················································································································································· 3 Affixing labels ····················································································································································· 3 Affixing a label to a signal cable ·················································································································...
-
Page 77: Appendix A Engineering Labels
Appendix A Engineering labels Engineering labels are used to identify cables and devices for easy maintenance after installation. There are two types of engineering labels, labels for cables and labels for devices. Labels for cables Cables include signal cables such as network cables and fibers, and power cords such as AC power cords and DC power cords. -
Page 78: Generic Labels
FigureA-2 Label for power cords (1) Cable tie (2) Dividing line on the label Generic labels A generic label is bar-shaped with fixed dimensions. It is applicable to both signal cables and power cords. A mark "TO:" is located at the upper left corner in the right area of the label to identify the peer end of the cable on which the label is affixed. -
Page 79: Labels For Devices
FigureA-3 Generic label (1) Dividing line on the label (2) Cut dotted line Labels for devices A device label is used to identify the device name, model, address, installation date, and so on. Filling in labels You can print or write desired contents on labels. As a best practice, print labels. To print labels, select a label printer and a proper label template as needed. -
Page 80: Affixing A Label To A Power Cord
FigureA-4 Affixing a label Stick side B02 03 FigureA-5 shows the affixed labels when the cable is laid vertically and horizontally. FigureA-5 Affixed labels TO : B0 2 0 3 1 2 Affixing a label to a power cord Stick the label to the recessed rectangular area on the identification plate. You can stick the label to either side of the identification plate. -
Page 81: Affixing A Generic Label
FigureA-6 Affixing a label B03 -48V2 Bind cable ties on both ends of a cable. After the bundling, the finished identification plate should be on top of the cable in horizontal cabling, or on the right side of the cable in vertical cabling. Make sure the label is facing out, as shown in FigureA-7. -
Page 82: Affixing A Label To A Device
FigureA-8 Affixing a generic label B02 03 12 Stick side Affixing a label to a device Remove the device label and stick it to the device. You can stick a device label to any desired position on the device. Guidelines •... -
Page 83: Engineering Labels For Optical Fibers
Content Meaning Example example, 01. Numbered in top-down and left-right order with two C—Slot number digits, for example, 01. Numbered in top-down and left-right order with two D—Ethernet port number digits, for example, 01. • M—Row number of the rack in the equipment room, in the range of A to Z. - Page 84 • Labels for the fiber that connects two devices TableA-2 Information on labels affixed to the fiber between two devices Content Meaning Example • M—Row number of the rack in the equipment room, in the range of A to Z. •...
-
Page 85: Engineering Labels For Dc Power Cords
Content Meaning Example For example, G01 is the ODF of Row G and Column 01. B—Row number of the terminal device In the range of 01 to 99, for example, 01-01. C—Column number of the terminal device R—Optical receiving interface T—Optical transmitting interface FigureA-10 Example of a label on an optical fiber between two devices... -
Page 86: Engineering Labels For Ac Power Cords
Content Meaning box. BC identifies the row and column number of the –48 V connector (if there is no row number or column number, or the connector can be identified without them, BC can be omitted). RTN and PGND have no row and column number for identification. -
Page 87: Engineering Labels For Devices
TableA-5 Information on labels affixed to AC power cords Content Meaning MN: Rack number (row number and column number in the equipment room) or the location of the socket where the power is led in. The location of the socket is marked according to onsite situation. If the sockets can be MN-AC identified by row number and column number, they can be numbered following the same rule for the rack number. - Page 88 FigureA-14 Example of a device label...
- Page 89 Contents Appendix B Cable assembling and management ········································ 1 Assembling a cable ············································································································································ 1 Prerequisites ·············································································································································· 1 Restrictions and guidelines ························································································································ 1 Attaching a ring terminal ···························································································································· 2 Attaching an RJ-45 connector ···················································································································· 4 Replacing the mould ·································································································································· 7 Connecting or disconnecting cable connectors ································································································· 9 Restrictions and guidelines ························································································································...
-
Page 90: Assembling A Cable
Appendix B Cable assembling and management This section describes attaching cable connectors (ring terminal or RJ connector) to cables. Connectors, cables, and tools to use might vary by vendor. Figures in this section are for illustration only. Assembling a cable Use professional tools and devices and follow the correct steps when you attach a cable connector to a cable. -
Page 91: Attaching A Ring Terminal
When you attach a connector to a cable, follow these restrictions and guidelines: • After crimping, make sure the connector and cable are tightly bonded. • Make sure the cable conductor is not exposed, and cut off the exposed conductor in time. •... - Page 92 FigureB-3 Attaching the ring terminal Use a crimping tool to crimp the tail of the ring terminal. The shape of the end face after crimping varies by crimping tool. FigureB-4 Crimping the ring terminal Cover the joint with the heat-shrink tubing. FigureB-5 Covering the joint with the heat-shrink tubing (1) Crimping section Use a blow dryer to heat the tubing until the tubing closely covers the cable.
-
Page 93: Attaching An Rj-45 Connector
FigureB-6 Shrinking the tubing IMPORTANT: Do not heat the tube for a long time in case burning the insulation sleeve. FigureB-7 Cable attached with a ring terminal Attaching an RJ-45 connector RJ-45 connector and twisted pair cable FigureB-8 Ring terminal and cable components Unshielded twisted pair cable 非屏蔽双绞线... - Page 94 This section uses a straight-through cable as an example. For more information, see H3C CR16000-M Router Hardware Options. Use the cutting edge of the wire-crimping pliers to trim the top of the twisted pair cable neatly.
- Page 95 Crimp the RJ-45 connector with the crimping pliers until you hear a click. Repeat steps 2 to 5 to attach a connector to the other end of the cable. Verifying the cable Examine the assembled twisted pair connectors. If the cable cannot meet the following requirements, reassemble the cable: •...
-
Page 96: Replacing The Mould
Replacing the mould Loosen the two screws of the mould counterclockwise. FigureB-12 Loosening the screws Squeeze the handle of the crimping pliers for the self-locking lock to pop open. The jaws of the crimping pliers will automatically open. FigureB-13 Opening the crimping pliers jaws Remove the mould. - Page 97 FigureB-14 Removing the mould Install the new mould as shown in FigureB-15. FigureB-15 Installing a mould NOTE: Keep the short side of the mould inwards and the long side outwards. The teeth of the mould now go from largest toward the inside to smallest toward the outside. Hold the handles of the crimping pliers tightly to match the mould and the jaw completely.
-
Page 98: Connecting Or Disconnecting Cable Connectors
FigureB-16 Aligning the screw holes Hold the handles of the crimping pliers with one hand, and tighten the two fastening screws. FigureB-17 Tightening the fastening screws Connecting or disconnecting cable connectors Restrictions and guidelines • During operation, use special tools and equipment, and follow the correct steps. •... -
Page 99: Connecting Or Disconnecting A Ring Terminal
• Cover unused fiber connectors with dust-proof caps. Remove the dust-proof caps only when you are about to use the fiber connectors. Connecting or disconnecting a ring terminal CAUTION: • Ring terminals might rotate. Make sure a ring terminal cannot contact any adjacent metal structural parts or studs. -
Page 100: Connecting Or Disconnecting An Rj-45 Connector
FigureB-20 Ring terminal connected Disconnecting a ring terminal Loosen the hexagonal nut anticlockwise to remove it, and then disconnect the ring terminal. FigureB-21 Disconnecting a ring terminal Connecting or disconnecting an RJ-45 connector Connecting an RJ-45 connector Align the connector with the network port, pinch the end of the connector and insert it into the port. Press the connector until you hear a click. -
Page 101: Connecting Or Disconnecting A Fiber Connector
FigureB-22 Connecting an RJ-45 connector Disconnecting an RJ-45 connector Press the locking clip to disengage the connector from the port, and pull out the connector. FigureB-23 Disconnecting an RJ-45 connector Connecting or disconnecting a fiber connector Connecting or disconnecting an LC-type fiber connector Connecting an LC-type connector Remove the dust-proof cap and keep the cap for future use. - Page 102 FigureB-24 Aligning the connector with the fiber port Insert the connector into the port until you hear a click. Slightly pull the fiber and make sure the fiber is connected securely. FigureB-25 Inserting the connector Disconnecting an LC-type connector Press the locking tab to disengage the connector from the port, and then slightly pull the connector out.
- Page 103 FigureB-27 Aligning the connector with the fiber port Pinch the part of the connector marked with PUSH, and insert the connector into the port until you hear a click. Slightly pull the fiber and make sure the fiber is connected securely. FigureB-28 Inserting the connector Disconnecting an LC-type connector Pinch the part of the connector marked with PULL to disengage the connector from the port, and...
-
Page 104: Managing Cables
Clean the pins again by using lint-free cotton. If necessary, clean the pins by using an air gun. Ensure that the pins are free from any fiber or debris. To clean a fiber connector with guide pins: Fold a piece of lint-free cotton and dip it in alcohol. Then, use the cotton to clean the pins. Clean the pins again by using a new piece of lint-free cotton without alcohol. - Page 105 • Use the correct ties to bind the cables. Do not bind cables with joined ties. • The distances between cable ties must be three to four times of the cable diameter. • Bind and route the cables neatly inside the rack, and make sure the cables are not kinked or bent.
-
Page 106: Cable Management
FigureB-32 Cutting the cable ties • Route, bind, and attach excess cables for easy, safe maintenance activities and proper operations. • Do not tie the power cords to the slide rails. • When you connect a cable to an articulated part, for example, when you connect a grounding cable to a rack door, leave enough slack in cables and make sure they are not stressed from any movement of the part. - Page 107 Optical fiber management CAUTION: The core of optical fibers is thin and fragile. Do not use cable ties to bind the optical fibers. Use soft binding tapes to carefully bind optical fibers. Avoid excessive force. For more information, see the binding tape use instructions.
- Page 108 FigureB-35 Routing AC power cords...
- Page 109 FigureB-36 Routing DC power cords NOTE: If the power cord cannot be threaded from the side due to insufficient space at the side of the cabinet, you can route the power cord through the bottom to the front.
- Page 110 Contents 12 Appendix C Repackaging the router ···················································· 12-1 Removing cables from the router ·················································································································· 12-1 Removing the power cord ····················································································································· 12-1 Removing the console cable ················································································································· 12-1 Removing the network cables ··············································································································· 12-1 Removing the grounding cable ············································································································· 12-1 Repackaging the router accessories ·············································································································...
-
Page 111: Appendix C Repackaging The Router
Appendix C Repackaging the router This chapter describes how to repackage the router chassis, power module, card, and cable management bracket. Removing cables from the router Before repackaging the router, remove all cables such as the power cord, console cable, twisted pair, optical fiber, and grounding cable from the router. -
Page 112: Repackaging The Router Accessories
Figure12-1 Removing the grounding cable Repackaging the router accessories Removing cable management brackets Prepare the packing bag of the cable management brackets. Make sure the bag is clean, dry, and not damaged. Use a screwdriver to loosen the screws that attach the cable management brackets to the chassis, and then remove the cable management brackets. -
Page 113: Repackaging The Power Module
Figure12-2 Removing the cable management brackets Repackaging the power module WARNING! Before removing a power module, switch off the circuit breakers at the input end of all power cords, and remove all the power cords to avoid device damage and bodily injury. To repackage a power module: Prepare the packing bag and box of the power module. -
Page 114: Repackaging The Router Chassis
For information about how to remove a card and install a filler panel, see "Replacing a fabric module." Put the cards into anti-static bags. Put the packed card into the box, and tape the flaps of the box with packing tape. Place the card in a correct direction onto the foam cushion in the box;... -
Page 115: Repackaging The Router Chassis
Figure12-4 Removing the chassis from the rack Place the chassis a convenient place for handling. Repackaging the router chassis Put the foam cushion into the paper frame. Place the chassis into the foam cushion and secure the chassis. Cover the chassis with the packing bag. Cover the foam cushion to the chassis top, and make sure the mounting brackets seat into the internal notches of the foam cushion. - Page 116 Figure12-5 Repackaging the chassis 12-6...
