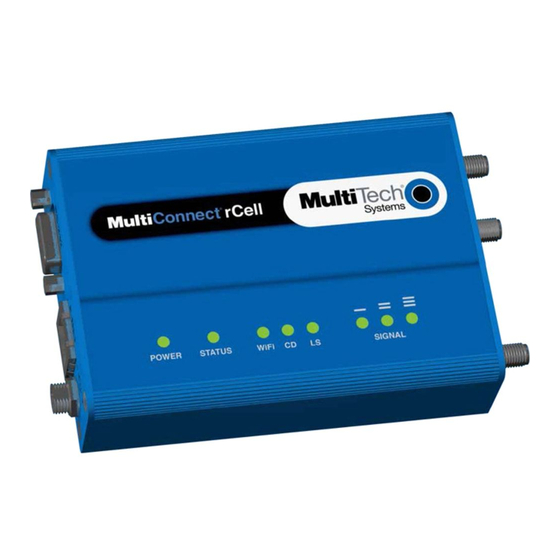

Multitech MultiConnect rCell 100 Series User Manual
  1. Manuals
  2. Brands
  3. Multitech Manuals
  4. Network Router
  5. MultiConnect rCell 100 Series
  6. User manual

Multitech MultiConnect rCell 100 Series User Manual

Hide thumbs Also See for MultiConnect rCell 100 Series:
Table of Contents

Advertisement

Quick Links

See also: Configuration Manual , User Manual
®
MultiConnect
rCell 100
Series Router User Guide

Advertisement

Table of Contents
loading

Related Manuals for Multitech MultiConnect rCell 100 Series

Summary of Contents for Multitech MultiConnect rCell 100 Series

  • Page 1 ® MultiConnect rCell 100 Series Router User Guide...
  • Page 2 Contacting Multi-Tech Knowledge Base The Knowledge Base provides immediate access to support information and resolutions for all Multi-Tech products. Visit http://www.multitech.com/kb.go. Support Portal To create an account and submit a support case directly to our technical support team, visit: https://support.multitech.com.

  • Page 3: Table Of Contents

    CONTENTS Contents Product Overview ..............................5 About MultiConnect rCell 100 Series Router........................ 5 Documentation ................................5 Descriptions of LEDs..............................5 Side Panels ..................................6 Ethernet LED Descriptions ............................7 Specifications ................................7 Dimensions..................................9 Power Draw .................................. 9 RF Specifications ................................. 10 Safety Warnings..............................
  • Page 4 CONTENTS Restriction of the Use of Hazardous Substances (RoHS) .................... 21 REACH Statement ............................... 22 Registration of Substances............................22 Substances of Very High Concern (SVHC) ........................ 22 Waste Electrical and Electronic Equipment Statement ....................22 WEEE Directive................................22 Instructions for Disposal of WEEE by Users in the European Union ................ 22 Information on HS/TS Substances According to Chinese Standards .................

  • Page 5: Product Overview

    About MultiConnect rCell 100 Series Router This guide describes the MultiConnect rCell 100 Series router. The rCell family of routers is carrier approved and ready-to-deploy. You can use your device to provide secure data communication between many types of devices that use legacy as well as the latest communication technologies.

  • Page 6: Side Panels

    PRODUCT OVERVIEW ■ Wi-Fi—Indicates if the device is serving as a Wi-Fi access point or acting as a Wi-Fi client. Not all models support Wi-Fi. ■ Modem LEDs—Two modem LEDs indicate carrier detection and link status. ■ Signal LEDs—Three signal LEDs display the signal strength level of the wireless connection. ■...

  • Page 7: Ethernet Led Descriptions

    PRODUCT OVERVIEW ■ Wi-Fi connector ■ SIM card slot. The side panel of the device follows: The figure that follows shows the other side of the device, with its RS-232 connector, Ethernet jack, and power connector. Ethernet LED Descriptions Two Ethernet LEDs are physically on the RJ-45 connector(s). The table that follows describes these LEDs. Ethernet Link Right LED on Ethernet connector.
  • Page 8 PRODUCT OVERVIEW Category Description Point-to-Point Messaging Mobile-Terminated SMS Mobile-Originated SMS Connectors Cellular Female SMA connectors for cellular WiFi Reverse polarity male SMA connector for Wi-Fi SIM Holder Standard 1.8 and 3 V SIM receptacle Female SMA connector Power Requirements Voltage 7 V to 32 V DC Physical Description Dimensions...

  • Page 9: Dimensions

    PRODUCT OVERVIEW Dimensions Power Draw GPRS Typical Maximum Peak TX Peak Rst (Inrush Current) 7 volts 0.305A, 2.14W 0.495A, 3.47W 1.74A 2.30A 9 volts 0.230A, 2.12W 0.332, 3.05W 1.28A 4.12A 20 volts 0.111A, 2.22W 0.164A, 3.28W .520A 3.03A 32 volts 0.075A, 2.40W 0.112A, 3.58W 0.337A...

  • Page 10: Rf Specifications

    PRODUCT OVERVIEW 9 volts 0.272A, 2.52W 0.455, 4.18W 0.588A 4.12A 20 volts 0.140A, 2.80W 0.216A, 4.32W .320A 3.03A 32 volts 0.090A, 2.88W 0.155A, 4.96W 0.250A 2.50A Note: Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load.

  • Page 11: Safety Warnings

    SAFETY WARNINGS Safety Warnings Lithium Battery ■ A lithium battery located within the product provides backup power for the timekeeping. This battery has an estimated life expectancy of ten years. ■ When this battery starts to weaken, the date and time may be incorrect. If the battery fails, the board must be sent back to Multi-Tech Systems for battery replacement.

  • Page 12: Precautions For Pacemaker Wearers

    SAFETY WARNINGS Advancement of Medical Instrumentation (AAMI) standard. This standard allows manufacturers to ensure that cardiac pacemakers and defibrillators are safe from cellular device EMI. The FDA continues to monitor cellular devices for interactions with other medical devices. If harmful interference occurs, the FDA will assess the interference and work to resolve the problem.

  • Page 13: Cellular Information

    CELLULAR INFORMATION Cellular Information Antenna System Cellular Devices The cellular/wireless performance is dependent on the implementation and antenna design. The integration of the antenna system into the product is a critical part of the design process; therefore, it is essential to consider it early so the performance is not compromised.

  • Page 14: Installing And Using The Router

    The dimensions illustration in this guide shows the mounting rod, as well as the dimensions for placement of the screws. Activating the Account for Wireless Devices Refer to Multi-Tech’s Cellular Activation Web site at http://www.multitech.com/activation.go for information on activating your cellular modem. ®...

  • Page 15: Installing The Sim Card

    INSTALLING AND USING THE ROUTER Note: If you need remote access to your MultiConnect device over the Internet for remote configuration, ensure that your wireless network provider has provisioned mobile terminated data and fixed or dynamic public IP address in which they can configure the network to redirect any incoming connection to that predefined IP.

  • Page 16: Resetting The Device To Factory Defaults

    INSTALLING AND USING THE ROUTER To access the reset button, find a pin or similar thin object that can fit through the reset hole. Use the pin to quickly press and release the RESET button. Release the pin from the reset button. The device reboots. Resetting the Device to Factory Defaults You can reset the device so that custom configuration settings are cleared and replaced with default configuration settings.

  • Page 17: Regulatory Information

    REGULATORY INFORMATION Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 18 REGULATORY INFORMATION Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

  • Page 19: Industry Canada Class B Notice

    REGULATORY INFORMATION Industry Canada Class B Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur. This device complies with Industry Canada RSS Appliance radio exempt from licensing. The operation is permitted for the following two conditions: the device may not cause harmful interference, and the user of the device must accept any interference suffered, even if the interference is likely to...
  • Page 20 REGULATORY INFORMATION There is no restriction on the commercialization of this device in any European Union country. The CE mark is affixed to this product to confirm compliance with the following European Community Directives: Council Directive 2004/108/EC of 15 December 2004 on the approximation of the laws of Member States relating to electromagnetic compatibility;...

  • Page 21: Restriction Of The Use Of Hazardous Substances (Rohs)

    REGULATORY INFORMATION Restriction of the Use of Hazardous Substances (RoHS) Multi-Tech Systems, Inc Certificate of Compliance 2011/65/EU Multi-Tech Systems confirms that its embedded products comply with the chemical concentration limitations set forth in the directive 2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS).

  • Page 22: Reach Statement

    REGULATORY INFORMATION REACH Statement Registration of Substances After careful review of the legislation and specifically the definition of an “article” as defined in EC Regulation 1907/2006, Title II, Chapter 1, Article 7.1(a)(b), it is our current view Multi-Tech Systems, Inc. products would be considered as “articles”.

  • Page 23: Information On Hs/Ts Substances According To Chinese Standards

    REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.

  • Page 24: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)

    REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
