51

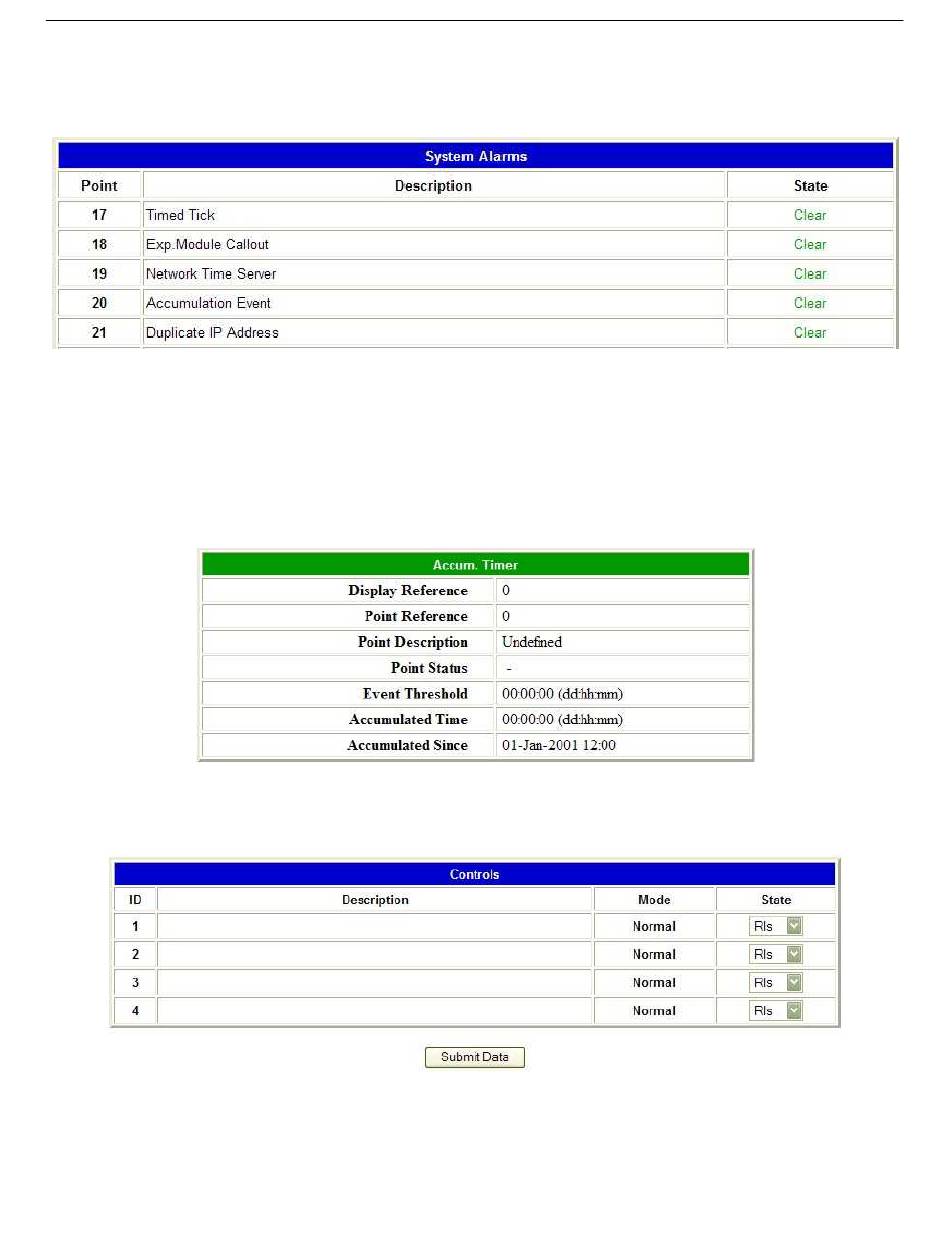

4.4.5 System Alarms
The System Alarms link will show you the state of your NetGuardian's internal alarms.
If you added alarms to point groups, the state field will display the appropriate set or clear messages. However, in
the state field, green font will always indicate a cleared alarm, red will always indicate a set alarm.
4.4.6 Accum Timer
Clicking on Accum. Timer will take you to the Accumulation Timer. From here, you can see how many times an
alarm (configured from the Accum Timer field in Edit Mode) has occurred in a set period of time.
4.4.7 Controls
Selecting Controls from the Monitor Mode navigation menu gives the user access to the unit's control relays
To operate controls:
1. Under the
field, choose a command (Opr - operate, Rls - release, or Mom - momentary).
State
2. Click
to issue the control.
Submit Data
The control relay's normal state - open or closed - is determined by a PCB jumper. Operating a control thus
changes the normal state of the relay (energizes it) until it is released (de-energized). By default, the momentary
