Chapter 3: Jumpers and Switches

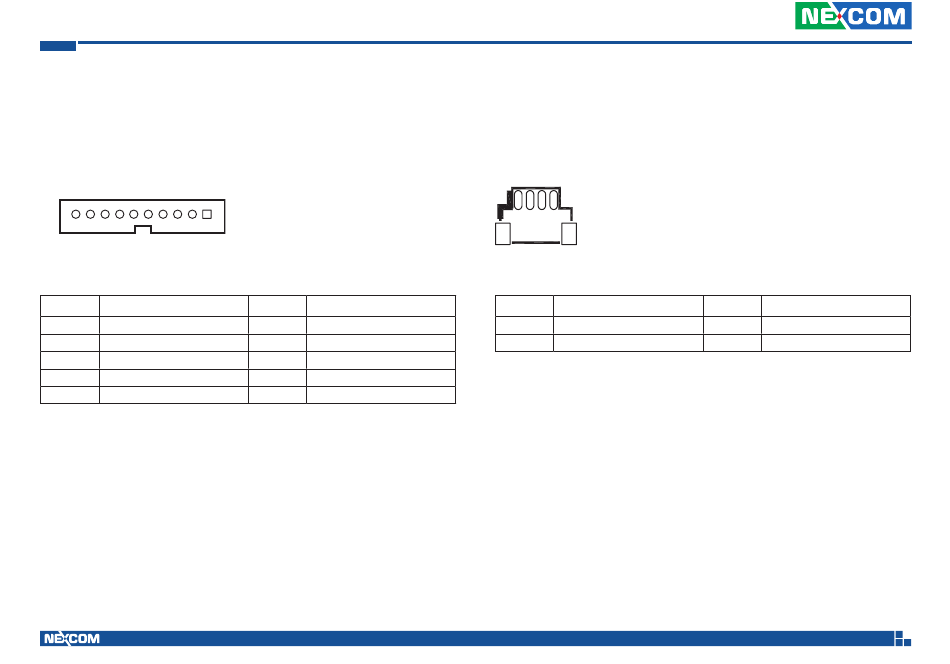

COM3 RS232/RS422/RS485 DB9 Connector

Connector size: 1 x 10 = 10-pin header
Connector location: J2
10
Pin Definition
1 GND
3 CTS#
5 DTR#_RX-
7 RI#_PW
9 TX_RX+
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
1
Pin Definition
2 GND
4 DSR#
6 RX_TX+
8 RTS#
10 DCD#_TX-

USB Connectors (Reserved)

Connector size: 1 x 4 = 4-pin header
Connector location: J7 and J9
1 4
Pin Definition
1 GND
3 USB_N
28
Pin Definition
2 USB_P
4 POWER
