Appendix F: Pin Definition for the Multiport Cable

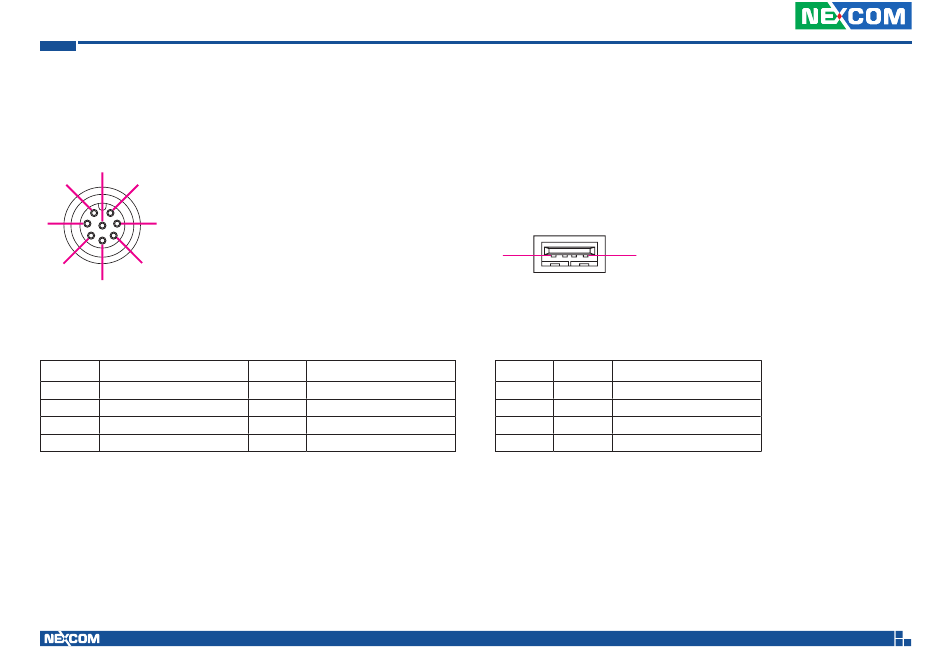

CN1 Connector Pinout

8
2 1
3 7
6
4
5
Pin Definition
1 D-
3 VCC
5 D1
7 VCC
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 D+
4 GND
6 D+
8 GND

CN2 and CN3 Connector Pinouts

USB Connector

Connector location: CN2
1 4
CN1 Pin CN2 Pin
1 2
2 3
3 1
4 4
85
Definition
D-
D+
VCC
GND
