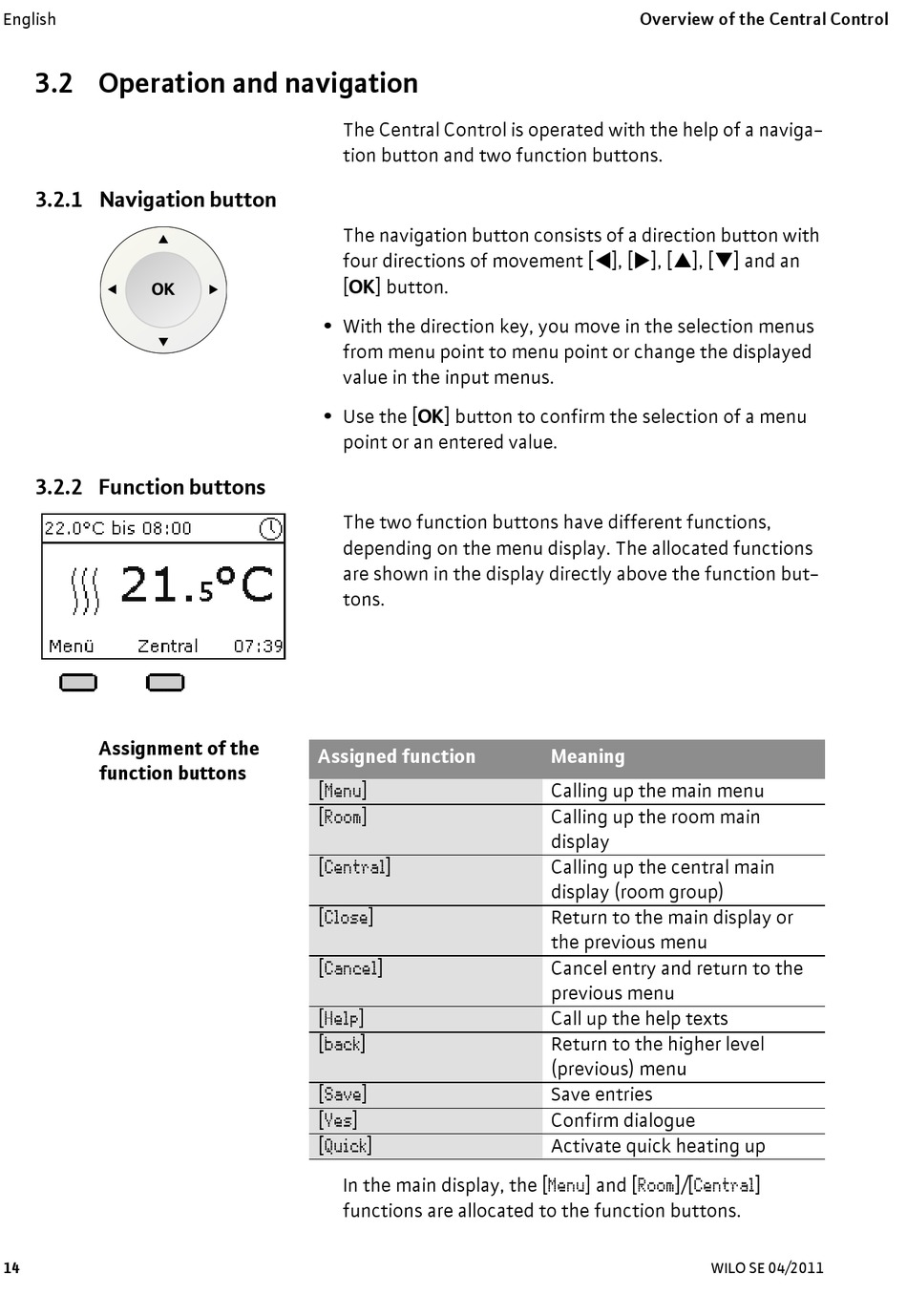

3.2 Operation and navigation

3.2.1 Navigation button

OK

3.2.2 Function buttons

Assignment of the
function buttons
14
The Central Control is operated with the help of a naviga-
tion button and two function buttons.
The navigation button consists of a direction button with
four directions of movement [], [], [], [] and an
[OK] button.
•
With the direction key, you move in the selection menus
from menu point to menu point or change the displayed
value in the input menus.
•
Use the [OK] button to confirm the selection of a menu
point or an entered value.
The two function buttons have different functions,
depending on the menu display. The allocated functions
are shown in the display directly above the function but-
tons.
Assigned function
[Menu]
[Room]
[Central]
[Close]
[Cancel]
[Help]
[back]
[Save]
[Yes]
[Quick]
In the main display, the [Menu] and [Room]/[Central]
functions are allocated to the function buttons.
Overview of the Central Control
Meaning
Calling up the main menu
Calling up the room main
display
Calling up the central main
display (room group)
Return to the main display or
the previous menu
Cancel entry and return to the
previous menu
Call up the help texts
Return to the higher level
(previous) menu
Save entries
Confirm dialogue
Activate quick heating up
