3.1.2 Central main display (room group)

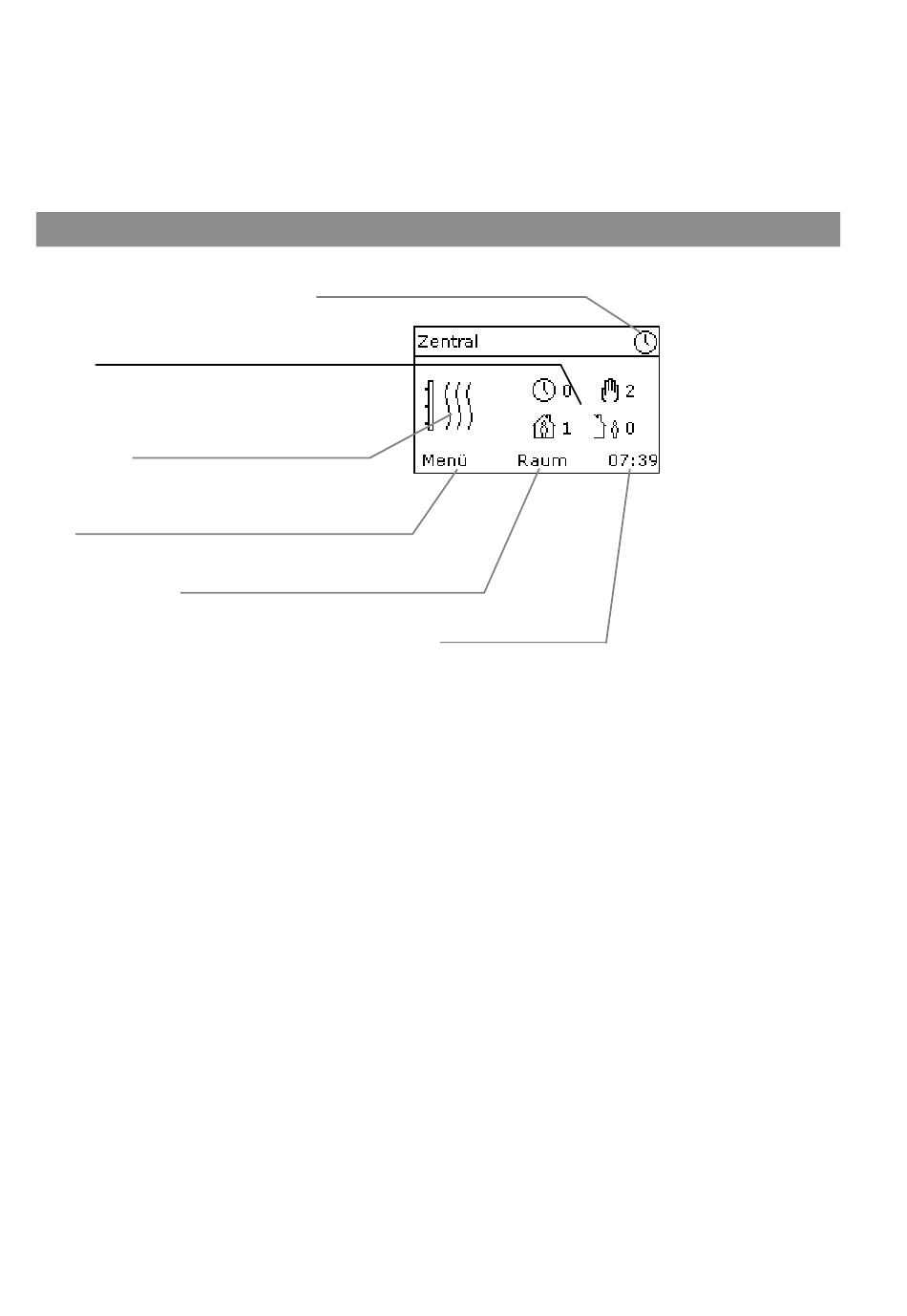

Fig. 3: Central display elements (display)
Room group status [page 12]
System status [page 12]
Navigating in the selection menus [page 15]
Central room mode
System status
Room group status
12
The central main display shows various items of status
information for the rooms of a room group connected to
the Central Control.
Central room mode [page 12]
Changing main display [page 15]
The currently central active time profile for all the rooms
which are together in the room group of the Central
Control will be displayed by the central room mode
[4.1 Principle of operation, page 19]. The central room
mode can also be an automatically triggered operating
mode (e.g., summer operation).
This symbol displays the current operating status of the
Geniax system (e.g., heating mode, fault). See section
10 Symbols [page 99]. The percentage of centrally con-
trolled rooms can be read at the filling level bar. The three
markings correspond to 25%, 50% and 75%.
The symbols inform you about the room mode of all the
rooms connected to the Central Control. The digits after
the time profile symbols indicate how many rooms are
currently active for the corresponding symboled room
mode. See sections 10 Symbols [page 99]. In this case,
it can concert and active room or a central time profile
[4.3 Central control, page 24].
Current time
Overview of the Central Control
