Chapter 2: Jumpers and Connectors

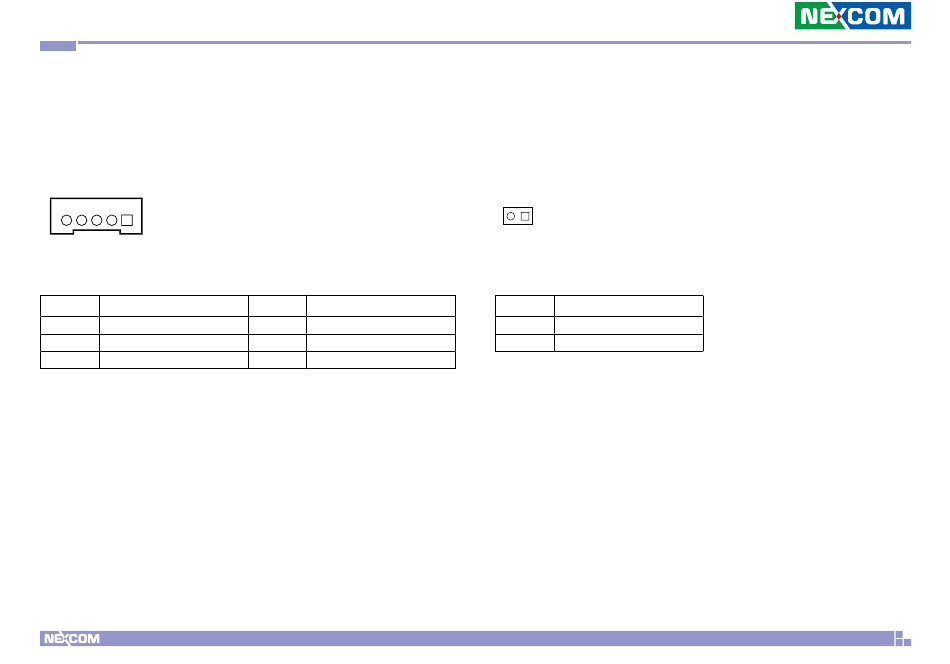

LED Connector

Connector type: 1x5 5-pin header JST, 2.0mm pitch
Connector location: LED_CON
5 1
Pin Definition
1 HDD_LED-
3 GND
5 PWR LED
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 HDD_LED+
4 Standby LED

HDD LED Connector

Connector type: 1x2 2-pin header, 2.54mm pitch
Connector location: JP1
2 1
Pin Definition
1 HDD_LED+
2 HDD_LED-
15
