Chapter 1: Product Introduction

Knowing Your XPPC 22-100A

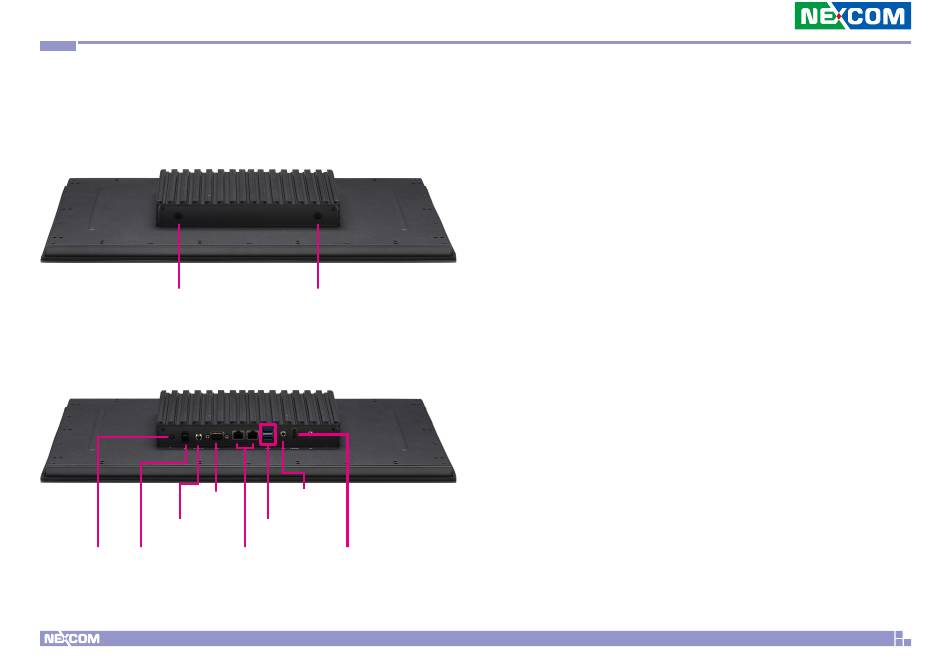

Rear Top

Antenna Hole

Rear Bottom

COM
DC Input
Power Power LAN1 & LAN2
LED Switch
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Antenna Hole
Line-out
USB 3.0
HDMI
Antenna Holes
The external antenna mounting holes are used to mount and connect
optional Wi-Fi antennas.
Power LED
Used to indicate the power status of the system.
Power Switch
Press to power-on or power-off the system.
19V DC Input
Used to plug a DC power cord.
COM
DB9 port used to connect RS232/422/485 compatible devices.
LAN1 & LAN2 (RJ45 with LEDs)
Used to connect the system to a local area network.
USB 3.0
Used to connect USB 3.0/2.0 devices.
Line-out
Used to connect a headphone or a speaker.
HDMI
Used to connect an HDMI interface monitor.
