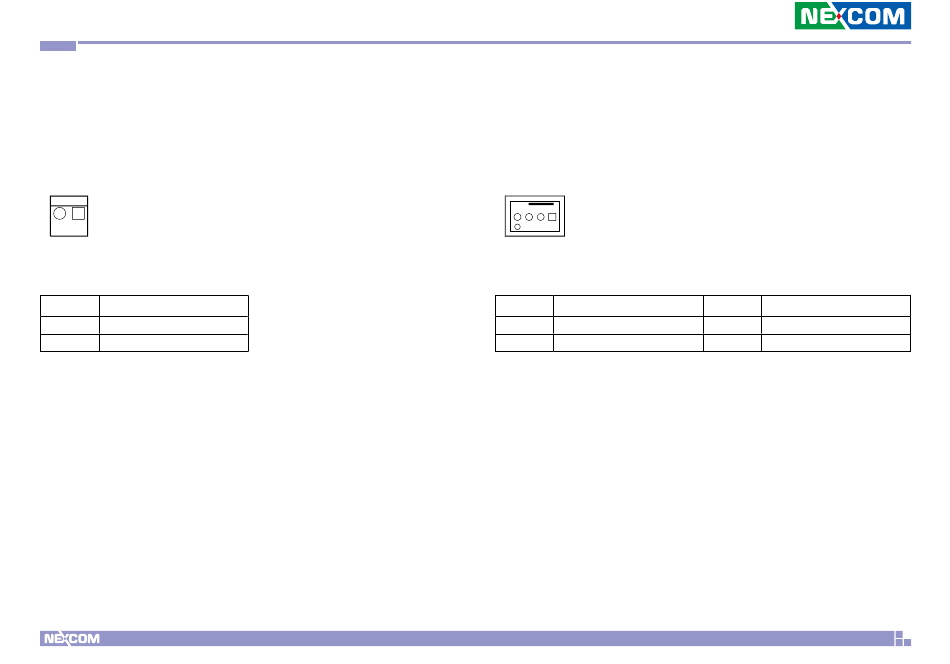

Chapter 2: Jumpers and Connectors
DC Power Input
Connector type: 1x2 2-pin header, 3.96mm pitch
Connector location: CON1
2
1
Pin
Definition
1
GND
2
+DC_IN
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
FAN Connector
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: FAN1
4
1
Pin
Definition
1
GND
3
FAN SPEED DETECT
18
Pin
Definition
2
+12V
4
FAN SPEED CONTROL
XPPC 22-100A User Manual
