Chapter 3: System Setup

Installing VESA Mount Kit

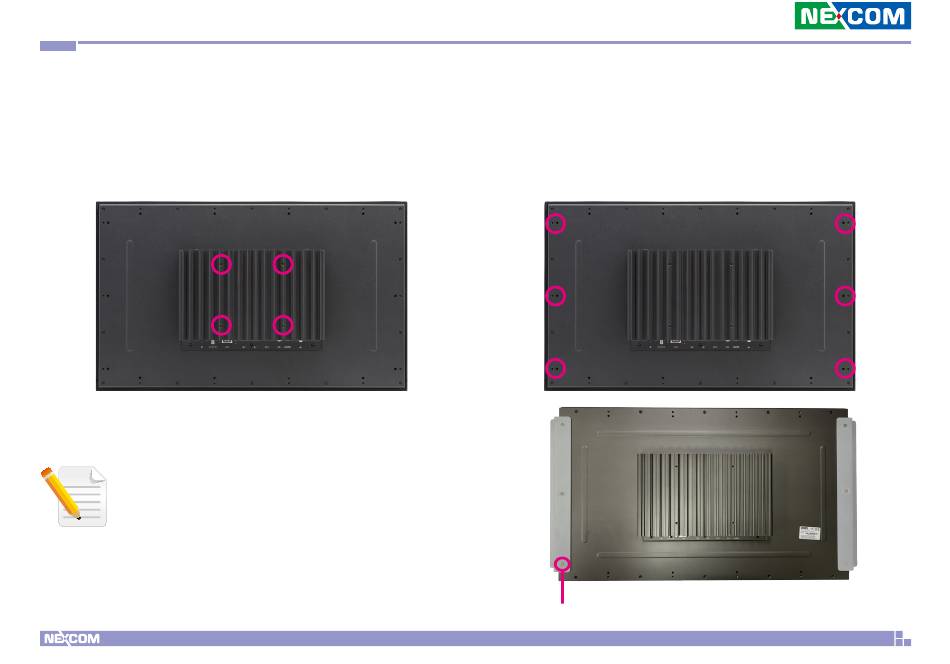

1. Align the mounting holes on the VESA mount bracket to the VESA

mounting holes on the back of the panel PC, then secure the VESA

mount bracket with screws.

Recommended screws for the VESA mount kit:

4 * M4x8 screws.

1. Turn to the rear side of the panel PC and align the mounting holes on the

open frame bracket to the open frame mounting holes on the panel PC,

then secure the open frame bracket with screws.

6 * Screws (F3x5 Nylok NI+Heat)
