4 Components

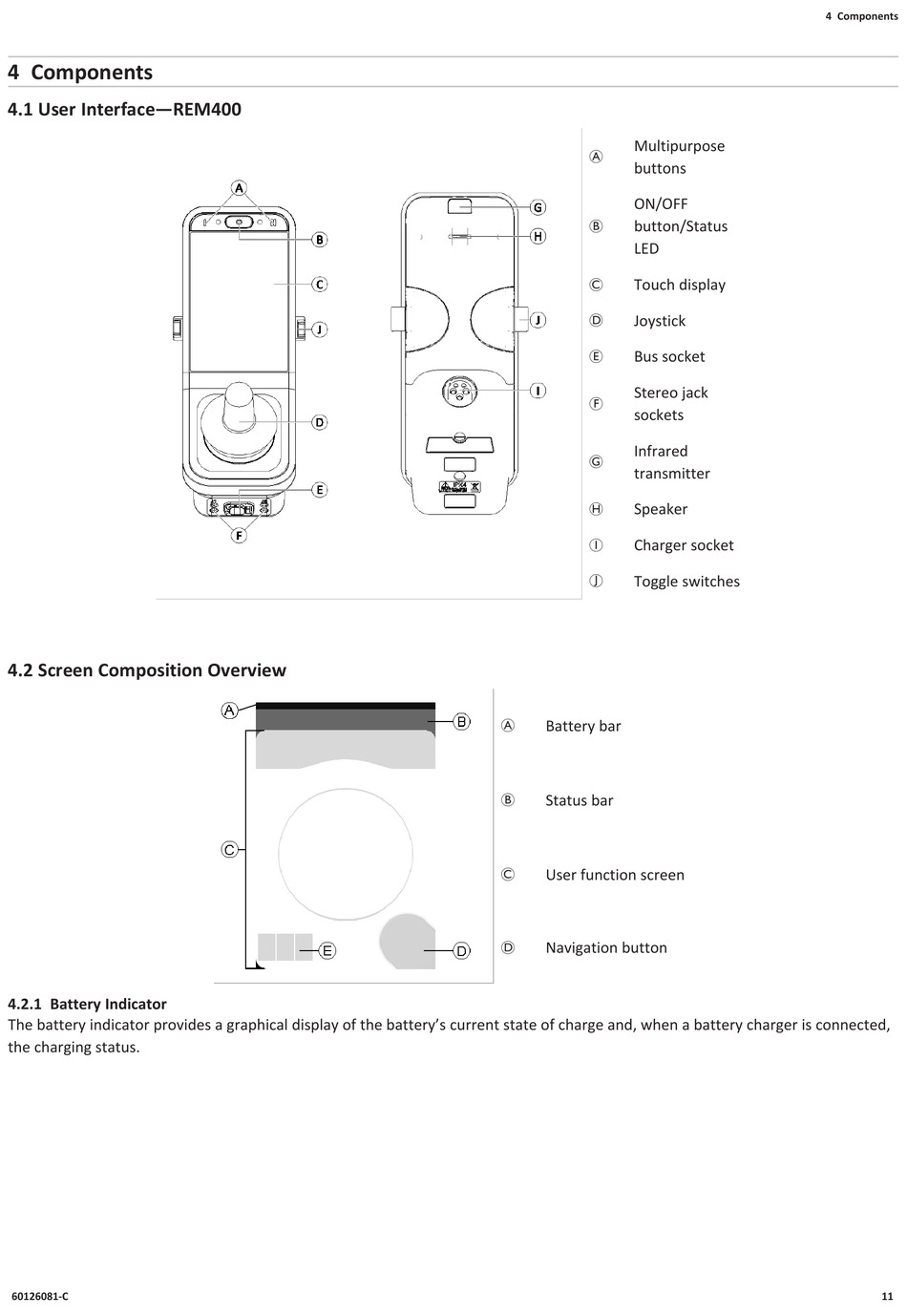

4.1 User Interface—REM400

4.2 Screen Composition Overview

4.2.1 Battery Indicator

The battery indicator provides a graphical display of the battery's current state of charge and, when a battery charger is connected,
the charging status.
60126081-C
Multipurpose
A
buttons
ON/OFF
B button/Status
LED
C Touch display
D Joystick
Bus socket
E
Stereo jack
F
sockets
Infrared
G
transmitter
Speaker
H
I Charger socket
J Toggle switches
Battery bar
A
Status bar
B
User function screen
C
D Navigation button
