4-Way Button Switch - Invacare LINX REM400 User Manual

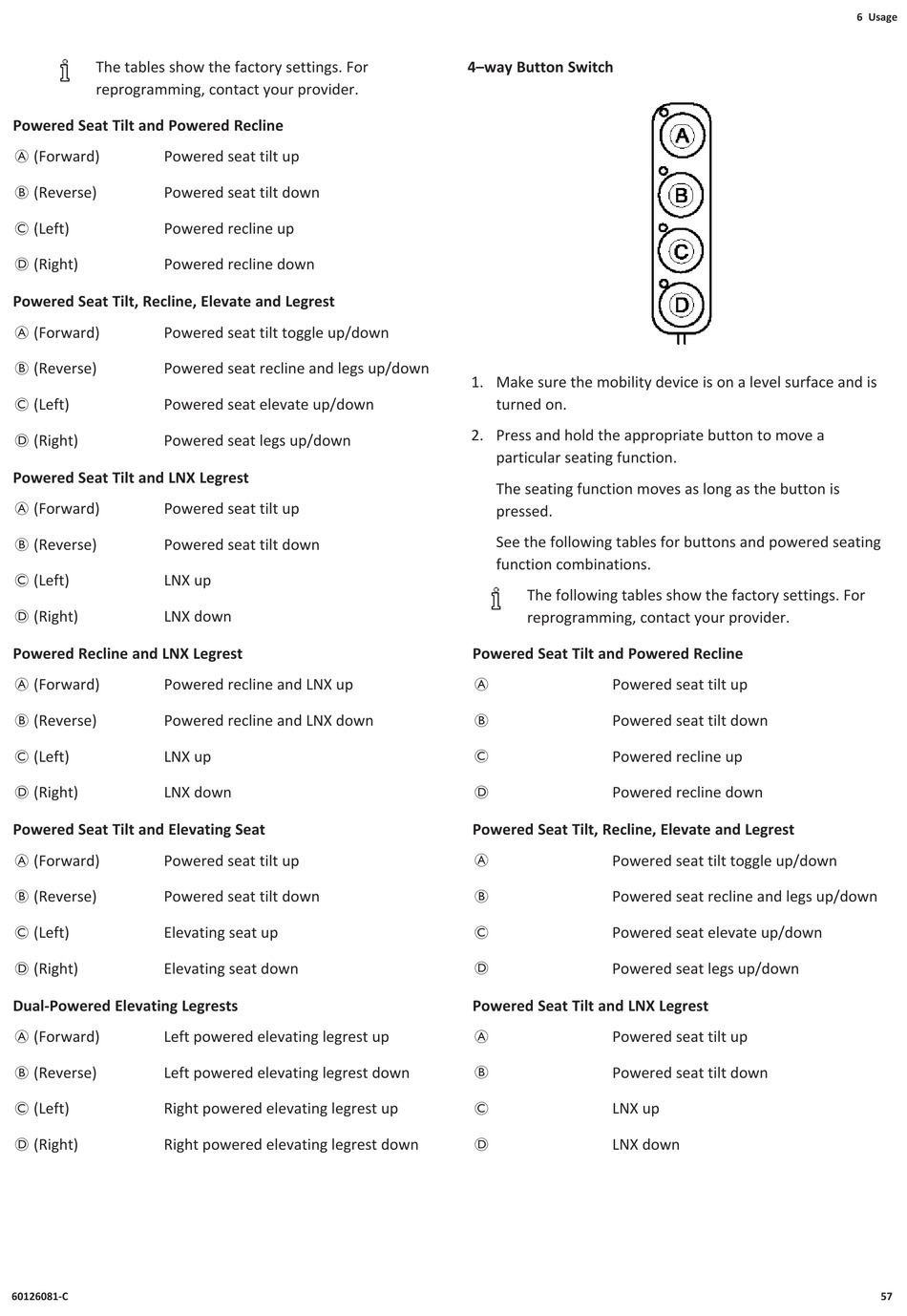

The tables show the factory settings. For
reprogramming, contact your provider.
Powered Seat Tilt and Powered Recline
A (Forward) Powered seat tilt up
B (Reverse) Powered seat tilt down
C (Left) Powered recline up
D (Right) Powered recline down
Powered Seat Tilt, Recline, Elevate and Legrest
A (Forward) Powered seat tilt toggle up/down
B (Reverse) Powered seat recline and legs up/down
C (Left) Powered seat elevate up/down
D (Right) Powered seat legs up/down
Powered Seat Tilt and LNX Legrest
A (Forward) Powered seat tilt up
B (Reverse) Powered seat tilt down
C (Left) LNX up
D (Right) LNX down
Powered Recline and LNX Legrest
A (Forward) Powered recline and LNX up
B (Reverse) Powered recline and LNX down
C (Left) LNX up
D (Right) LNX down
Powered Seat Tilt and Elevating Seat
A (Forward) Powered seat tilt up
B (Reverse) Powered seat tilt down
C (Left) Elevating seat up
D (Right) Elevating seat down
Dual-Powered Elevating Legrests
A (Forward) Left powered elevating legrest up
B (Reverse) Left powered elevating legrest down
C (Left) Right powered elevating legrest up
D (Right) Right powered elevating legrest down
60126081-C
4–way Button Switch
1. Make sure the mobility device is on a level surface and is
turned on.
2. Press and hold the appropriate button to move a
particular seating function.
The seating function moves as long as the button is
pressed.
See the following tables for buttons and powered seating
function combinations.
The following tables show the factory settings. For
reprogramming, contact your provider.
Powered Seat Tilt and Powered Recline
A Powered seat tilt up
B Powered seat tilt down
C Powered recline up
D Powered recline down
Powered Seat Tilt, Recline, Elevate and Legrest
A Powered seat tilt toggle up/down
B Powered seat recline and legs up/down
C Powered seat elevate up/down
D Powered seat legs up/down
Powered Seat Tilt and LNX Legrest
A Powered seat tilt up
B Powered seat tilt down
C LNX up
LNX down
D
6 Usage
57
