LiNX® Control System

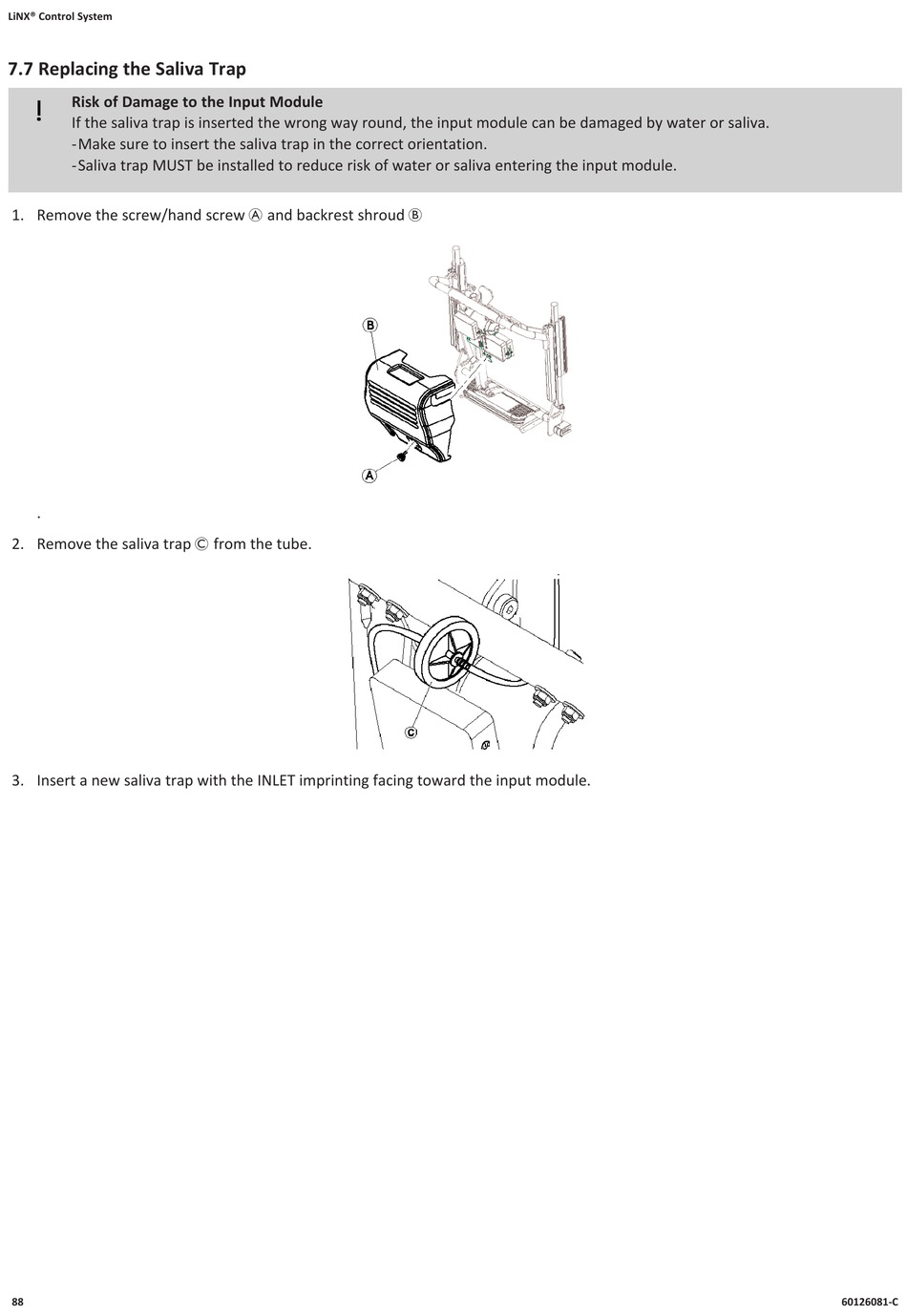

7.7 Replacing the Saliva Trap

Risk of Damage to the Input Module
If the saliva trap is inserted the wrong way round, the input module can be damaged by water or saliva.
-Make sure to insert the saliva trap in the correct orientation.
-Saliva trap MUST be installed to reduce risk of water or saliva entering the input module.
1. Remove the screw/hand screw A and backrest shroud B
.
2. Remove the saliva trap C from the tube.
3. Insert a new saliva trap with the INLET imprinting facing toward the input module.
88 60126081-C
