If the remote is powered up, the battery gauge indicates the
system is connected to the charger by displaying a charge
sequence and then displaying the approximate battery charge
state at the end of the charge sequence.
The LiNX system does not have to powered up when charging
the batteries; however, if it is not powered up, the battery
gauge does not indicate the charging state. For more
information about the charging state, refer to the charger user
manual or the power wheelchair base user manual.
While charging, the wheelchair is in drive inhibit mode. For
more information about drive inhibit mode, refer to 8.3 Drive
Inhibit Indication, page 91.
NEW Batteries Only—The wheelchair power must be
on during charging to ensure accurate battery charge
levels display on the remote. New batteries must be
fully charged. The battery synchronization procedure
MUST be performed within 24 hours of powering on
the wheelchair. The battery synchronization procedure
can be found in the LiNX service manual and must be
performed by a provider or qualified technician.

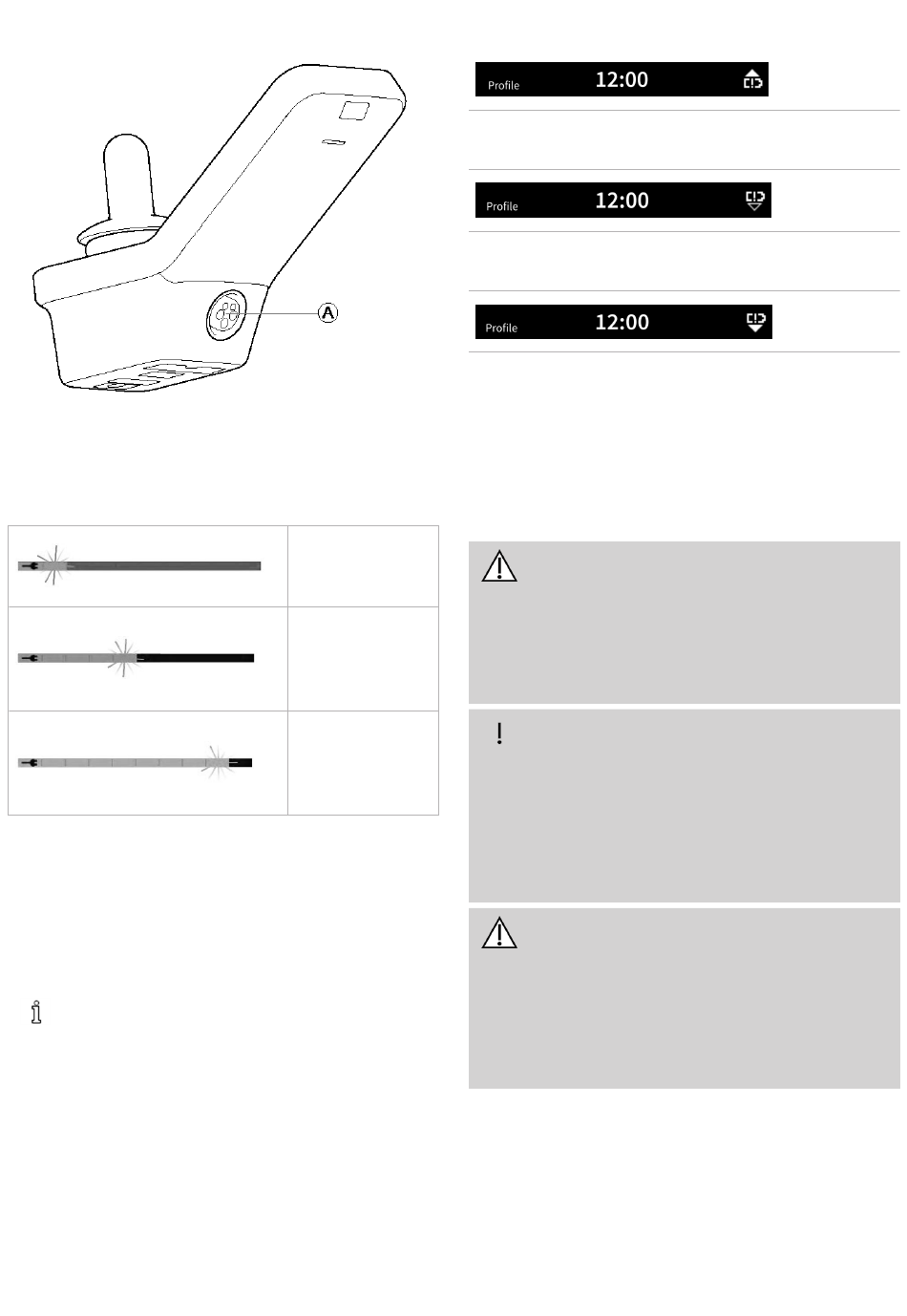

6.21.1 Battery Alarms

Three battery alarms display on the right-hand side of the
status bar:
60126081-C
Battery bar displays
red when charge is
<20%
Battery bar displays
orange when
charge is between
20 and 60%
Battery bar displays
green when charge
is between 60 and
100%
This displays if the batteries are overcharged. Disconnect the
battery charger immediately.
This displays if the batteries are empty. Power down the
wheelchair, and charge the batteries immediately.
This displays if the battery voltage falls below the voltage set
by Cut Off Voltage. This indicates the battery is empty, and
battery damage occurs if the battery is discharged any
further. The horn also sounds once every 10 seconds for the
duration of active deep discharge status. Power down the
wheelchair, and charge the batteries immediately.

6.22 Using the USB Charger

WARNING!
Risk of Injury
If you use a mobile phone while operating the
mobility device, accidents could lead to injury or
property damage.
-Only use a mobile phone in conjunction with
hands-free equipment to operate the mobility
device while driving.
Risk of Property Damage
Handle the USB charger with care; otherwise, damage
could occur.
-Always keep the USB charger dry. If the USB charger
gets wet, let the USB charger dry before use.
-Do not use or store the USB charger in
dusty or dirty areas.
-Do not insert sharp objects into the USB ports.
WARNING!
Risk of Injury or Damage
Erratic or unintended movement of the wheelchair
may occur if wireless transmitters are connected to
the wheelchair. To avoid injury or damage:
-DO NOT use the USB charger connector as a wireless
transmitter.
-Only use the USB charger for the purposes described
in this manual.
With the USB charger, you can charge the battery of your
mobile phone or a compatible device when you do not have
access to a regular power source. Both USB ports can be used
at the same time, and each USB port has a charging current up
to 1 A.
6 Usage
Over voltage
Low voltage
Deep
discharge
