LiNX® Control System
Powered Recline and LNX Legrest
A Powered recline and LNX up
B Powered recline and LNX down
LNX up
C
D LNX down
Powered Seat Tilt and Elevating Seat
A Powered seat tilt up
Powered seat tilt down
B
C Elevating seat up
D Elevating seat down
Dual-Powered Elevating Legrests
A Left powered elevating legrest up
B Left powered elevating legrest down
C Right powered elevating legrest up
D Right powered elevating legrest down

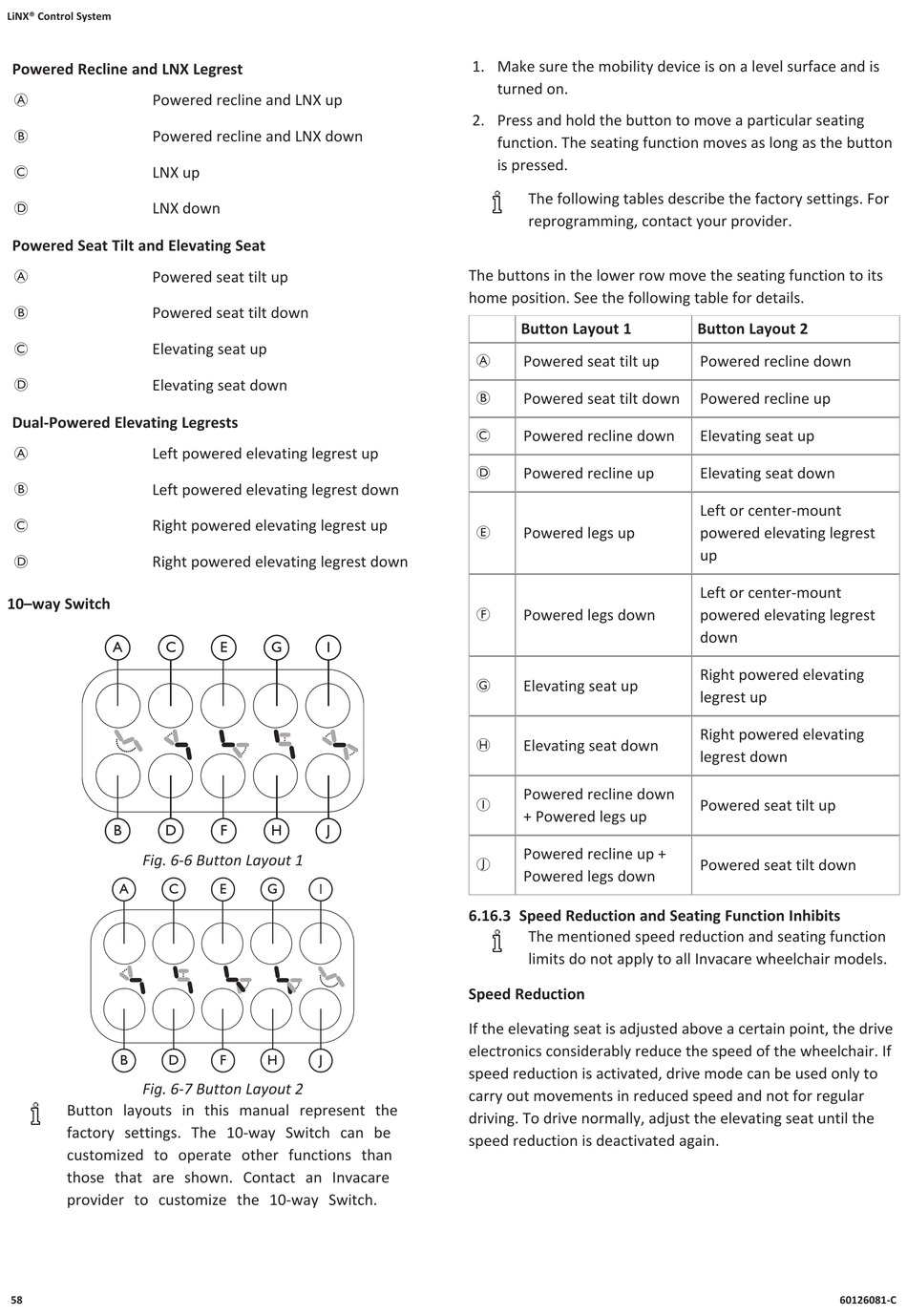

10–way Switch
Fig. 6-6 Button Layout 1
Fig. 6-7 Button Layout 2
Button layouts in this manual represent the
factory settings. The 10-way Switch can be
customized to operate other functions than
those that are shown. Contact an Invacare
provider to customize the 10-way Switch.
58
1. Make sure the mobility device is on a level surface and is
turned on.
2. Press and hold the button to move a particular seating
function. The seating function moves as long as the button
is pressed.
The following tables describe the factory settings. For
reprogramming, contact your provider.
The buttons in the lower row move the seating function to its
home position. See the following table for details.
Button Layout 1
A Powered seat tilt up
B Powered seat tilt down
C Powered recline down
D Powered recline up
Powered legs up
E
F Powered legs down
Elevating seat up
G
H Elevating seat down
Powered recline down
I
+ Powered legs up
Powered recline up +
J
Powered legs down

6.16.3 Speed Reduction and Seating Function Inhibits

The mentioned speed reduction and seating function
limits do not apply to all Invacare wheelchair models.

Speed Reduction

If the elevating seat is adjusted above a certain point, the drive
electronics considerably reduce the speed of the wheelchair. If
speed reduction is activated, drive mode can be used only to
carry out movements in reduced speed and not for regular
driving. To drive normally, adjust the elevating seat until the
speed reduction is deactivated again.
Button Layout 2
Powered recline down
Powered recline up
Elevating seat up
Elevating seat down
Left or center-mount
powered elevating legrest
up
Left or center-mount
powered elevating legrest
down
Right powered elevating
legrest up
Right powered elevating
legrest down
Powered seat tilt up
Powered seat tilt down
