LiNX® Control System

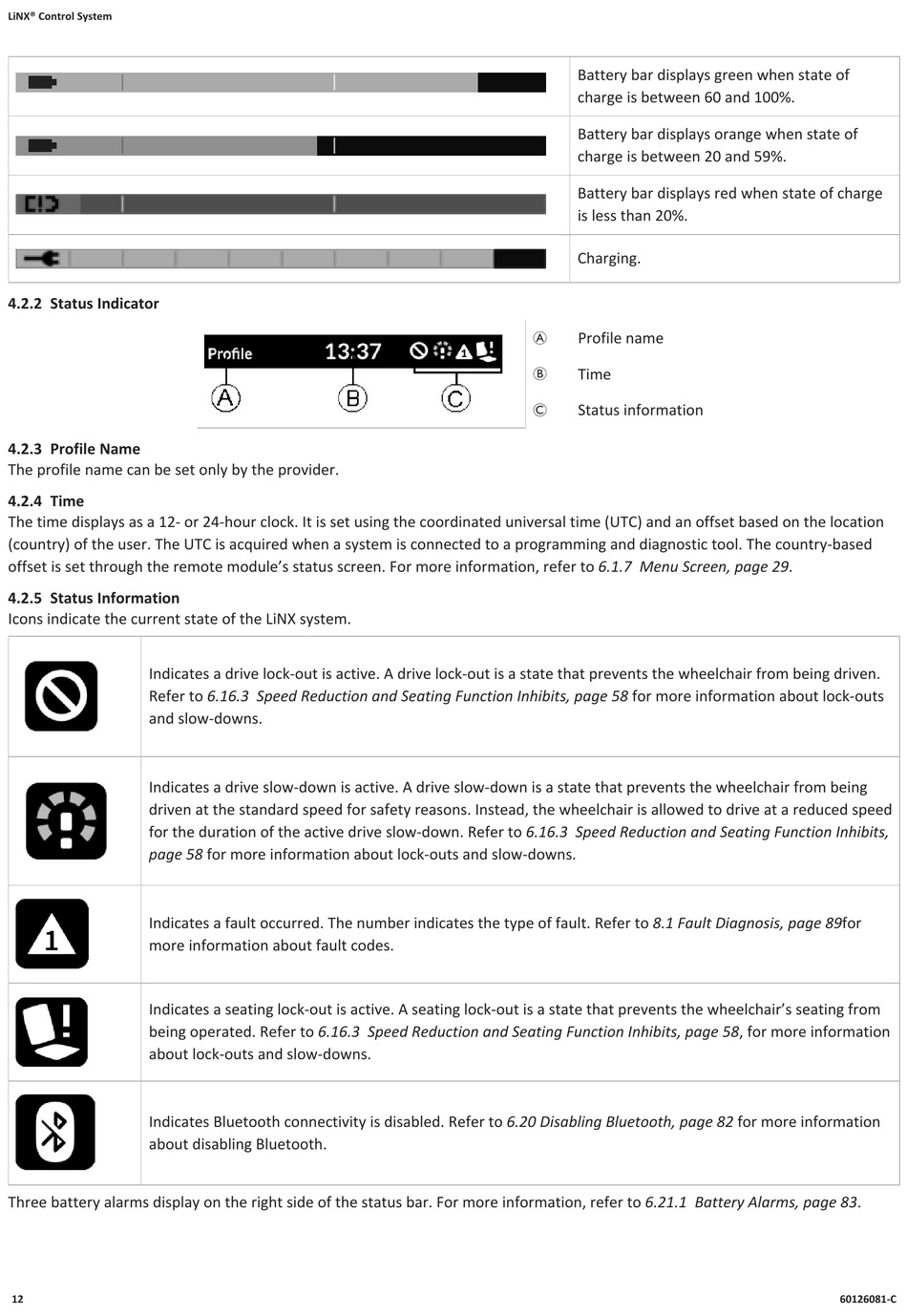

4.2.2 Status Indicator

4.2.3 Profile Name

The profile name can be set only by the provider.

4.2.4 Time

The time displays as a 12- or 24-hour clock. It is set using the coordinated universal time (UTC) and an offset based on the location
(country) of the user. The UTC is acquired when a system is connected to a programming and diagnostic tool. The country-based
offset is set through the remote module's status screen. For more information, refer to 6.1.7 Menu Screen, page 29.

4.2.5 Status Information

Icons indicate the current state of the LiNX system.
Indicates a drive lock-out is active. A drive lock-out is a state that prevents the wheelchair from being driven.
Refer to 6.16.3 Speed Reduction and Seating Function Inhibits, page 58 for more information about lock-outs
and slow-downs.
Indicates a drive slow-down is active. A drive slow-down is a state that prevents the wheelchair from being
driven at the standard speed for safety reasons. Instead, the wheelchair is allowed to drive at a reduced speed
for the duration of the active drive slow-down. Refer to 6.16.3 Speed Reduction and Seating Function Inhibits,
page 58 for more information about lock-outs and slow-downs.
Indicates a fault occurred. The number indicates the type of fault. Refer to 8.1 Fault Diagnosis, page 89for
more information about fault codes.
Indicates a seating lock-out is active. A seating lock-out is a state that prevents the wheelchair's seating from
being operated. Refer to 6.16.3 Speed Reduction and Seating Function Inhibits, page 58, for more information
about lock-outs and slow-downs.
Indicates Bluetooth connectivity is disabled. Refer to 6.20 Disabling Bluetooth, page 82 for more information
about disabling Bluetooth.
Three battery alarms display on the right side of the status bar. For more information, refer to 6.21.1 Battery Alarms, page 83.
12
Battery bar displays green when state of
charge is between 60 and 100%.
Battery bar displays orange when state of
charge is between 20 and 59%.
Battery bar displays red when state of charge
is less than 20%.
Charging.
A Profile name
B Time
Status information
C
