3. Give a short input to the right B to turn on/off the
position lights.
4. Give a short input to the left C to turn on/off the hazard
lights.
5. Give a long input to the left or right D to turn on/off the
left or right turn signal.
Activate a drive function screen to drive normally
while the position and hazard lights remain turned on.
After more than 10 seconds, the turn signals turn off.

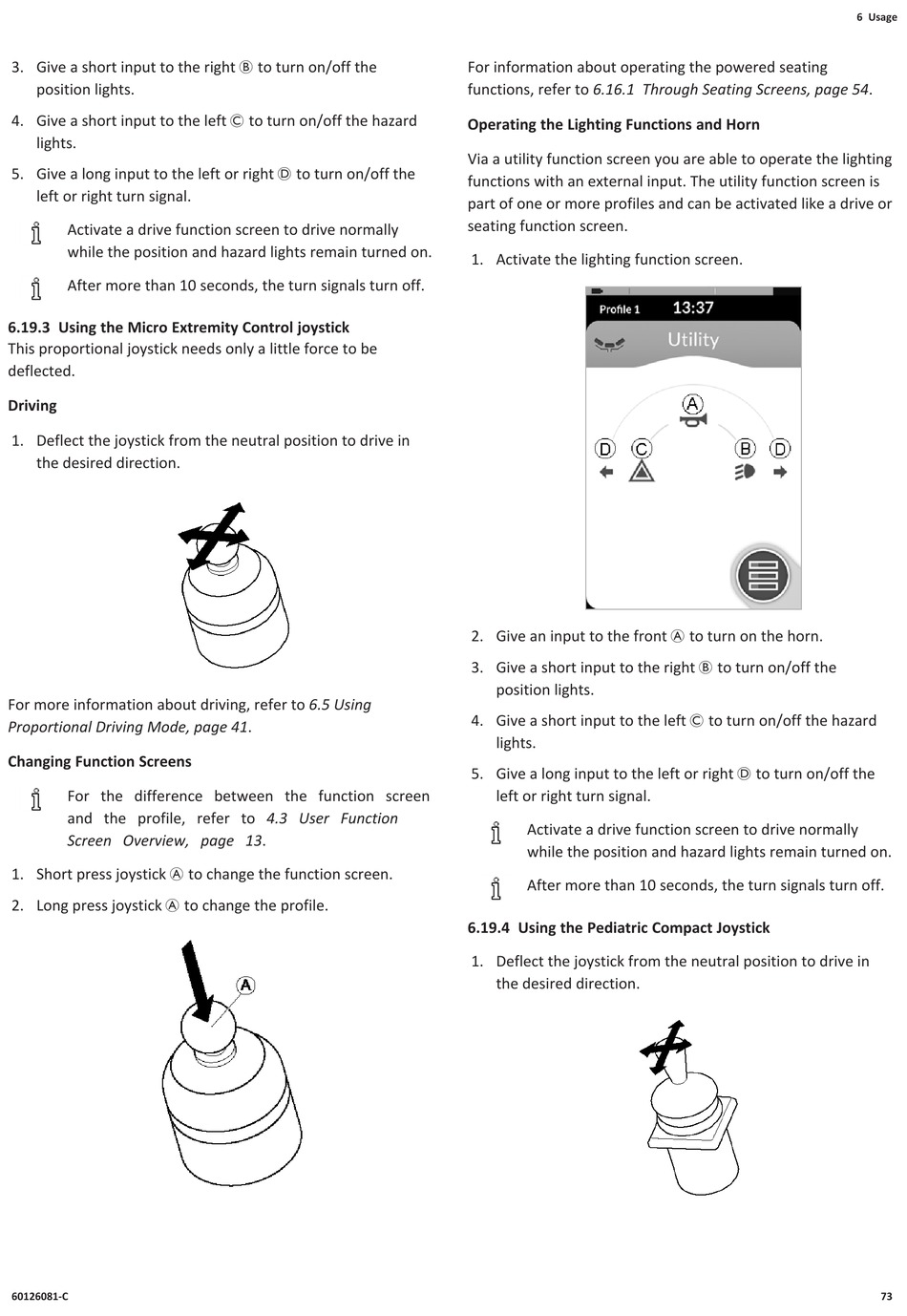

6.19.3 Using the Micro Extremity Control joystick

This proportional joystick needs only a little force to be
deflected.

Driving

1. Deflect the joystick from the neutral position to drive in
the desired direction.
For more information about driving, refer to 6.5 Using
Proportional Driving Mode, page 41.

Changing Function Screens

For the difference between the function screen
and the profile, refer to 4.3 User Function
Screen Overview, page 13.
1. Short press joystick A to change the function screen.
2. Long press joystick A to change the profile.
60126081-C
For information about operating the powered seating
functions, refer to 6.16.1 Through Seating Screens, page 54.

Operating the Lighting Functions and Horn

Via a utility function screen you are able to operate the lighting
functions with an external input. The utility function screen is
part of one or more profiles and can be activated like a drive or
seating function screen.
1. Activate the lighting function screen.
2. Give an input to the front A to turn on the horn.
3. Give a short input to the right B to turn on/off the
position lights.
4. Give a short input to the left C to turn on/off the hazard
lights.
5. Give a long input to the left or right D to turn on/off the
left or right turn signal.
Activate a drive function screen to drive normally
while the position and hazard lights remain turned on.
After more than 10 seconds, the turn signals turn off.

6.19.4 Using the Pediatric Compact Joystick

1. Deflect the joystick from the neutral position to drive in
the desired direction.
