LiNX® Control System

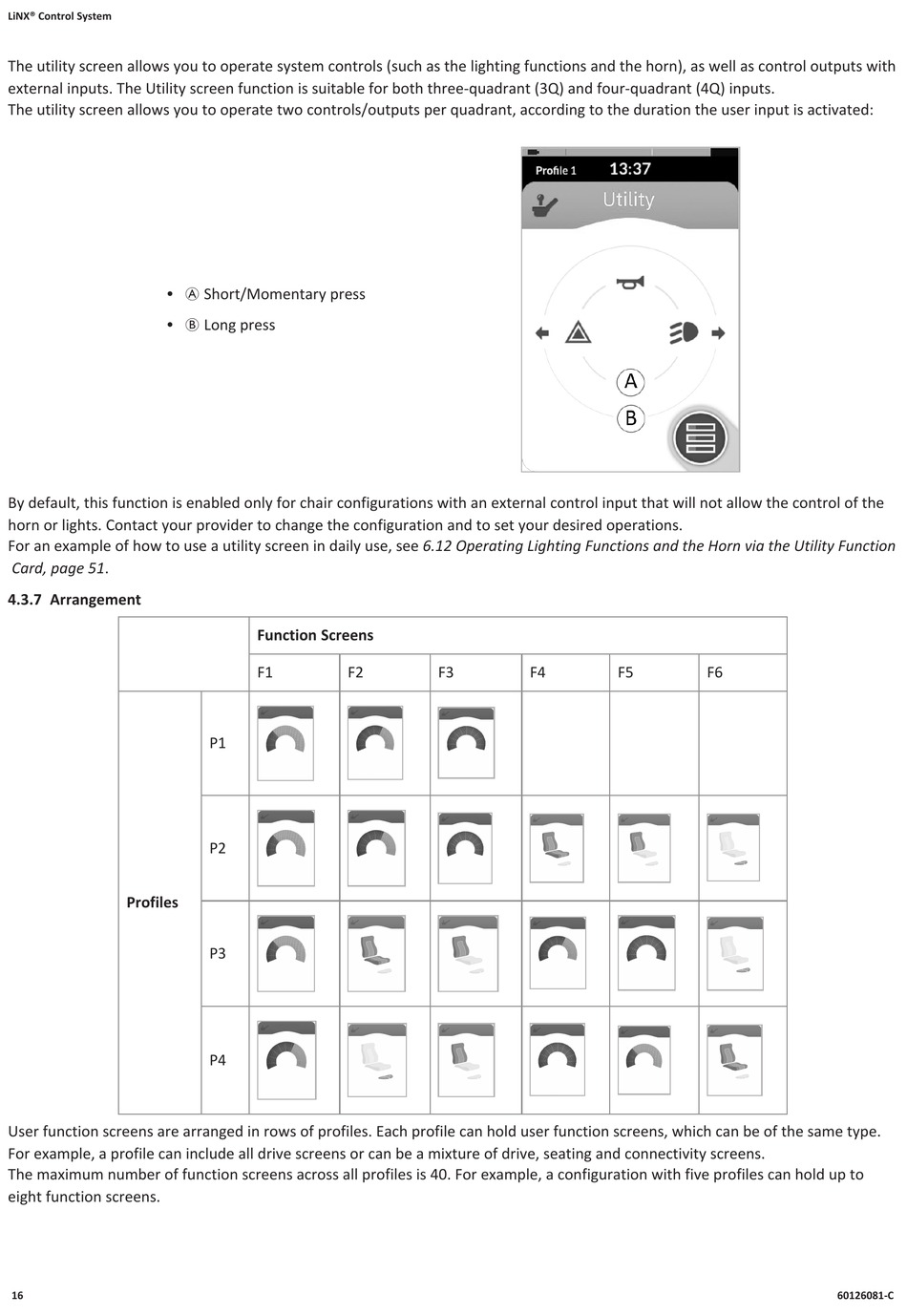

The utility screen allows you to operate system controls (such as the lighting functions and the horn), as well as control outputs with
external inputs. The Utility screen function is suitable for both three-quadrant (3Q) and four-quadrant (4Q) inputs.
The utility screen allows you to operate two controls/outputs per quadrant, according to the duration the user input is activated:
l
l
By default, this function is enabled only for chair configurations with an external control input that will not allow the control of the
horn or lights. Contact your provider to change the configuration and to set your desired operations.
For an example of how to use a utility screen in daily use, see 6.12 Operating Lighting Functions and the Horn via the Utility Function
Card, page 51.

4.3.7 Arrangement

Profiles
User function screens are arranged in rows of profiles. Each profile can hold user function screens, which can be of the same type.
For example, a profile can include all drive screens or can be a mixture of drive, seating and connectivity screens.
The maximum number of function screens across all profiles is 40. For example, a configuration with five profiles can hold up to
eight function screens.
16
A Short/Momentary press
B Long press
Function Screens
F1 F2
P1
P2
P3
P4
F3 F4 F5 F6
