4 Components

4.1 Attendant Control Unit

The remote is the input that operates the mobility device's
functions and defines the icon displayed.
1195718-A

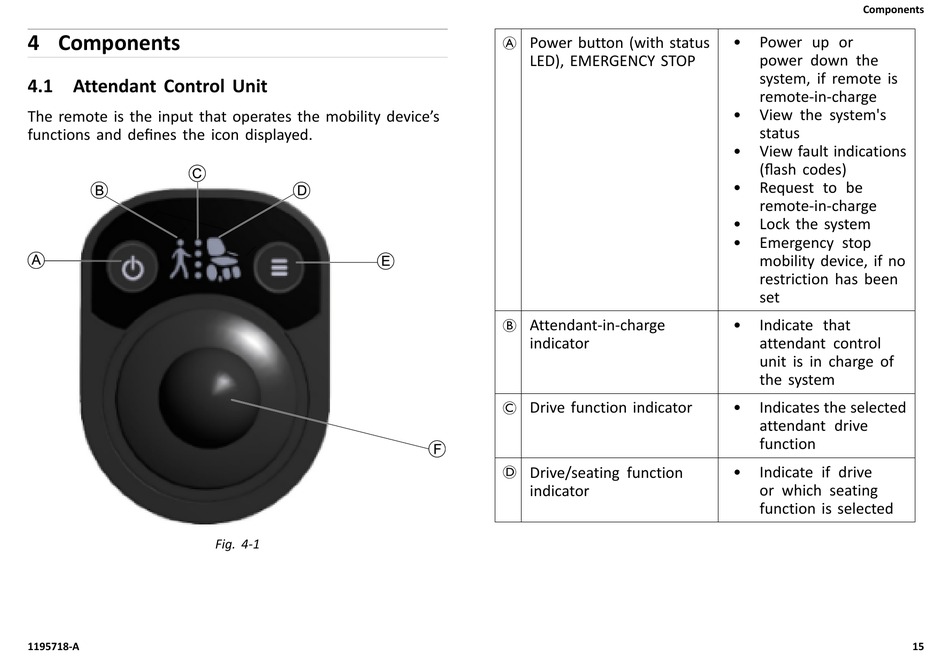

Fig. 4-1
A Power button (with status
LED), EMERGENCY STOP
B Attendant-in-charge
indicator
C Drive function indicator
D Drive/seating function
indicator
Components
• Power up or
power down the
system, if remote is
remote-in-charge
• View the system's
status
• View fault indications
(flash codes)
• Request to be
remote-in-charge
• Lock the system
• Emergency stop
mobility device, if no
restriction has been
set
• Indicate that
attendant control
unit is in charge of
the system
• Indicates the selected
attendant drive
function
• Indicate if drive
or which seating
function is selected
