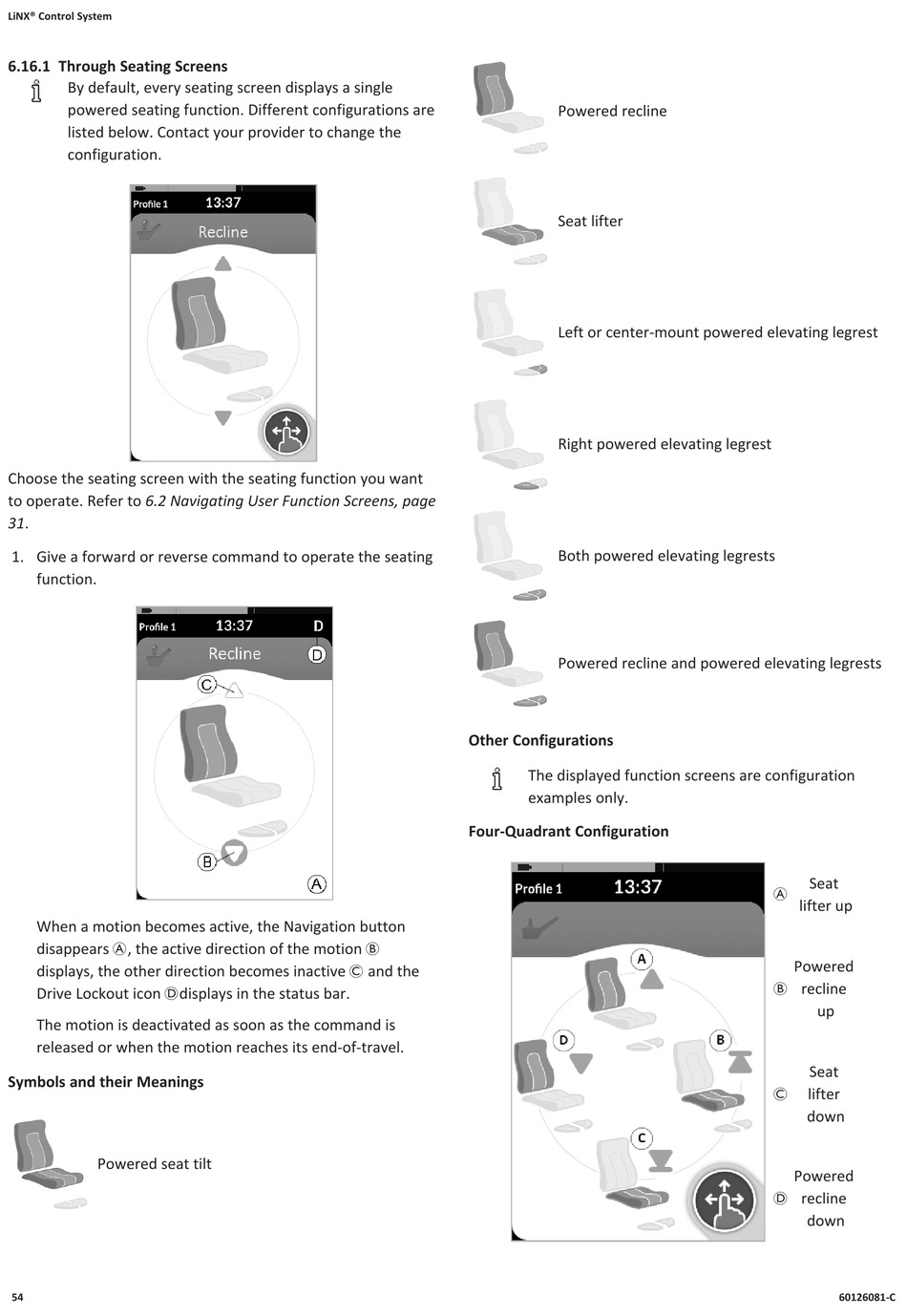

6.16.1 Through Seating Screens

By default, every seating screen displays a single
powered seating function. Different configurations are
listed below. Contact your provider to change the
configuration.
Choose the seating screen with the seating function you want
to operate. Refer to 6.2 Navigating User Function Screens, page
31.
1. Give a forward or reverse command to operate the seating
function.
When a motion becomes active, the Navigation button
disappears A, the active direction of the motion B
displays, the other direction becomes inactive C and the
Drive Lockout icon Ddisplays in the status bar.
The motion is deactivated as soon as the command is
released or when the motion reaches its end-of-travel.

Symbols and their Meanings

Powered seat tilt
54
Powered recline
Seat lifter
Left or center-mount powered elevating legrest
Right powered elevating legrest
Both powered elevating legrests
Powered recline and powered elevating legrests

Other Configurations

The displayed function screens are configuration
examples only.
Four-Quadrant Configuration
Seat
A
lifter up
Powered
B recline
up
Seat
C lifter
down
Powered
recline
D
down
