Air Pump Intake Filter Replacement (P/N 20010)

WARNING:
The System 83 Plus™ should be powered off when inspecting or replacing components to prevent
electrical shock and damage to the device.
1. Remove the black air pump intake filter by unscrewing the filter from the pump assembly.
2. Remove remaining PTFE tape debris and clean threads where the 1/4" NPT intake filter was removed.
3. Wrap PTFE tape on the new 1/4" NPT intake filter and thread new filter on air pump.
MAN–202

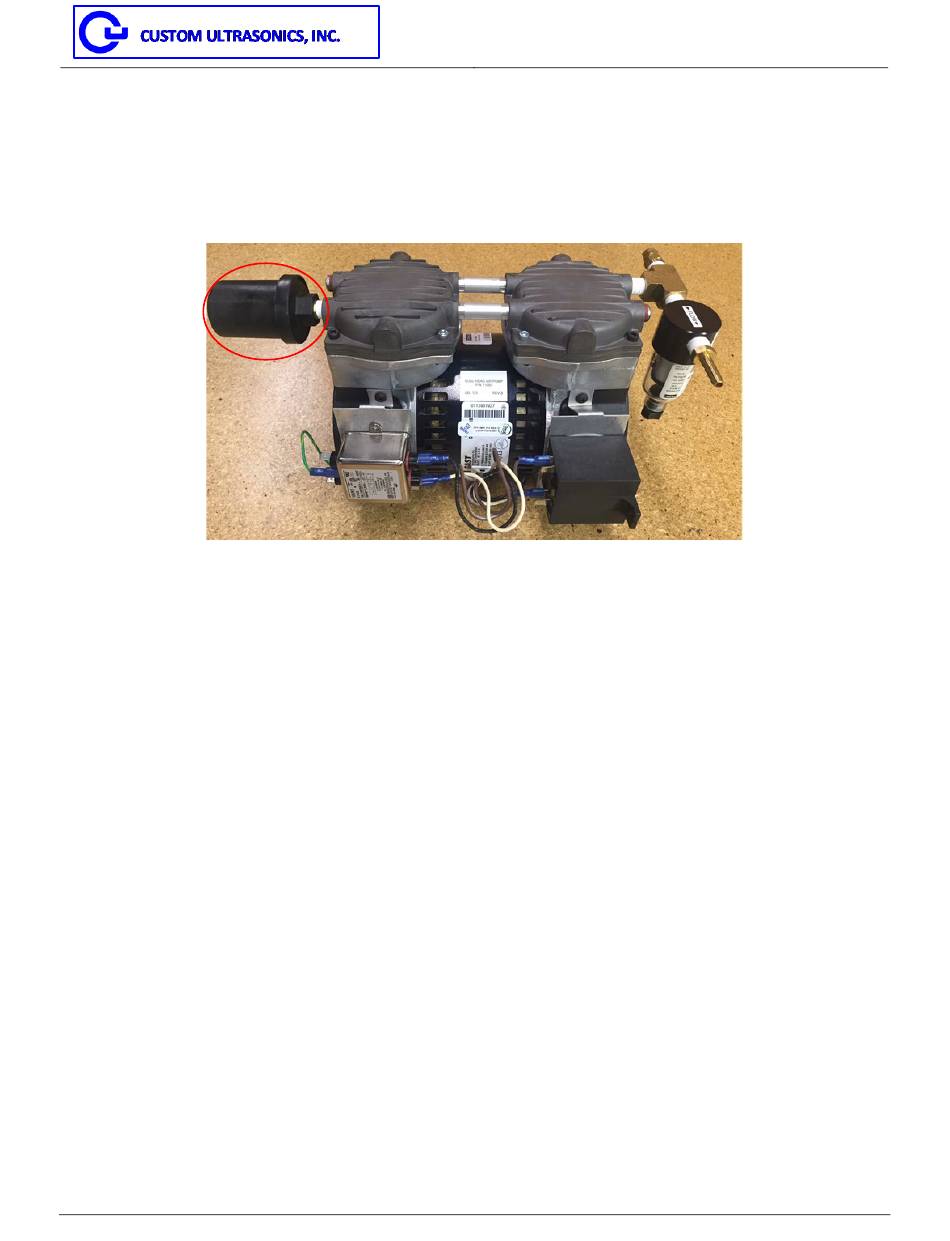

Illustration: Dual Head Air Pump and the Intake Filter
