System 83 Plus™ Washer/Disinfector
Service Manual

Service Screen

The service screen will be the used when testing and troubleshooting the System 83 Plus™. In the service screen,
the option is available to test the components, sensors, and printer.
CAUTION:
Safety Floats will not prevent overflowing while testing functions in the Service Screen.
To enter the service screen from the main menu screen press (S) or use the arrow keys to highlight the
(Service Screen) icon on the screen and press (Enter).
The service screen allows the user to activate each component or combination of components. A second column
will be seen on the service screen for System 83 Plus™ 9 devices. To activate a component, use the up and down
arrow keys to highlight the component and based on the bay in which the component is located, press (1) for bay 1
or (2) for bay 2, the corresponding indicator will illuminate and the component will activate. Deactivate the component,
using the same number key. To exit the service screen, press (F8) to return to the main menu screen.

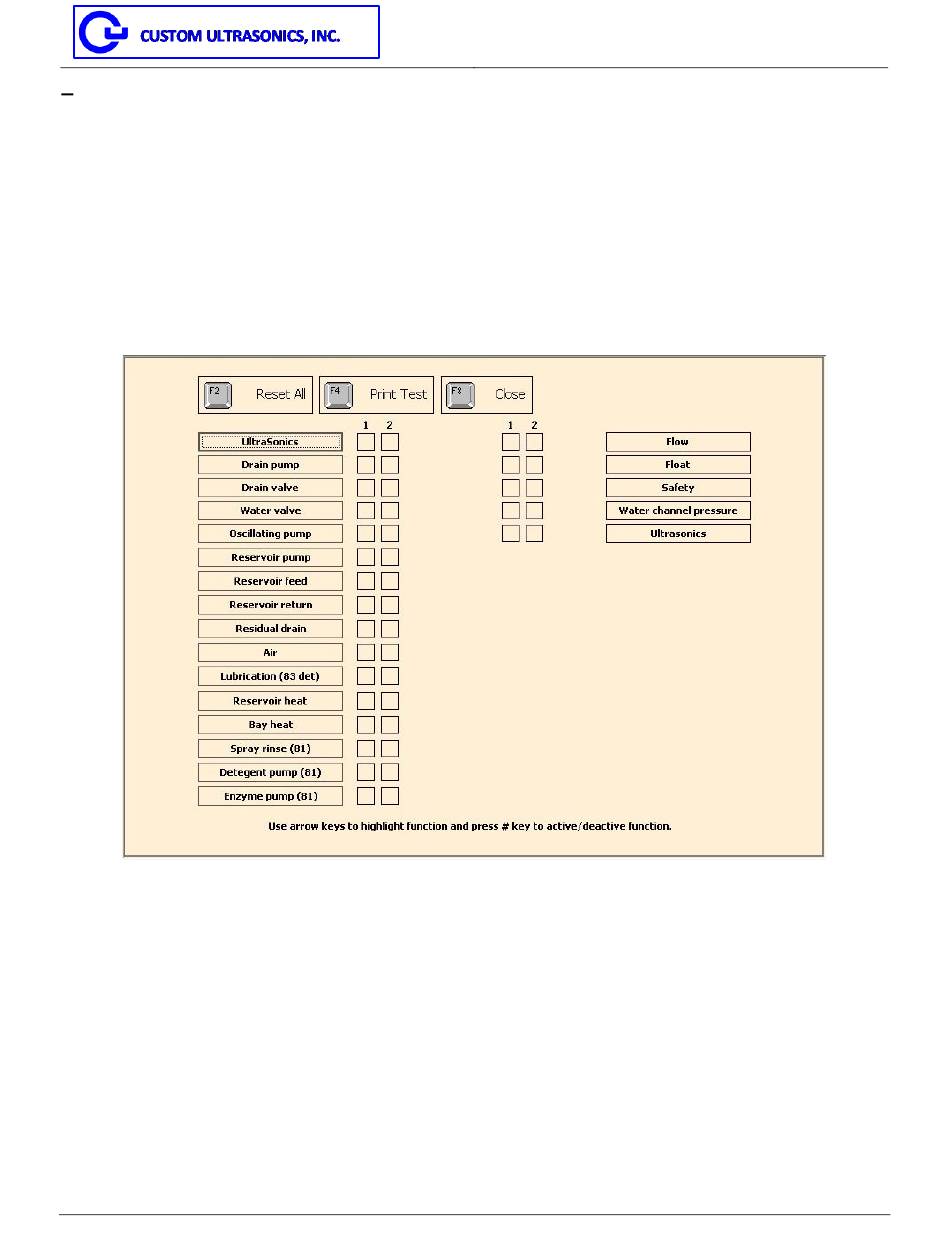

Illustration: Service Screen
MAN–202 Revision 03082022 Page 17 of 54
