Water Inlet Filtration System; 25 And 5 Micron Filter Replacement Procedure; Required Tools; Required Parts - CUSTOM ULTRASONICS 83 Plus System 2 Service Manual

Water Inlet Filtration System

25 and 5 Micron Filter Replacement Procedure

Replacement procedure for the 25 and 5 micron filters. Locate the water filtration system.

Required Tools

• Filter Wrench (P/N 13045)
Channel Lock Pliers
•
• PPE – Personnel Protective Equipment

Required Parts

• 5 Micron Filter
25 Micron Filter
•
•

Optional Parts

Filter Canister Housing O-ring
•

Filter Replacement

1. Close the hot and cold water inlet valves.
2. Enter the System 83 Plus™ service screen. Activate the water inlet valve to relieve pressure from the water
inlet filtration assembly.
3. Turn off the System 83 Plus™ by powering off the computer and turning the circuit breaker(s) off.
4. Remove the System 83 Plus™ electrical plug(s) from the wall outlet for safety.
5. Disassemble filter housing and empty the contents.
6. Remove and dispose of the filter cartridges. Filters are not reusable.
7. Clean the filter canisters and O-rings.
8. Replace O-rings if necessary.
9. Remove and clean the filter gauges. Then re-install the gauges.
10. Install a new 25 and 5 micron filter cartridge while taking care not to contaminate them. Expose only the O-
ring end of the filters from the packaging. Lubricate the O-rings with sterile water before forcefully seating
the filter cartridges into the filter head assembly. While holding the packaging, insert the O-ring end of the
filter cartridge into the filter head.
11. Reattach the 25 and 5 micron filter housings to the filter head assembly.
CAUTION: Rapid change over from air to water can result in filter damage.
12. Slowly open the hot and cold water inlet valves and allow the water to flow through the water inlet filtration
assembly until the canisters are completely full with no visible air pockets.
13. Fill and drain the processing chamber twice from the service screen to rinse the water inlet filtration assembly.
14. Press the rinse switch(es) on the front door. Activate the hand sprayer(s) directing the flow into the
processing chamber(s) and rinse the hand sprayer hose(s) with copious amounts of fresh water.
15. Complete the applicable information in the Filter and Gauge Log after the water filters have been replaced.
16. Apply supplied labels to the filter housings, indicating the date of filter installation.
MAN–202
15 PSI
DIFFERENTIAL
GAUGE 3
GAUGE 4
25 MICRON OUT
25 MICRON IN
5 MICRON IN

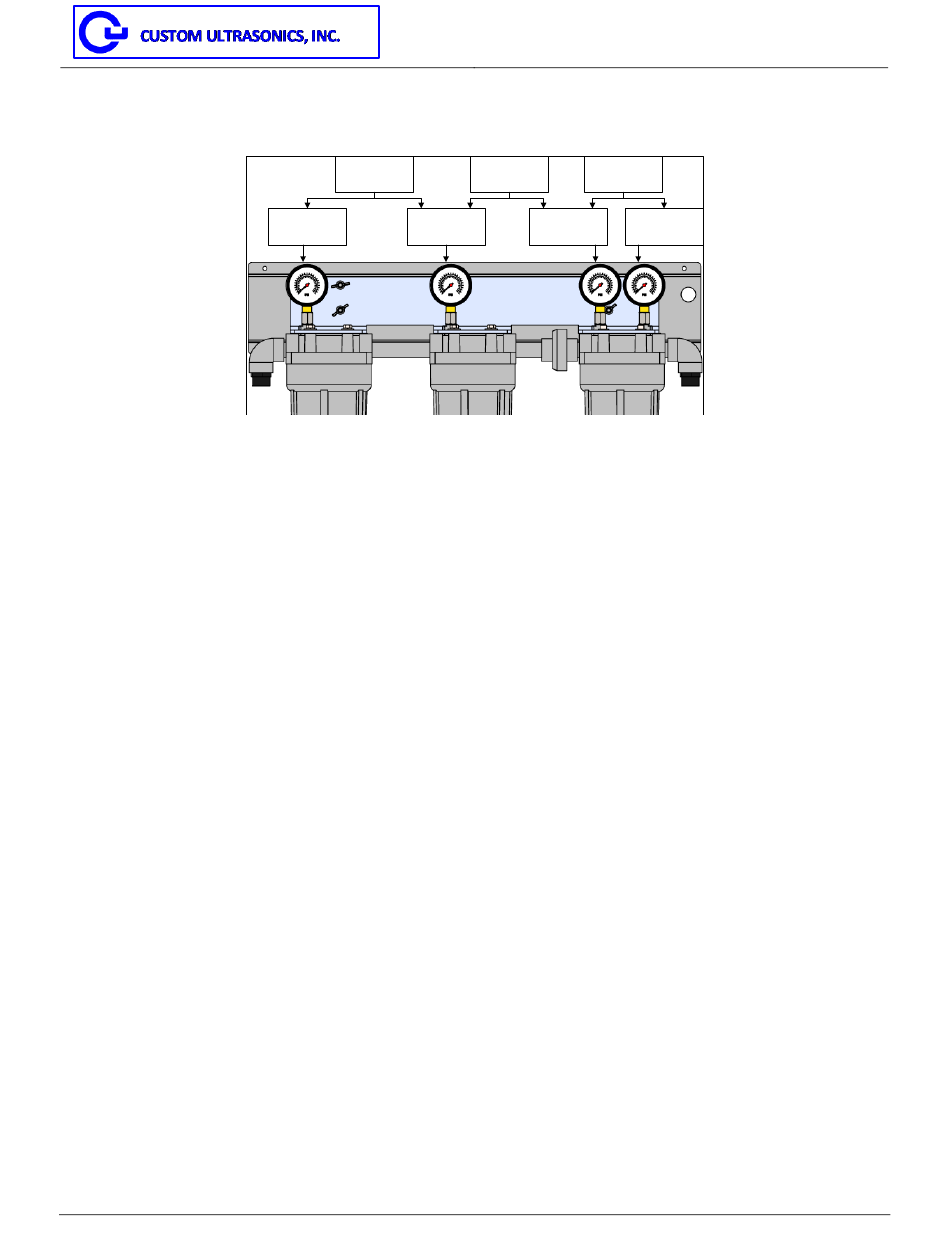

Illustration: Water Inlet Filtration System
