CUSTOM ULTRASONICS 83 Plus System 2 Service Manual page 31

25. Press the rinse switch(es) on the front door. Activate the hand sprayer(s) directing the flow into the
processing chamber(s) and rinse the hand sprayer hose(s) with copious amounts of fresh water.
26. Complete the applicable information in the Filter and Gauge Log after the water filters have been replaced.
27. Apply supplied labels to the filter housings, indicating the date of filter installation.

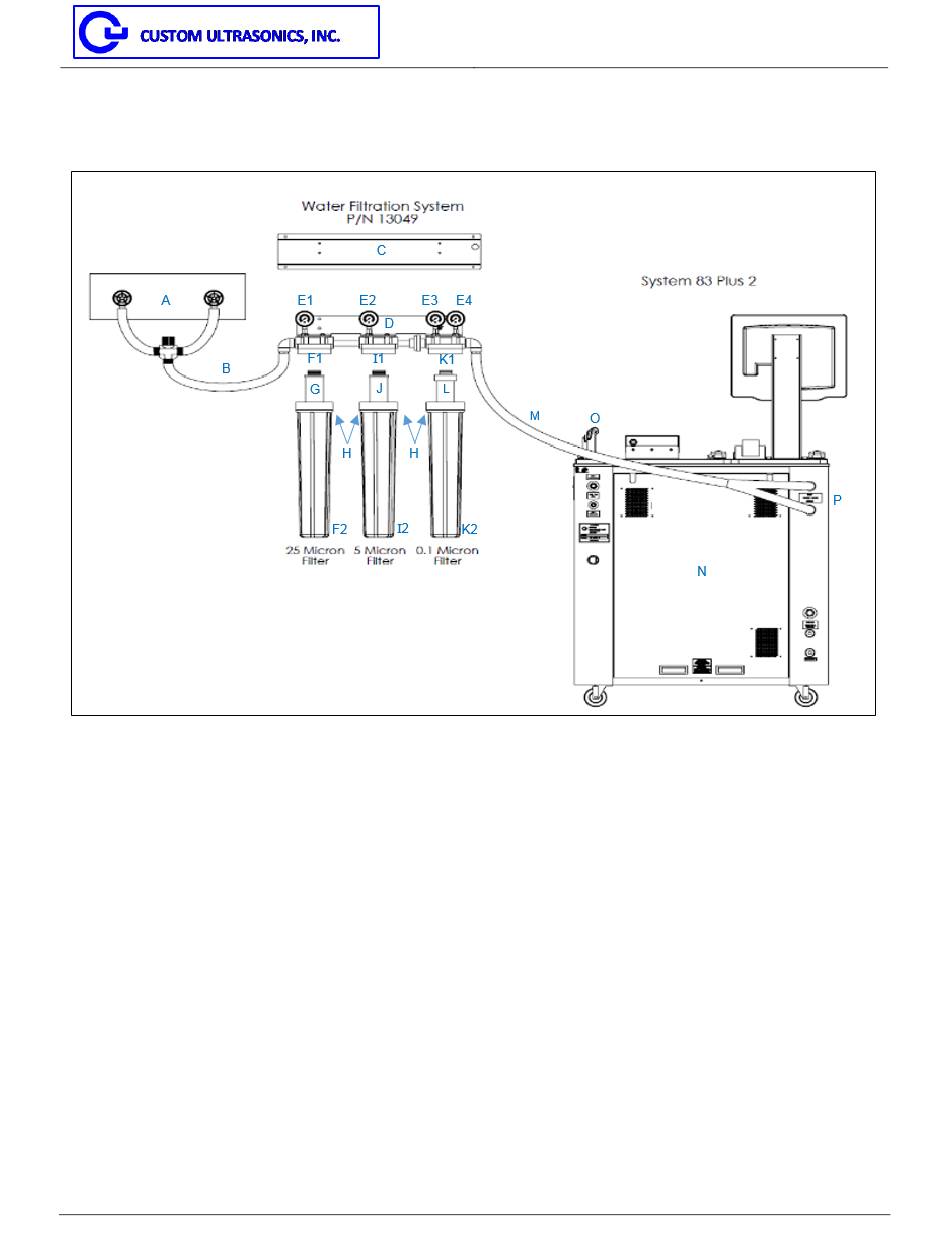

A Hot and cold water valves
B Water supply hose to 25 micron canister
C Wall mount bracket
D Water filter bracket
E1 25 micron filter inlet pressure gauge
E2 5 micron filter inlet pressure gauge
E3 0.1 micron filter inlet pressure gauge
E4 0.1 micron filter outlet pressure gauge
F1 25 micron filter canister head
F2 25 micron filter canister
G 25 micron filter
MAN–202
System 83 Plus™ Washer/Disinfector
H O-ring for filter canister(s)
I1 5 micron filter canister head
I2 5 micron filter canister
J 5 micron filter
K1 0.1 micron filter canister head
K2 0.1 micron filter canister
L 0.1 micron filter
M Water inlet hose and Y hose
N System 83 Plus™ Washer/Disinfector
O Hand spray nozzle
P Water inlet(s)
Revision 03082022
Service Manual
Page 31 of 54
