5.4 Mounting Instructions
The following are mounting instructions for the CF-5212 and CF-5222 fixed IP cameras.
Caution:
To avoid damage from overheating or unit failure, assure that there is sufficient temperature
regulation to support the unit's requirements (cooling/heating). Operating temperature should be kept
in the range -40° to 50°C (-40° to 122°F), with no more than 90% non-condensing humidity.
Attention:
Afin d'éviter tout dommage dû à une surchauffe ou toute panne de l'unité, assurez-vous que la
régulation de température est suffisante pour répondre aux exigences de l'unité
(refroidissement/chauffage). La température de fonctionnement doit être maintenue dans la plage
(-40° à 50°C/-40° à 122°F), sans condensation d'humidité supérieur à 90%.
To mount the camera, follow one of these procedures:
For outdoor installations using a typical protective camera housing:
a. Thread the wires through any of the infrastructure and brackets (e.g. pole bracket/corner
bracket/etc.) as needed as well as through the wall bracket arm.
b. Bolt the wall bracket (arm) to the prepared surface.
c. Loosen the screws or unlatch the camera housing lid, open the housing and loosen the
plastic cable glands (cable fittings).
d. Thread the cables through the cable glands into the camera housing.
e. Attach the camera housing to the wall bracket (arm) using the provided screws and
wrench.
f.
Remove the housing plate (base for camera) and using the provided camera mount screw,
thread the screw through the plate into the camera's bottom mounting socket.
g. Put the camera mounted on the base plate back in the housing. Adjust forward
positioning when you adjust the lens.
h. For housings with internal blowers and heaters, connect the wiring to the camera housing
terminals (power input) according to the manufacturer's instructions for heaters (heater
output) and fans (blower output) that the camera housing features. Connect any ground
(GND) to the camera housing ground connection.
22

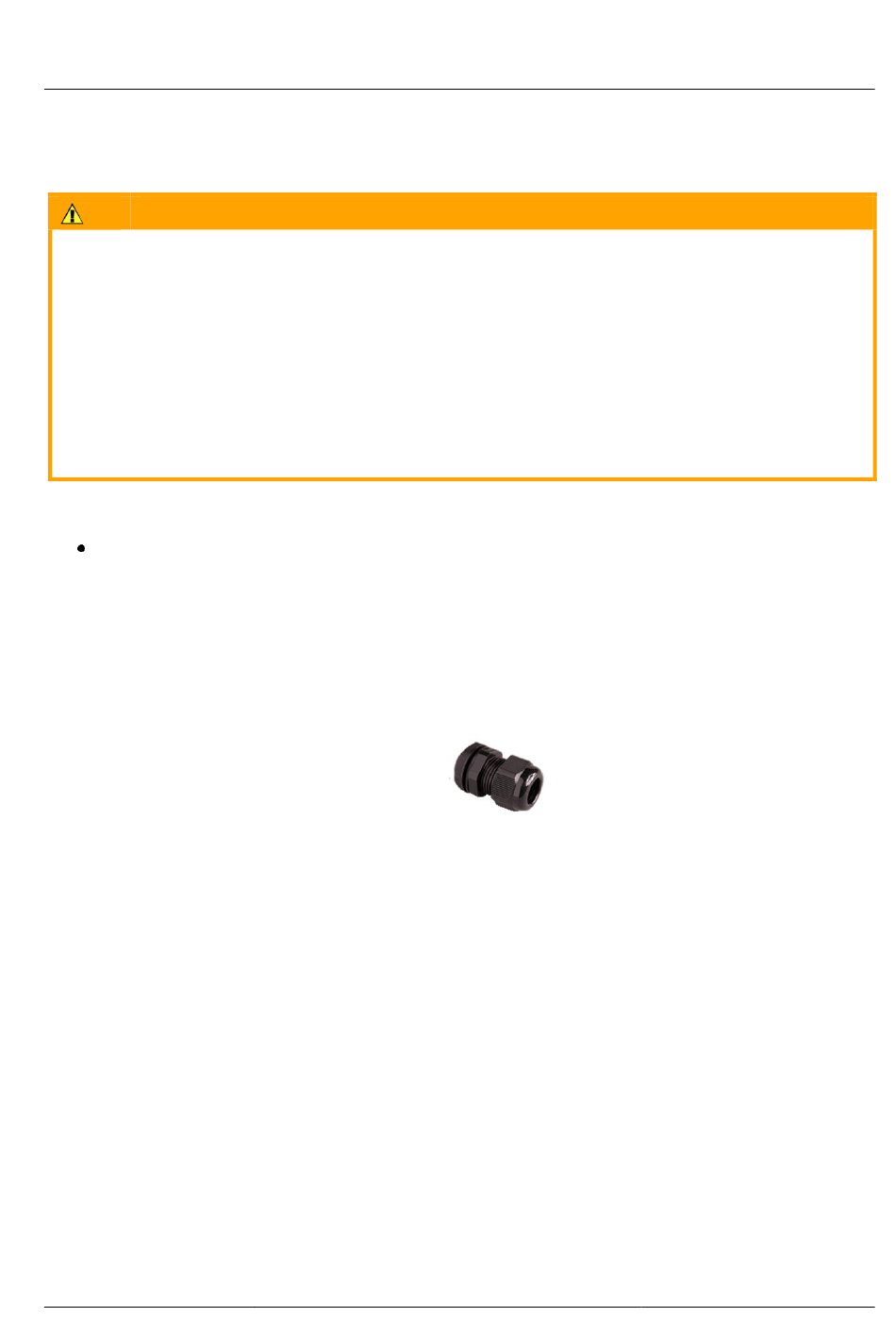

Figure 10: Cable Gland
CF-5212/CF-5222 User and Installation Guide
April 25, 2017
