Quasar™ 4K IR PTZ
CP-6408-21-I
Quick Install Guide
1. Check Contents

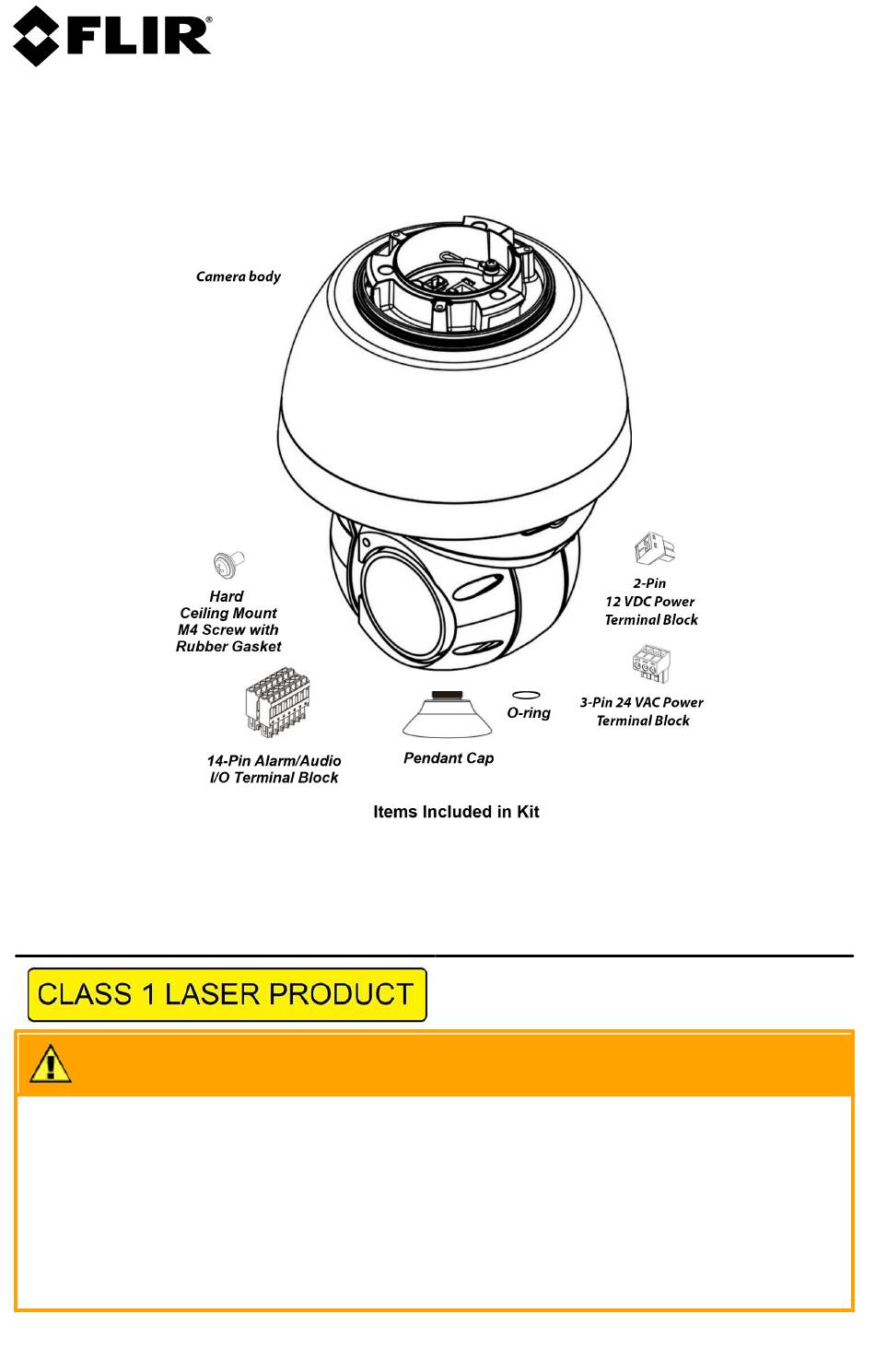

Make sure all of the items above are included in the camera kit.
This camera is a Class 1 Laser Product
that complies with IEC 60825-1:2014.
Caution
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Attention
L'utilisation des commandes ou reglages ou l'execution des procedures autres
que celles specifiees dans les presents exigences peuvent etre la cause d'une
exposition a un rayonnement dangereux.
CP-6408-21-I QIG Rev 110
June 2020
This document does not contain any export-controlled information.
