Configuration and Operation

Events Setup

The Events Setup tab includes the following screens:
 
IO Network Failure Detection
IO
The IO screen is used to control input and output alarms and messages, which are generated when an
event is recognized by the system.
Alarm Switch
The Administrator can select from the following options:
Select Off to disable an alarm.
Select On to enable an alarm (default setting).
Select By Schedule to set a schedule. Then click Please Select to select up to 10 schedules
from the drop-down list that opens. The selected schedules are displayed in the Please Select
text box. To set a schedule, open the
Click SAVE after configuring the settings.
Note:
Actions related to an analytic event that is defined in the
affected by the status of the alarm switch.
58

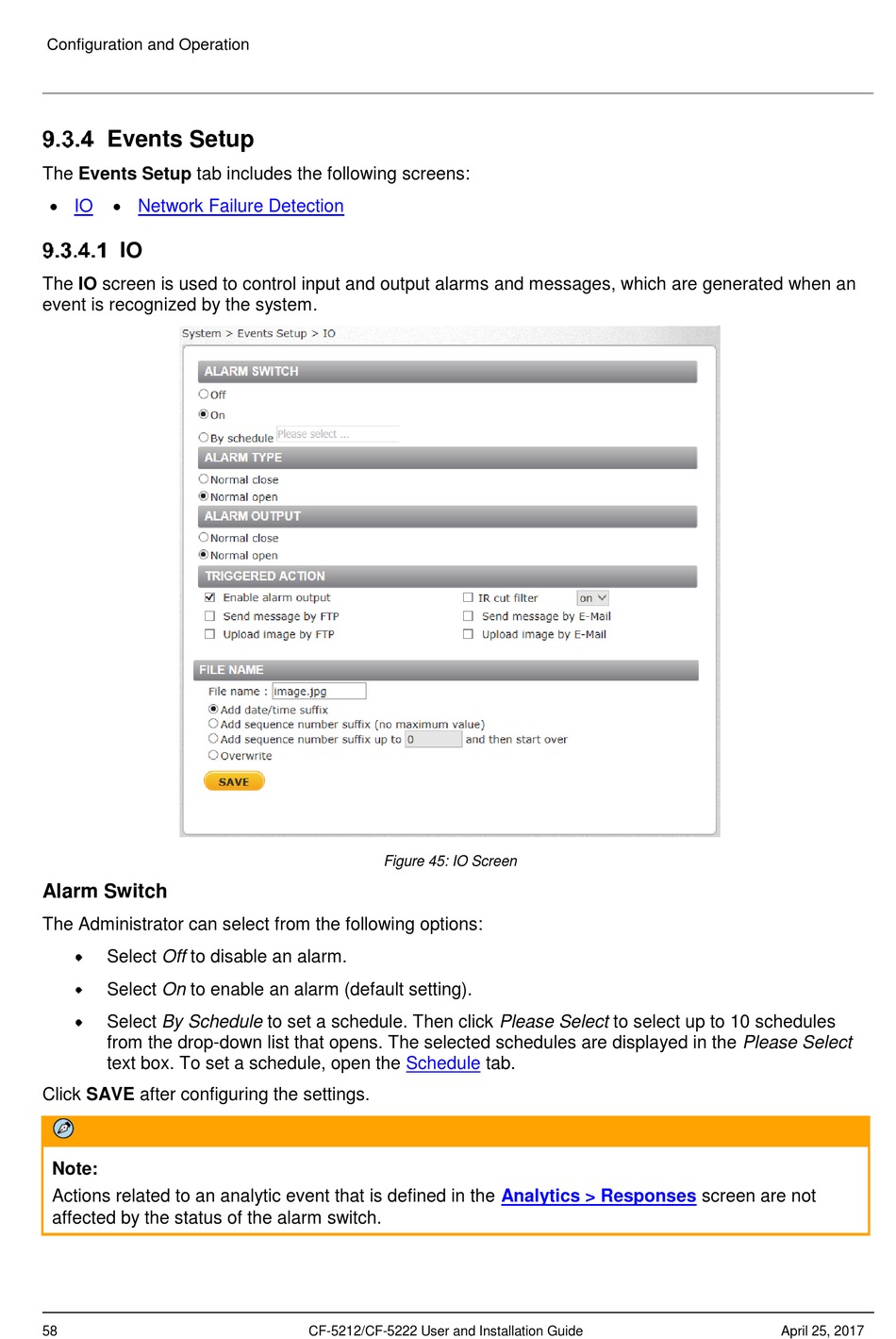

Figure 45: IO Screen

Schedule
CF-5212/CF-5222 User and Installation Guide
tab.
Analytics > Responses screen are not
April 25, 2017
