Appendices
A.7. Connecting Wires to a Spring Clamp Terminal
Block
The unit is delivered with a 3-pin terminal block connector. The terminal block enables you to connect
power wires to the unit.
To connect a wire to the spring clamp terminal block
1. Strip the insulation from the end of each wire that is to be connected to the terminal block.
Approximately 1 cm (2.54") of wire should be exposed.
2. With a small screwdriver, press in and hold the orange spring clamp button next to the female
outlet where the wire will be inserted.
3. Insert the stripped end of the wire into the female outlet.
4. Release the orange spring clamp button.
120

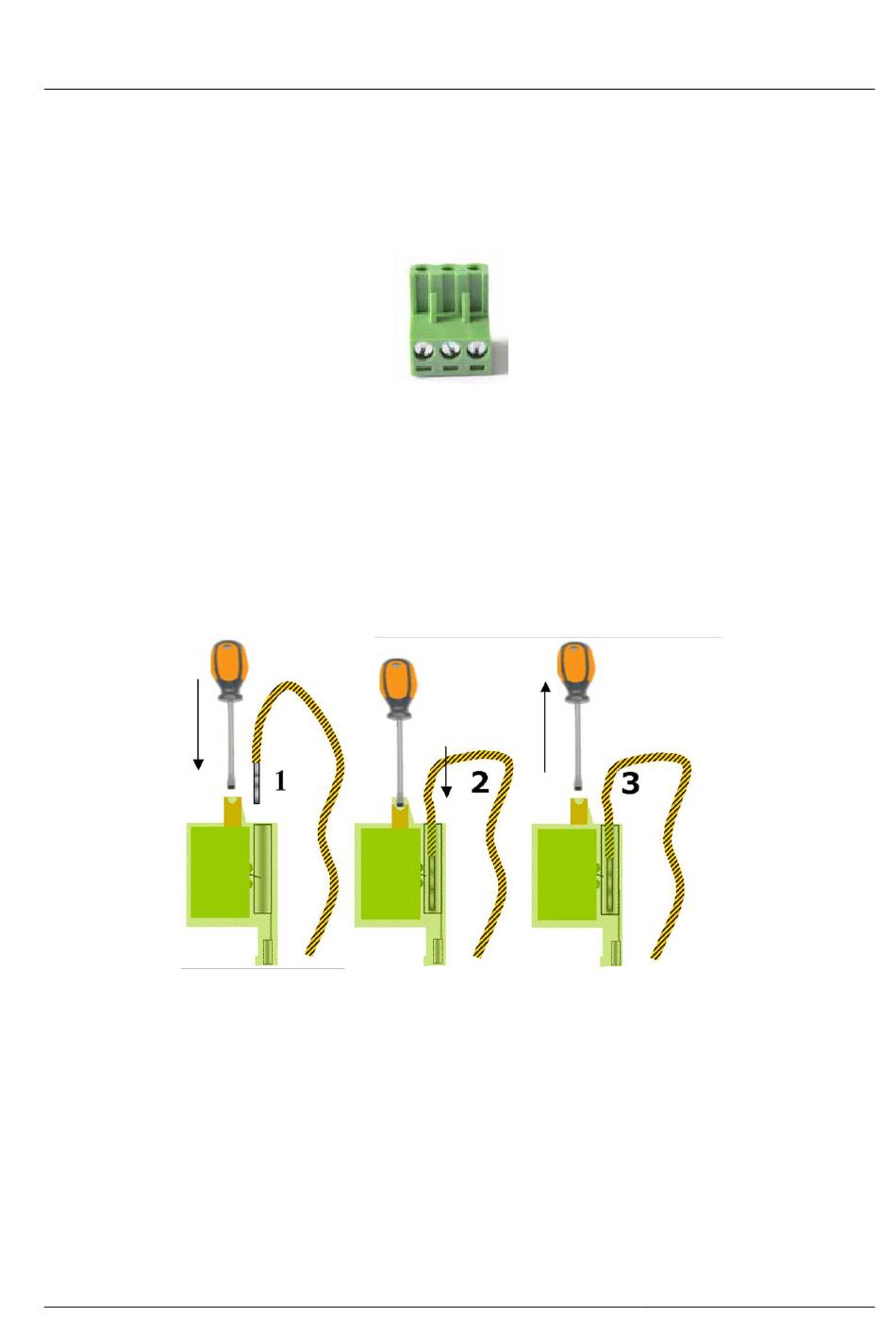

Figure 113: Typical Spring Clamp Terminal Block
Figure 114: Connecting a Wire to a Terminal Block
