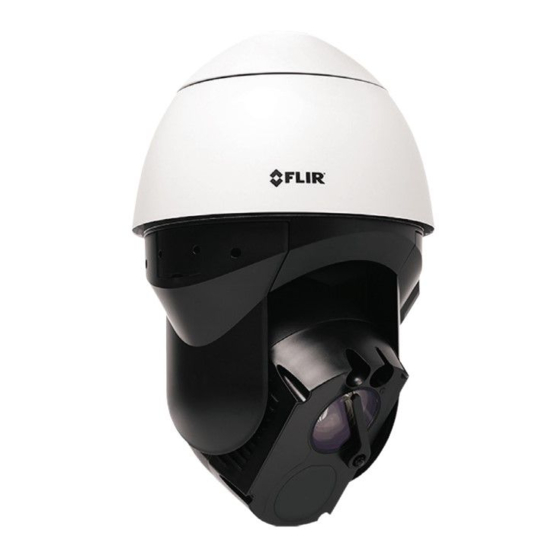

- Page 1 Quasar CP-6408 4K IR PTZ Quick Install Guide Accessing full camera documentation from the Web: Doc Ver: 2b CP-6408-21-I QIG August 2019...
-
Page 2: Getting Started
7. Quick Install Guide (this document) 1.2 Download Documentation and Software Use the QR Code on the front page or navigate directly to the FLIR Camera Catalog, select the Quasar CP-6408 4K IR PTZ, and download the full support documentation, Installation Guide and utility software (DNA). -
Page 3: Install Camera
Properly install the power and network cabling in the mounting hardware so that it is accessible when the camera is mounted. 3.3 Mount Camera Mount the camera. If using mounting accessories, follow all recommended Mounting Instructions in the Installation Guide (see Download Resources List). CP-6408-21-I QIG © 2019 FLIR, Inc... -
Page 4: Connect The Camera
Attach a Cat 5e or Cat 6 cable from the netw ork sw itch to the RJ45 connector for a 10/100/1000 Mbps Ethernet and UPOE UPOE connection. If using UPOE, FLIR recommends using a FLIR CP- POE-60W-XX or equivalent pow er injector. Verify that the UPOE connector LEDs are steady green and flashing yellow . -
Page 5: Configuration Steps
IP address defaults to 192.168.0.250. To manually specify a different IP address for the camera or to configure other networking settings, you can use either the FLIR Discovery Network Assistant (DNA) tool or the camera's web page. - Page 6 Passwords can include the following special characters: | @#~!$&<>+_-.,*?= . Log back in with the new password. The camera's View Settings Home Page opens. CP-6408-21-I QIG © 2019 FLIR, Inc...
- Page 7 Set network parameters such as static or DHCP IP addressing. If using static IP addressing, specify the camera's IP, Netmask , and Gateway. You can also define the Domain Name System (DNS) server settings. CP-6408-21-I QIG © 2019 FLIR, Inc...
- Page 8 Change Video Format. 2. Click Update. Attach to VMS Once you have completed installation and setup and noted the current IP address with DNA, use your VMS Discovery/Attach procedures to attach the camera to your VMS. CP-6408-21-I QIG © 2019 FLIR, Inc...
-
Page 9: Camera Dimensions
Camera Dimensions Page 5.Camera Dimensions CP-6408 4K IR PTZ 6.Contact Information FLIR Systems, Inc. www.flir.com/security 6769 Hollister Ave. Support Website: product.enterprise.support@flir.com Goleta, CA 93117 CP-6408-21-I QIG © 2019 FLIR, Inc...
