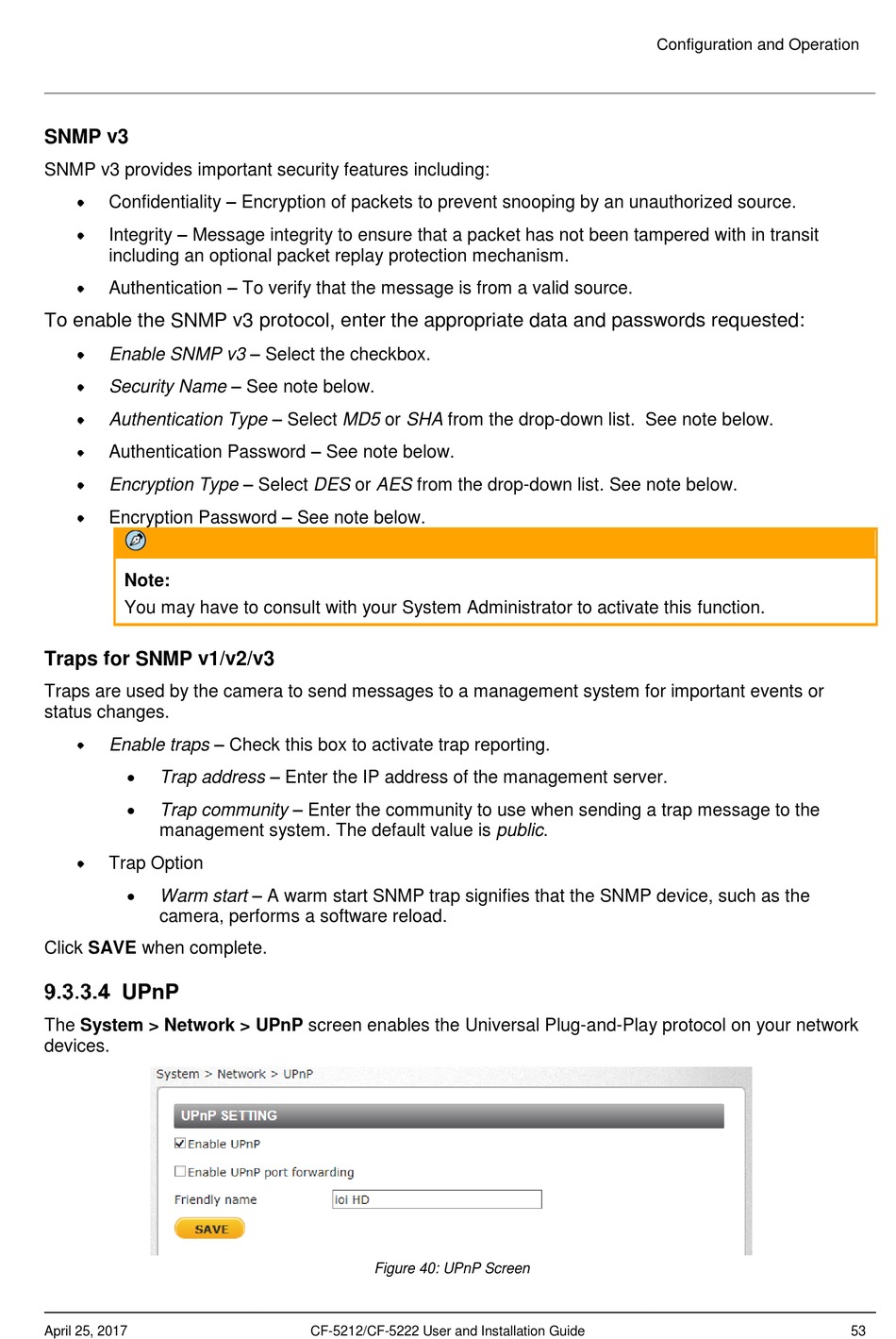

Figure 40: Upnp Screen - FLIR CF-5212 User And Installation Manual

SNMP v3
SNMP v3 provides important security features including:
Confidentiality – Encryption of packets to prevent snooping by an unauthorized source.
Integrity – Message integrity to ensure that a packet has not been tampered with in transit
including an optional packet replay protection mechanism.
Authentication – To verify that the message is from a valid source.
To enable the SNMP v3 protocol, enter the appropriate data and passwords requested:
Enable SNMP v3 – Select the checkbox.
Security Name – See note below.
Authentication Type – Select MD5 or SHA from the drop-down list. See note below.
Authentication Password – See note below.
Encryption Type – Select DES or AES from the drop-down list. See note below.
Encryption Password – See note below.
Note:
You may have to consult with your System Administrator to activate this function.
Traps for SNMP v1/v2/v3
Traps are used by the camera to send messages to a management system for important events or
status changes.
Enable traps – Check this box to activate trap reporting.

Trap address – Enter the IP address of the management server.

Trap community – Enter the community to use when sending a trap message to the
management system. The default value is public.
Trap Option

Warm start – A warm start SNMP trap signifies that the SNMP device, such as the
camera, performs a software reload.
Click SAVE when complete.
UPnP
The System > Network > UPnP screen enables the Universal Plug-and-Play protocol on your network
devices.
April 25, 2017

Figure 40: UPnP Screen

CF-5212/CF-5222 User and Installation Guide
Configuration and Operation
53
