Figure 35: Ip Filter Screen - FLIR CF-5212 User And Installation Manual

IP Filter
The IP filter restricts access to the camera by denying/allowing specific IP addresses. Click the IP
filter tab under the category Security in the sidebar to display the following page.
To enable the IP filter
1. Check the box to enable the IP filter function. Once enabled, the listed IP addresses
(IPv4) are allowed or denied access to the camera.
2. Select Allow or Deny from the drop-down list.
3. Click APPLY to determine the IP filter behavior.
To add or delete an IP address
1. Enter the IP address in the Filtered IP Addresses text box.
2. Click ADD to add a new filtered address. The Filtered IP Addresses box shows the
currently configured IP addresses. Up to 256 IP address entries may be specified.
3. To remove an IP address from the list, select the IP address and then click DELETE.
April 25, 2017

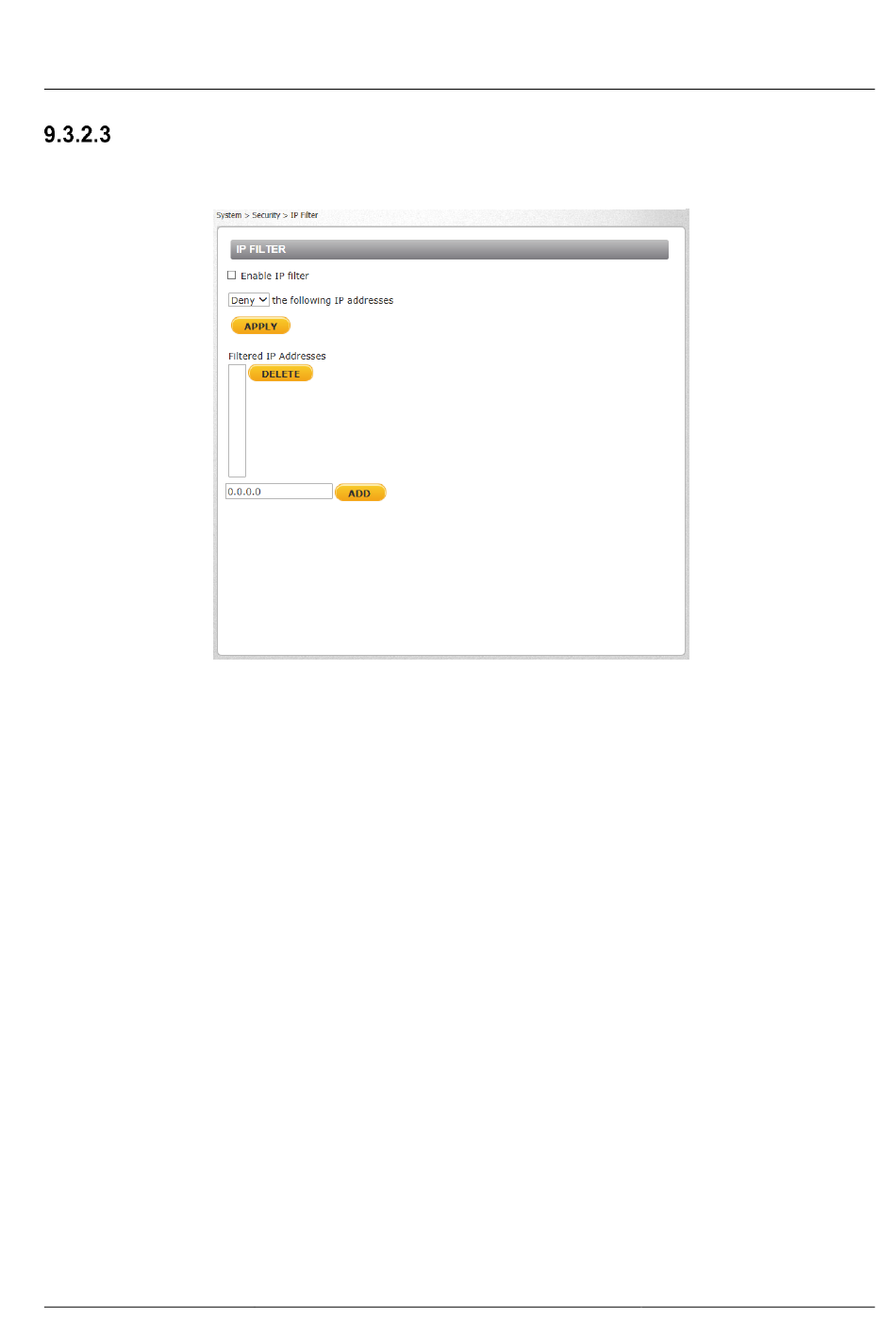

Figure 35: IP Filter Screen

CF-5212/CF-5222 User and Installation Guide
Configuration and Operation
47
