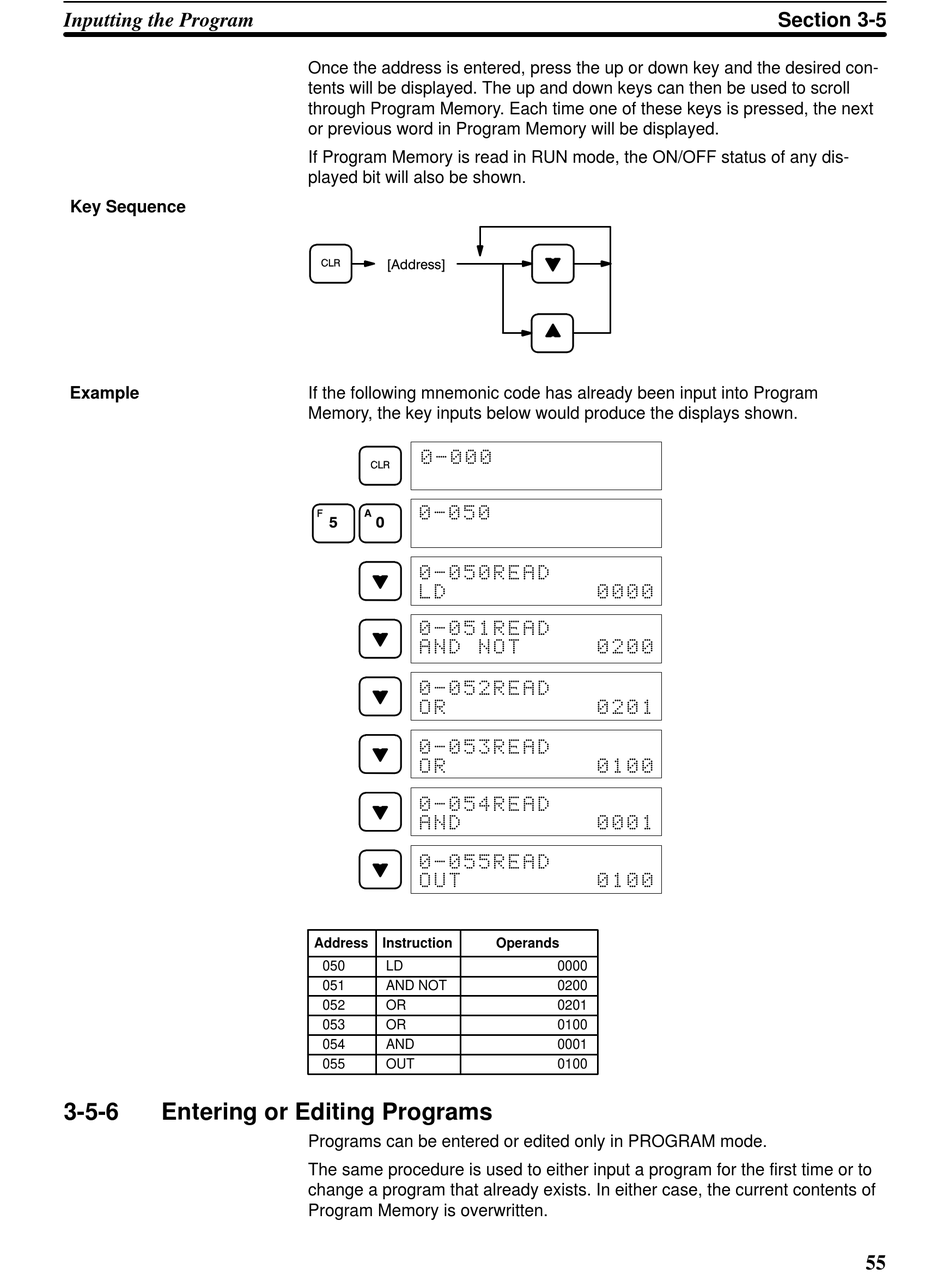

Inputting the Program
Key Sequence
Example
3-5-6

Entering or Editing Programs

Once the address is entered, press the up or down key and the desired con-
tents will be displayed. The up and down keys can then be used to scroll
through Program Memory. Each time one of these keys is pressed, the next
or previous word in Program Memory will be displayed.
If Program Memory is read in RUN mode, the ON/OFF status of any dis-
played bit will also be shown.
If the following mnemonic code has already been input into Program
Memory, the key inputs below would produce the displays shown.
0 000
0 050
0 050READ
LD
0 051READ
AND NOT
0 052READ
OR
0 053READ
OR
0 054READ
AND
0 055READ
OUT
Address Instruction
050 LD
051 AND NOT
052 OR
053 OR
054 AND
055 OUT
Programs can be entered or edited only in PROGRAM mode.
The same procedure is used to either input a program for the first time or to
change a program that already exists. In either case, the current contents of
Program Memory is overwritten.
0000
0200
0201
0100
0001
0100
Operands
0000
0200
0201
0100
0001
0100
